Product Details

FLYCHIP PRODUCT · ENGINEERING · PROCUREMENT

ESP32-WROOM-32E-N16 16MB Wi-Fi Bluetooth MCU Module

A practical product detail, engineering selection and procurement review of ESP32-WROOM-32E-N16, focusing on its 16MB Quad SPI Flash configuration, dual-core ESP32 processing, Wi-Fi and Bluetooth, large firmware architecture, OTA and recovery planning, PCB antenna integration, power integrity, SMT handling and exact-BOM sourcing control.

Manufacturer Espressif Systems
Memory Variant N16 · 16MB Quad SPI Flash
Product Focus Large Firmware + OTA + Local Assets
01

ESP32-WROOM-32E-N16 Product Overview

The ESP32-WROOM-32E-N16 is a wireless MCU module from Espressif Systems that combines dual-core application processing, 2.4GHz Wi-Fi, Bluetooth Classic, Bluetooth Low Energy and 16MB of Quad SPI Flash inside a compact surface-mount module with an integrated PCB antenna.

Within the ESP32-WROOM-32E family, N16 is particularly relevant to products whose non-volatile memory requirement has grown beyond the more common 4MB and 8MB configurations. Its additional Flash can provide useful headroom for larger application images, multiple OTA slots, recovery firmware, embedded web resources, language packs, certificates and local data.

The important engineering distinction is that 16MB Flash does not mean 16MB RAM. The standard N16 configuration does not add PSRAM. If an application is constrained by runtime buffers rather than firmware storage, a PSRAM-equipped configuration such as N16R2 should be evaluated separately.

16MB
Quad SPI Flash
240MHz
Maximum CPU frequency
Wi-Fi + BT
2.4GHz wireless platform
−40~85°C
N16 ambient range
N16
N16 is primarily a Flash-capacity decision

The 16MB configuration improves persistent storage headroom. It does not automatically increase CPU speed or application RAM. That distinction prevents a common module-selection mistake.

02

What Does N16 Mean in ESP32-WROOM-32E-N16?

The complete ordering code should be preserved because ESP32-WROOM-32E is a family rather than a single memory configuration. N4, N8, N16 and R2 variants can share a similar physical appearance while providing different Flash and PSRAM resources.

For the exact ESP32-WROOM-32E-N16 configuration, the module provides 16MB Quad SPI Flash, no PSRAM and an ambient operating range of -40°C to +85°C.

Variant Flash PSRAM Ambient Range Engineering Position
N4 4MB None -40°C to +85°C Smaller firmware and basic OTA needs.
N8 8MB None -40°C to +85°C Balanced firmware and storage capacity.
N16 16MB None -40°C to +85°C Maximum non-PSRAM Flash configuration in the N-series table.
N16R2 16MB 2MB -40°C to +85°C Adds runtime-memory headroom while retaining 16MB Flash.
H8 8MB None -40°C to +105°C Relevant when the higher ambient-temperature class is required.
TEMP
Do not assume a high-temperature H16 equivalent exists

The current WROOM-32E series table lists the 105°C H variants with 4MB and 8MB Flash. N16 remains a -40°C to +85°C configuration, so memory capacity and temperature requirement should be reviewed together.

03

16MB Flash Architecture & Product-Lifetime Planning

Selecting N16 makes the most sense when the engineering team can explain how the extra Flash will be used during the life of the product. Simply selecting the largest memory option without a partition strategy can increase BOM cost without improving real system capability.

For a connected product expected to receive updates for several years, 16MB can provide valuable margin. Networking stacks, security libraries, TLS certificates, local web interfaces, diagnostic tools and feature updates can cause the firmware image to grow considerably over time.

WROOM-32E Non-PSRAM Flash Capacity Comparison
N4
4MB
N8
8MB
N16
16MB

Where the Additional Flash Can Be Useful

Typical Persistent-Memory Workloads
Firmware Large App Application, middleware and networking libraries.
OTA Update Slots Room for current and incoming firmware images.
Recovery Fallback Optional recovery or factory image strategy.
Assets Local Data Web files, language packs, logs and certificates.

Multi-Image OTA Concept

Illustrative 16MB Product Partition Strategy
System
Active App
OTA App
Recovery
Assets / Data
This is an engineering illustration, not a mandatory Espressif partition layout. The real partition table should be created from actual firmware size, OTA policy, filesystem requirements and recovery strategy.
PLAN
Do not wait until production to design the partition table

The value of 16MB Flash is greatest when the firmware, OTA and local-storage architecture is planned early. Changing partitions late in a deployed product can complicate updates and migration.

04

CPU, On-Chip Memory & Module Architecture

ESP32-WROOM-32E uses the classic ESP32 dual-core 32-bit Xtensa LX6 architecture. The processor can operate at up to 240MHz and is paired with on-chip ROM and SRAM plus the module's external Quad SPI Flash.

The WROOM-32E family provides 448KB ROM, 520KB SRAM and 16KB RTC SRAM at the ESP32 platform level. The N16 part number changes the module's Flash capacity, not the fundamental amount of normal working SRAM.

Simplified ESP32-WROOM-32E-N16 Architecture
Sensors / GPIO
External Hardware
Dual-Core LX6
Up to 240MHz
16MB QSPI
Flash
Wi-Fi / Bluetooth
PCB Antenna
CPU
Dual-core 32-bit Xtensa LX6
240MHz
80MHz 160MHz 240MHz
Flash
N16 Quad SPI configuration
16MB
4MB 8MB 16MB
On-Chip SRAM
ESP32 platform resource
520KB
Working memory Separate from Flash
PSRAM
Standard N16 configuration
None
N16 N16R2 = 2MB
RAM
Flash capacity and runtime memory solve different problems

If the product is running out of firmware space, N16 may be a strong solution. If it is running out of heap, framebuffer or large runtime-buffer memory, increasing Flash alone may not solve the problem.

05

Wi-Fi, Bluetooth Classic & BLE

ESP32-WROOM-32E-N16 combines 2.4GHz IEEE 802.11b/g/n Wi-Fi, Bluetooth Classic BR/EDR and Bluetooth Low Energy in the same module. This allows one embedded platform to provide both network connectivity and local wireless interaction.

Wireless Feature Capability Engineering Relevance
Wi-Fi IEEE 802.11b/g/n 2.4GHz WLAN connectivity for IoT and embedded networks.
802.11n Up to 150Mbps Supports higher-throughput embedded networking under applicable conditions.
Bluetooth Classic BR/EDR Useful where legacy Bluetooth profiles remain part of the product.
Bluetooth Low Energy BLE Useful for provisioning, mobile apps and peripheral communication.
Antenna On-board PCB antenna Simplifies the RF BOM but increases the importance of module placement.
5GHz Wi-Fi Not supported Use another platform when 5GHz connectivity is mandatory.
06

GPIO, Peripheral & Boot-Strapping Review

The WROOM-32E platform exposes a rich set of digital and mixed-signal interfaces, including up to 26 GPIO resources together with UART, SPI, I²C, I²S, PWM, ADC, DAC and other ESP32 peripherals.

Pin-count alone is not enough for a reliable design. Several ESP32 signals participate in boot configuration, and the module's integrated Flash also occupies internal chip signals that are not available as normal module I/O.

UART / SPI / I²C

Common interfaces for sensors, displays, controllers and peripheral ICs.

I²S / PWM

Useful for digital audio, timing and embedded-control applications.

ADC / DAC

Provides mixed-signal capability for suitable embedded measurement and control tasks.

Boot Strapping

GPIO0, GPIO2, MTDI, MTDO and GPIO5 require special reset-state consideration.

Why Strapping Pins Matter

ESP32 boot parameters are sampled from selected strapping pins during reset. After reset, these pins can be available for normal I/O use, but external hardware must not force an unintended boot configuration during the sampling period.

This is particularly important for GPIO0 and GPIO2, which participate in selecting normal SPI boot or download mode. External circuits connected to these pins should be evaluated during power-up and reset, not only after the application begins running.

07

Power Integrity, Reset & RF Load Design

The recommended power-supply range for the ESP32-WROOM-32E family is 3.0V to 3.6V, with 3.3V as the typical design point. Espressif specifies that the external power supply should be capable of delivering at least 0.5A.

This does not mean the module continuously draws 500mA. The requirement provides system-level supply capability for changing operating conditions, including RF activity. A weak regulator or high-impedance supply path can cause brownout behavior and intermittent resets.

1
3.3V Regulator

Provide adequate current and transient headroom.

2
Power Routing

Keep supply and ground paths low impedance.

3
Decoupling

Apply local bypassing near the module.

4
RF Validation

Measure the power rail during real Wi-Fi operation.

PWR
Test the complete power path, not only the regulator rating

Connector resistance, PCB traces, inductance and local capacitor placement can all affect the voltage seen at the module. Measure VDD at the module during RF activity.

08

PCB Antenna Placement & RF Integration

ESP32-WROOM-32E uses an integrated PCB antenna. This reduces the number of RF parts on the host board but does not eliminate RF layout work.

Espressif specifically recommends minimizing interference from the base board on the module's antenna performance. Ground planes, copper, displays, batteries, metal frames and enclosure structures near the antenna can affect radiation efficiency.

Module Position

Place the PCB antenna area where the host board causes minimal obstruction.

Copper Keepout

Follow current Espressif PCB layout and antenna-clearance recommendations.

Final Enclosure

Test RF performance with batteries, metalwork and the production enclosure installed.

External Antenna

If the application needs a remote antenna, review an appropriate WROOM-32UE configuration.

RF
Good RF results require mechanical cooperation

The antenna environment is determined by the complete product, not only the schematic. RF placement should be reviewed before the PCB and enclosure are frozen.

09

SMT Assembly, MSL & Production Handling

Production quality depends on more than electrical design. ESP32-WROOM-32E modules are rated MSL 3 and require appropriate moisture control after the moisture-barrier bag has been opened.

Production Item Reference Engineering / Manufacturing Action
MSL Level 3 Apply moisture-sensitive-device handling controls.
Floor Life 168 hours Track exposure after unpacking under specified factory conditions.
Reflow Single reflow Follow the current Espressif reflow recommendation.
Peak Temperature 235°C to 250°C Use the current manufacturer reflow profile when setting the SMT process.
ESD HBM ±2000V Maintain controlled ESD handling.
ESD CDM ±500V Protect the module through receiving, storage and assembly.
  • ✓ Record the time the moisture-barrier packaging is opened.
  • ✓ Bake modules when the applicable storage or floor-life conditions require it.
  • ✓ Verify the latest recommended PCB land pattern before production release.
  • ✓ Avoid ultrasonic equipment exposure that may affect the module crystal.
10

Applications That Benefit from ESP32-WROOM-32E-N16

N16 is most compelling when the product actually uses the additional persistent storage. For very small firmware, a lower-capacity module may provide the same runtime performance.

01

Long-Life IoT Products

Additional Flash provides headroom for years of firmware growth and OTA updates.

02

Embedded Web Interfaces


Flychip Advantage

From Component Sourcing to Production Delivery

Flychip has been providing electronic components to global customers for 20 years. We combine component supply, BOM services, PCB, SMT and PCBA support to help customers accelerate product development and delivery.

R&D Support

Fast sourcing support for prototype development, sample validation and early-stage engineering needs.

BOM Services

Multi-line BOM matching with component supply, alternative suggestions and procurement follow-up.

Mass Production

Stable supply coordination for production preparation, batch delivery and long-term purchasing needs.

Experienced Team

Over 15 years of channel management, quality control, sales management and organization management experience.

ESP32-WROOM-32E-N16 Technical Information

  • Specifications
  • FAQ
  • Hot Sale
  • Related Products

Specifications

Product Attributes
Attribute Value
Manufacturer:
Espressif Systems
Series:
ESP32
Package/Case:
38-SMD Module
Packaging:
Tape & Reel (TR)
Product Status:
Active
Programmable:
Verified
RF Family/Standard:
Bluetooth, WiFi
Protocol:
802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, 2 and 3
Modulation:
CCK, DSSS, OFDM
Frequency:
2.4GHz ~ 2.5GHz
Data Rate:
150Mbps
Power - Output:
20dBm
Sensitivity:
-98dBm
Serial Interfaces:
ADC, GPIO, I2C, I2S, PWM, SDIO, SPI, UART
Antenna Type:
Integrated, Trace
Utilized IC / Part:
ESP32-D0WD-V3
Memory Size:
16MB Flash, 448kB ROM, 536kB SRAM
Voltage - Supply:
3V ~ 3.6V
Current - Receiving:
-
Current - Transmitting:
-
Mounting Type:
Surface Mount
Operating Temperature:
-40°C ~ 85°C

FAQ

1. How to order ESP32-WROOM-32E-N16 on Flychip?

You can submit an RFQ directly on this page. Our sales team will review your quantity, delivery requirements and target price, then reply with a quotation as soon as possible.

2. How does Flychip verify the quality of ESP32-WROOM-32E-N16?

We work with qualified channels including international chip manufacturers and well-known distributors. Our team pays close attention to supplier review, traceability, product condition and quality control.

3. Are the price and inventory of ESP32-WROOM-32E-N16 updated in real time?

Inventory and prices of electronic components may fluctuate frequently. The displayed data is for reference, and the final quotation will be confirmed by our sales team.

4. What payment methods are accepted?

Wire Transfer, PayPal, Alipay, WeChat, Credit Card, Western Union, MoneyGram and Escrow may be supported depending on the order and region.

5. How is shipping arranged?

We can arrange international shipping through DHL, UPS, FedEx, TNT and other logistics channels. Tracking information will be provided after shipment.

6. What is the return or replacement process for ESP32-WROOM-32E-N16?

Please contact our sales team within the specified period if there are quantity differences, wrong items, or clear external defects. The product should remain unused and in its original packaging.

7. Can I request technical support for ESP32-WROOM-32E-N16?

Yes. You can contact us for datasheet, package details, pin information and sourcing assistance related to ESP32-WROOM-32E-N16.

Related Products

ESP32-C3FH4 Espressif Systems
ESP32-C3FH4

Espressif Systems

ESP32-S2FH4 Espressif Systems
ESP32-S2FH4

Espressif Systems

ESP32-S2FN4R2 Espressif Systems
ESP32-S2FN4R2

Espressif Systems

ESP32-C3-MINI-1-N4 Espressif Systems
ESP32-C3-MINI-1-N4

Espressif Systems

ESP32-C3-WROOM-02-N4 Espressif Systems
ESP32-C3-WROOM-02-N4

Espressif Systems

ESP32-C3-MINI-1U-N4 Espressif Systems
ESP32-C3-MINI-1U-N4

Espressif Systems

ESP32-C3-MINI-1U-H4 Espressif Systems
ESP32-C3-MINI-1U-H4

Espressif Systems

ESP32-C3-WROOM-02U-N4 Espressif Systems
ESP32-C3-WROOM-02U-N4

Espressif Systems

ESP32-H2-MINI-1-N4 Espressif Systems
ESP32-H2-MINI-1-N4

Espressif Systems

ESP32-H2-MINI-1-H4 Espressif Systems
ESP32-H2-MINI-1-H4

Espressif Systems

ESP32-MINI-1-N4 Espressif Systems
ESP32-MINI-1-N4

Espressif Systems

ESP32-S2-MINI-2-N4R2 Espressif Systems
ESP32-S2-MINI-2-N4R2

Espressif Systems

ESP32-WROOM-32E-N16 Sourcing & Technical Support

ESP32-WROOM-32E-N16 is supplied by Espressif Systems. This page provides key purchasing information including manufacturer, package, datasheet, stock reference, price reference and RFQ support.

As your reliable partner for semiconductor solutions, Flychip supports customers from research and development to mass production with electronic component supply, BOM sourcing, PCB, SMT and PCBA solutions.

Our sourcing partners include international chip manufacturers and well-known distributors. With rich experience in channel management, quality control and sales management, Flychip helps customers accelerate product development and delivery.

Part Number

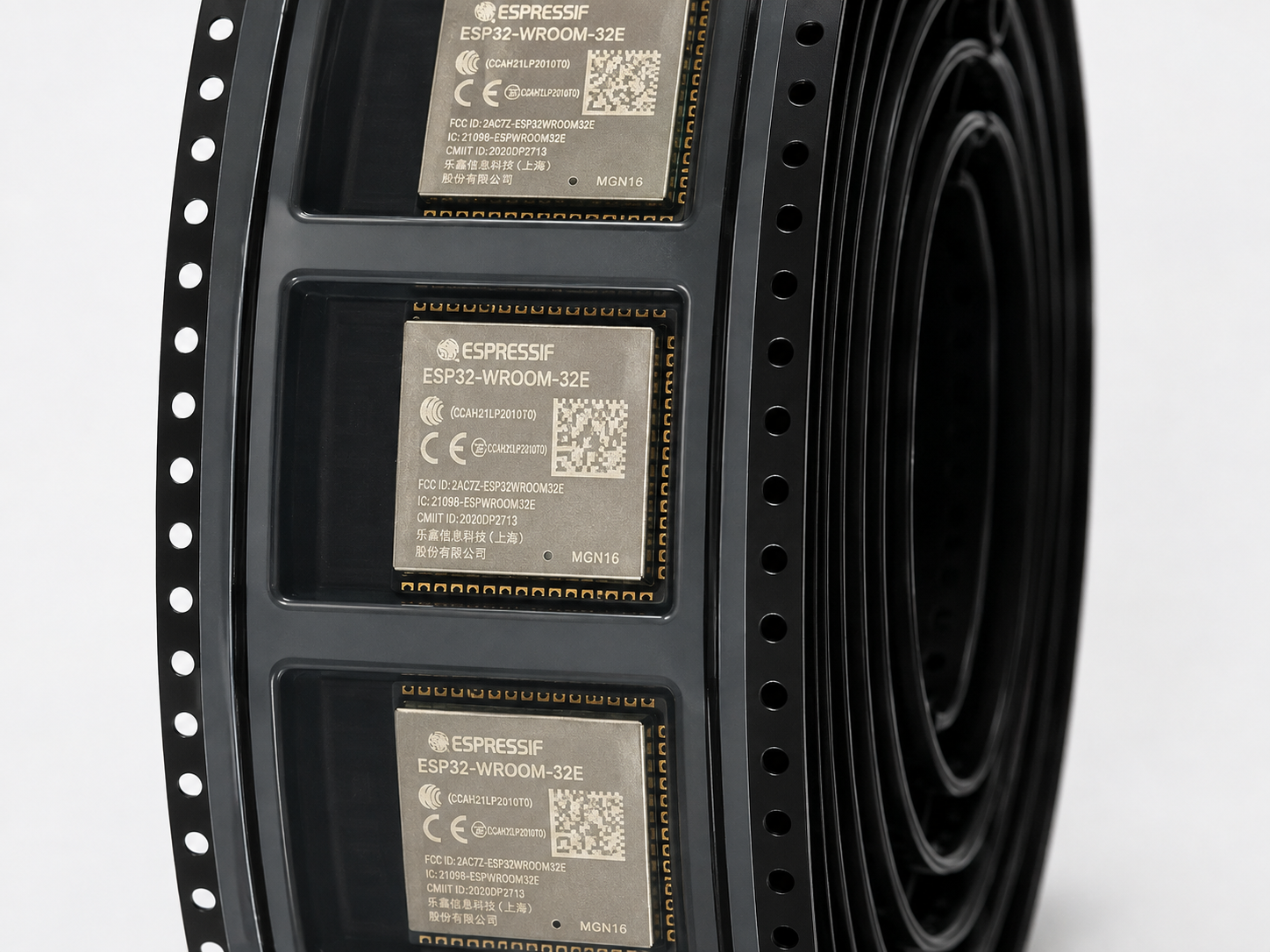

ESP32-WROOM-32E-N16
Manufacturer
Espressif Systems
Package
38-SMD Module
Category
RF Transceiver Modules and Modems

Quick RFQ Send your inquiry and our sales team will respond quickly.

Part Number
Quantity*
Price
Name*
Company*
Email*
Comments
Submitting...
Please wait while we submit your inquiry.

Tips

Please check your information and try again.

Submit BOM or RFQ Phone
+8615914913027
Email
irene@ic-flychip.net
WhatsApp
Flychip WhatsApp QR Code

Scan QR Code

Back to top
