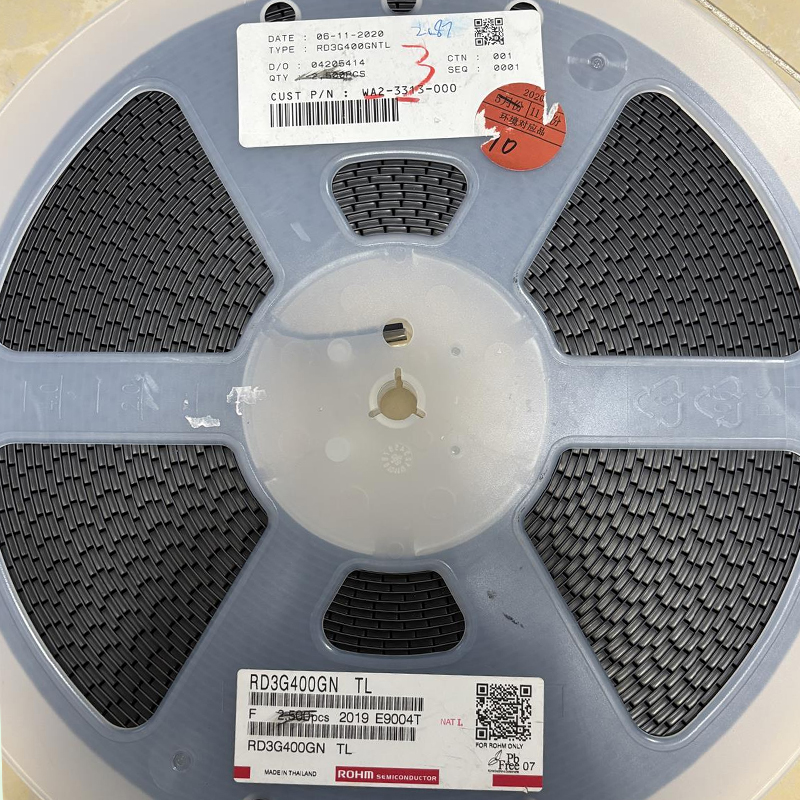

RD3G400GNTL

Procurement of RD3G400GNTL should not be evaluated only by price or available quantity. Because ROHM currently classifies the device as not recommended for new designs, sourcing teams should pay particular attention to lifecycle status, lot consistency, storage history and replacement planning.

RD3G400GNTL is based on ROHM's RD3G400GN N-channel power MOSFET. It combines a 40V drain-source rating with low on-resistance and operation from a 4.5V gate-drive condition, making it suitable for low-voltage switching stages where conduction loss, gate-drive energy and board thermal performance are carefully controlled.

• Check voltage margin: a 40V VDSS rating does not mean the switching node should routinely approach 40V. Include supply tolerance, inductive overshoot and transient conditions.
• Do not design from the 40A headline alone: drain-current capability depends heavily on case temperature, PCB copper, duty cycle and maximum junction temperature.
• Use the correct RDS(on) condition: a 4.5V-driven application should use the 4.5V resistance data rather than the more favorable 10V value.
• Do not use VGS(th) as the drive voltage: threshold voltage indicates the start of conduction, not the gate voltage required for low-loss power switching.
• Calculate conduction loss: a useful first estimate is PCOND ≈ IRMS² × RDS(on), using a resistance appropriate to actual junction temperature.
• Check gate-drive loss: driver demand increases with gate charge, gate voltage and switching frequency. A first-order estimate is PGATE ≈ QG × VGS × fSW.
• Review body-diode operation: in synchronous converters or inductive switching, reverse-recovery current can influence switching loss, ringing and EMI.
• Validate thermal performance on the PCB: TO-252 performance depends strongly on the drain-pad copper area, board stack-up, airflow and surrounding heat sources.

MOSFET selection should be coordinated with the surrounding gate-drive, protection and thermal components. When RD3G400GNTL is used in an existing BOM, FLYCHIP can also review other constrained or lifecycle-sensitive components at the same time.

RD3G400GNTL requires a different purchasing strategy from a mainstream recommended-for-new-design MOSFET. Existing stock may still support maintenance and production programs, but lifecycle status increases the importance of lot control, demand planning and replacement qualification.

For an NRND MOSFET, procurement review should connect technical identity with supply continuity. FLYCHIP evaluates component requirements from channel, quality, order-management and project-support perspectives.

The electrical capability of a low-resistance MOSFET can be limited by PCB and thermal design. For RD3G400GNTL projects, component sourcing should therefore be coordinated with the TO-252 footprint, switching loop, gate routing and heat-spreading requirements.

For RD3G400GNTL, the first decision is whether the project is maintaining an existing qualified design or creating a new product. That lifecycle decision should be made before price and stock alone determine the component choice.

• Confirm the complete MPN: RD3G400GNTL from ROHM Semiconductor.
• Identify project type: existing qualified design, repair, maintenance, redesign or completely new product.
• Confirm electrical fit: 40V rating, load current, RDS(on), VGS drive, gate charge and thermal requirement.
• Confirm lifecycle strategy: for a new design, evaluate a recommended-current ROHM device before release.
• Define sourcing requirements: quantity, target delivery, packing, acceptable lot/date code and traceability scope.
• Approve replacements technically: same package or higher current rating alone is not enough for substitution.
