HD6435328CP10

The H8/532 CPU uses an internal 16-bit architecture and provides eight 16-bit general-purpose registers together with dedicated control registers. The instruction architecture was designed so that addressing mode and operand size could often be selected independently, making the H8 family practical for compiled embedded control software.

From a maintenance perspective, however, the CPU architecture alone is not enough to determine whether a replacement IC will work. The original equipment may operate the H8/532 in single-chip mode or one of several expanded operating modes.

One of the most important details in the HD6435328CP10 ordering family is the difference between HD6435328 and HD6475328.

When Internal ROM Content Matters

• The MCU operates in single-chip mode and executes code from internal ROM.
• Expanded mode is used while internal ROM remains enabled.
• The equipment manufacturer ordered a custom firmware mask.
• A secondary or customer-specific code appears on the original IC.

When the Base MCU May Be More Flexible

In some equipment, the H8/532 can operate with internal ROM disabled and execute program code from external memory. In that architecture, internal mask contents may be less important. This must be verified from the actual circuit, mode pins and firmware architecture rather than assumed from the part number.

H8/532 integrates several peripheral blocks that were useful in real-time control systems of its generation. These functions may be directly tied to timing-sensitive hardware in industrial, instrumentation or communication equipment.

The integrated analog-to-digital converter provides eight analog input channels with 10-bit resolution. It uses successive approximation conversion and includes a sample-and-hold circuit.

When repairing an analog-control board, ADC operation should be tested separately from simple CPU boot. A replacement MCU could execute code correctly yet still fail to meet system requirements if analog input pins, reference voltages or ADC behavior are damaged.

HD6435328CP10 should usually be evaluated differently from a current-production MCU. In most cases the question is not "Is this the best processor for a new design?" but rather "Can this exact device maintain an existing system without hardware or firmware redesign?"

Replacement approval should be based on more than the H8/532 family name. The following checks are particularly important for legacy equipment.

• Confirm the complete original top marking, including any customer or ROM-mask identifier.

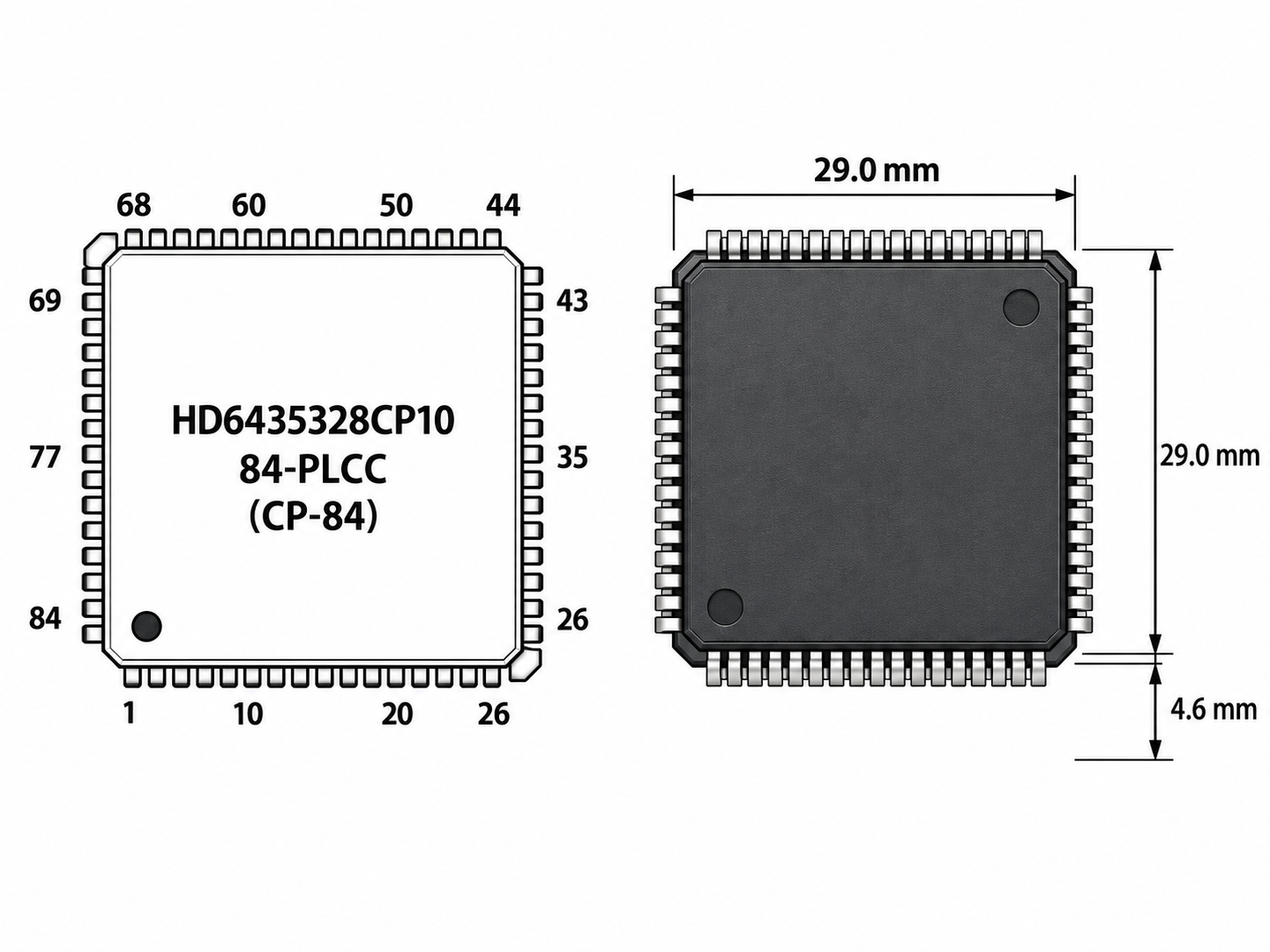

• Confirm CP-84 / 84-pin PLCC package and board orientation.
• Verify the original system clock and timing assumptions.
• Determine whether internal Mask ROM is enabled.
• Identify any external EPROM, ROM, RAM or memory-decoding logic.
• Verify 5V electrical environment and external bus voltage levels.
• Review ADC, SCI, timer and interrupt usage in the equipment.
• Perform an actual board-level functional test before production use.

Legacy semiconductor procurement requires a different quality strategy from current-production franchise distribution. Older stock can include unused old inventory, socket pulls, reclaimed parts, resurfaced packages or devices whose functional history is unknown.

Higher-Risk Orders

For critical maintenance programs, higher-value quantities or safety-relevant equipment, additional inspection can include X-ray comparison, package dimensional inspection, marking comparison, solderability testing and other authenticity procedures appropriate to the purchase risk.

HD6435328CP10 should be treated as a legacy sourcing project. A website inventory number or marketplace listing can indicate potential availability, but it does not establish device history, authorized origin or functional compatibility.

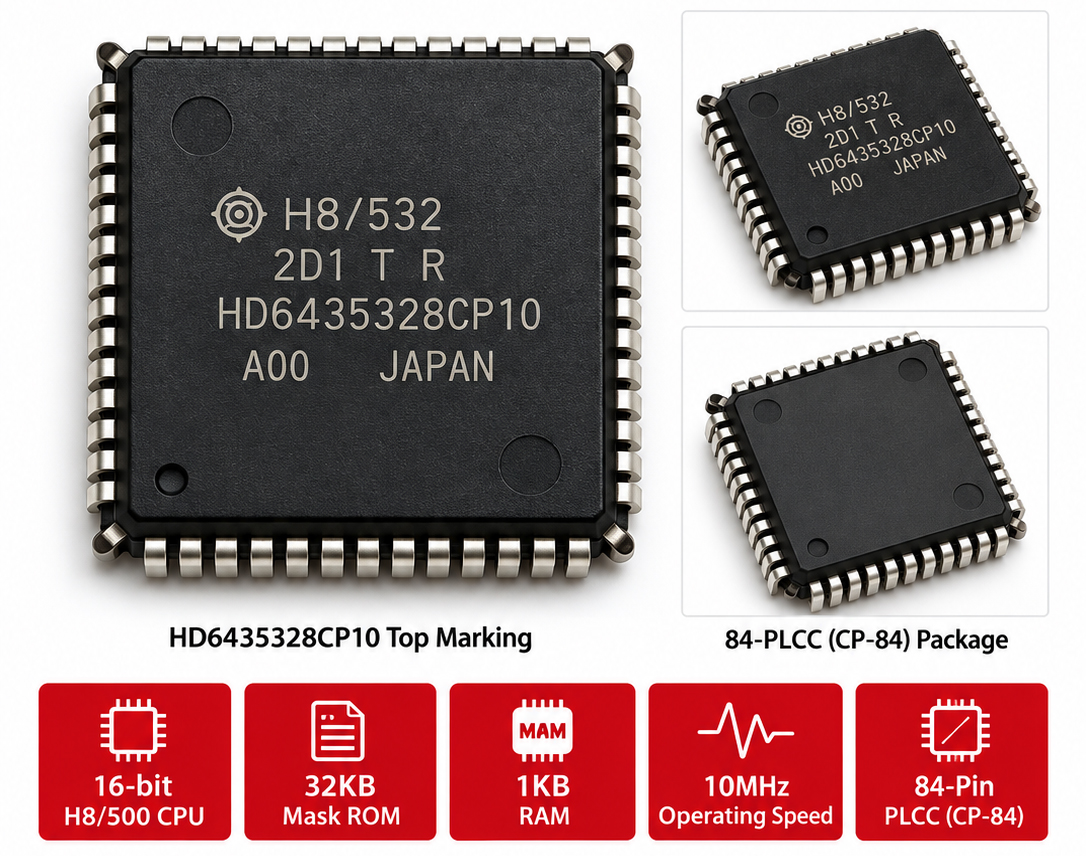

For a legacy Mask-ROM MCU, product photography should show more than the general package. The most useful photographs clearly capture the complete top marking and secondary identification because these details may help distinguish application-specific versions.

For HD6435328CP10, technical compatibility should be resolved before price becomes the main procurement criterion.
