Proximity Sensors - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Sensor Type | Sensing Distance | Output Type | Response Frequency | Shielding | Material - Body | Voltage - Supply | Termination Style | Operating Temperature | Ingress Protection | Indicator |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NBB2-F29-A2INDUCTIVE SEN 2MM PNP |
1,744 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.079" (2mm) | PNP-NC/NO, 4-Wire | - | Unshielded | Polyphenylene Sulfide (PPS) | 4.75V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|
NBB2-12GM50-E2-C-V1INDUCTIVE SEN 2MM PNP PTFE COAT |
3,115 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.079" (2mm) | PNP-NO, 3-Wire | - | Unshielded | Polytetrafluoroethylene (PTFE) | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|
NBB5-18GM50-E2-C-V1INDUCTIVE SEN 5MM PNP PTFE COAT |
3,184 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.197" (5mm) | PNP-NO, 3-Wire | - | Unshielded | Polytetrafluoroethylene (PTFE) | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|

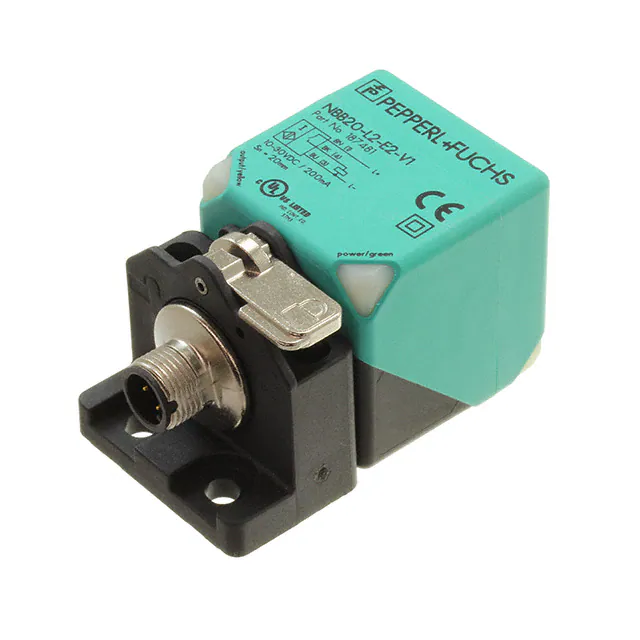

NBB20-L2-E2-V1INDUCTIVE SEN 20MM PNP |
2,684 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.787" (20mm) | PNP-NO, 3-Wire | - | Unshielded | Polyamide (PA) | 10V ~ 30V | Connector | -25°C ~ 85°C | IP69K | LED |
|
NBB4-12GM50-E0-V1INDUCTIVE SEN 4MM NPN |
1,778 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.157" (4mm) | NPN-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|
NBB4-12GM50-A2-V1INDUCTIVE SEN 4MM PNP |
1,990 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.157" (4mm) | PNP-NC/NO, 4-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|
NBB4-12GM50-A0-V1INDUCTIVE SEN 4MM NPN |
4,331 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.157" (4mm) | NPN-NC/NO, 4-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|

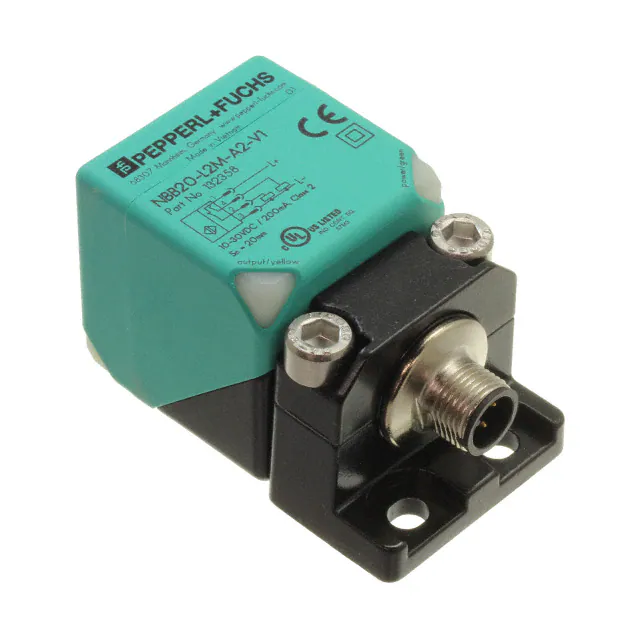

NBB20-L2M-A2-V1INDUCTIVE SEN 20MM PNP |
2,466 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.787" (20mm) | PNP-NC/NO, 4-Wire | - | Unshielded | Polyamide (PA) | 10V ~ 30V | Connector | -25°C ~ 85°C | IP69K | LED |
|
NBN3-8GM30-E0INDUCTIVE SEN 3MM NPN |
3,555 |
|
Datasheet | - | Cylinder, Threaded - M8 | Box | Active | Inductive | 0.118" (3mm) | NPN-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 5V ~ 30V | Cable | -40°C ~ 85°C | IP67 | LED |
|
NRB8-18GM50-E2-C-V1INDUCTIVE SEN 8MM PNP PTFE COAT |
4,336 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.315" (8mm) | PNP-NO, 3-Wire | - | Unshielded | Polytetrafluoroethylene (PTFE) | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
