Proximity Sensors - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Sensor Type | Sensing Distance | Output Type | Response Frequency | Shielding | Material - Body | Voltage - Supply | Termination Style | Operating Temperature | Ingress Protection | Indicator |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

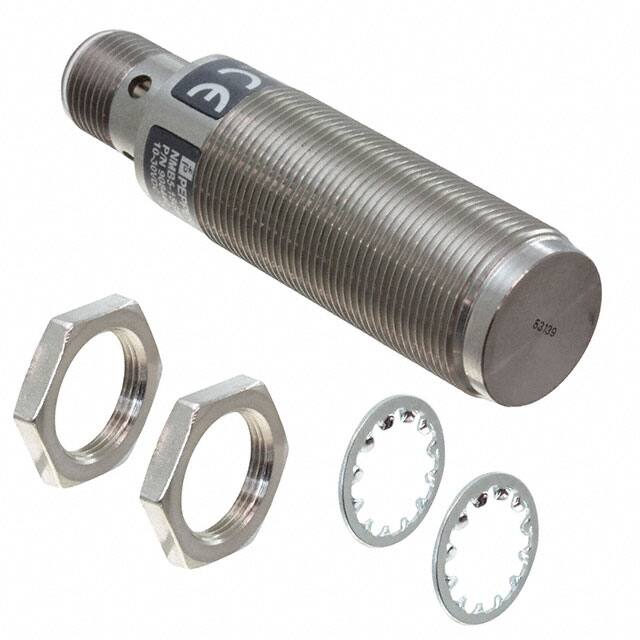

NMB5-18GM65-E2-FE-V1INDUCTIVE SEN 5MM PNP SS |
3,604 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.197" (5mm) | PNP-NO, 3-Wire | - | Unshielded | Stainless Steel | 10V ~ 30V | Connector | -40°C ~ 70°C | IP67, IP68, IP69K | LED |
|
NBB2-8GS40-E2-PURINDUCTIVE SENSOR |
2,481 |
|
Datasheet | - | Cylinder, Threaded - M8 | Box | Active | Inductive | 0.079" (2mm) | PNP-NO, 3-Wire | - | Unshielded | Stainless Steel | 5V ~ 30V | Cable | -40°C ~ 85°C | IP67 | LED |
|
NBB2-8GM50-E0INDUCTIVE SEN 2MM NPN |
3,896 |
|
Datasheet | - | Cylinder, Threaded - M8 | Box | Active | Inductive | 0.079" (2mm) | NPN-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 5V ~ 30V | Cable | -40°C ~ 85°C | IP67 | LED |
|

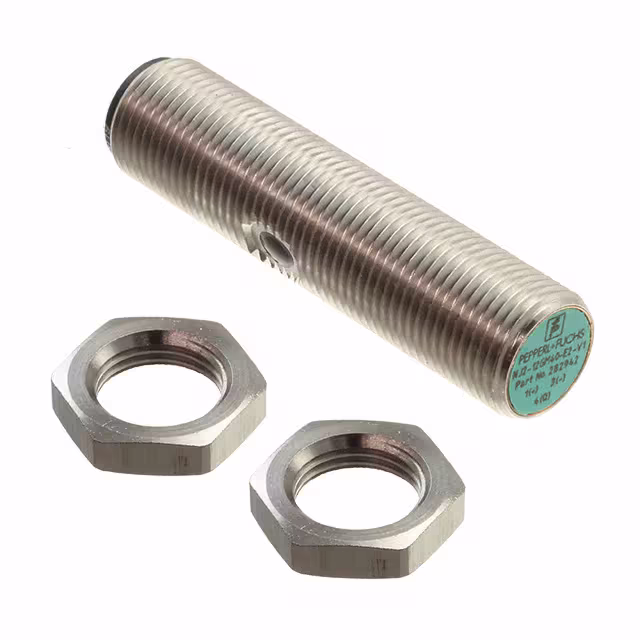

NJ2-12GM40-E2-V1INDUCTIVE SEN 2MM PNP |
2,889 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.079" (2mm) | PNP-NO, 3-Wire | - | Unshielded | Stainless Steel | 10V ~ 60V | Connector | -25°C ~ 70°C | IP67 | LED |
|
NBB10-30GM50-E2 5MINDUCTIVE SEN 10MM PNP |
1,192 |
|
Datasheet | - | Cylinder, Threaded - M30 | Box | Active | Inductive | 0.394" (10mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|
NCB4-12GM40-N0-V1INDUCTIVE SEN 4MM NAMUR |
2,828 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.157" (4mm) | SCR-NC, 2-Wire | - | Unshielded | Stainless Steel | 8.2V | Connector | -25°C ~ 100°C | IP67 | LED |
|

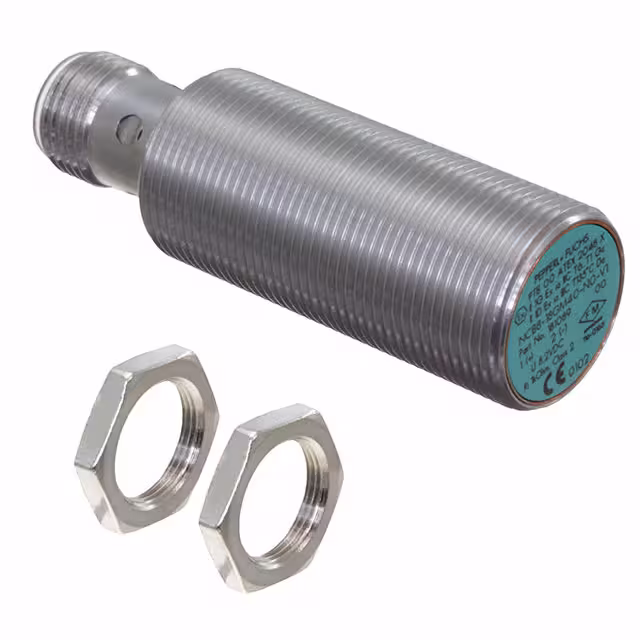

NCB8-18GM40-N0-V1INDUCTIVE SEN 8MM NAMUR |
3,996 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.315" (8mm) | SCR-NC, 2-Wire | - | Unshielded | Stainless Steel | 8.2V | Connector | -25°C ~ 100°C | IP66, IP67 | LED |
|

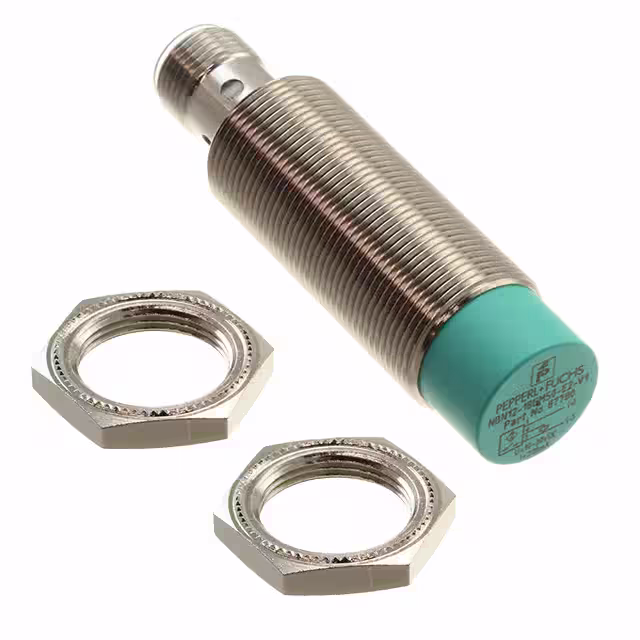

NBN12-18GM50-E2-V1INDUCTIVE SEN 12MM NON-FLUSH PNP |
2,016 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.472" (12mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -40°C ~ 70°C | IP67 | LED |
|
NBN12-18GM35-E2-V1INDUCTIVE SEN 12MM NON-FLUSH PNP |
2,733 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.472" (12mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|

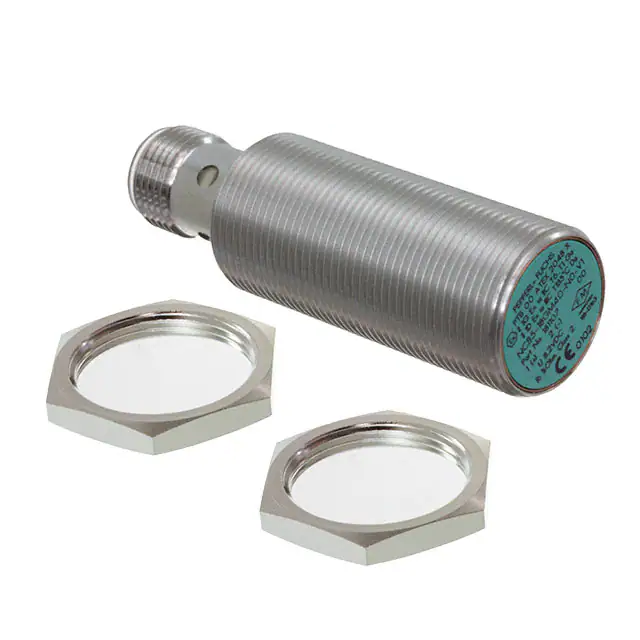

NCB5-18GM40-N0-V1INDUCTIVE SEN 5MM NAMUR |
2,000 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.197" (5mm) | SCR-NC, 2-Wire | - | Unshielded | Stainless Steel | 8.2V | Connector | -25°C ~ 100°C | IP67 | LED |
