Proximity Sensors - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Sensor Type | Sensing Distance | Output Type | Response Frequency | Shielding | Material - Body | Voltage - Supply | Termination Style | Operating Temperature | Ingress Protection | Indicator |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NJ5-11-N-GINDUCTIVE SEN 5MM NAMUR |
1,757 |
|
Datasheet | - | Cylinder, Threaded - M14 | Box | Active | Inductive | 0.197" (5mm) | SCR-NC, 2-Wire | - | Unshielded | Stainless Steel | 8.2V | Cable | -25°C ~ 100°C | IP68 | No Indicator |
|
NBB4-12GM50-E2-V1INDUCTIVE SEN 4MM PNP |
4,449 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.157" (4mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -40°C ~ 70°C | IP67 | LED |
|
NBB5-18GM40-Z0INDUCTIVE SEN 5MM NO |
2,470 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.197" (5mm) | SCR-NO, 2-Wire | - | Unshielded | Nickel-Plated Brass | 5V ~ 60V | Cable | -25°C ~ 70°C | IP67 | LED |
|

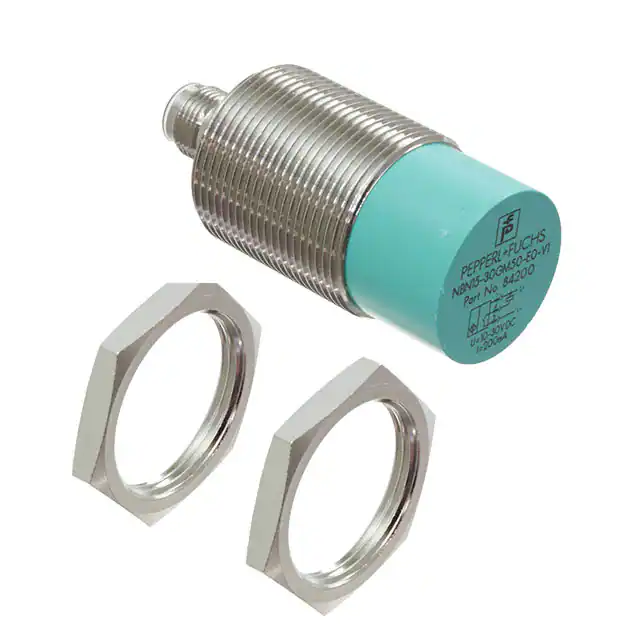

NBN15-30GM50-E0-V1INDUCTIVE SEN 15MM NPN |
4,237 |
|
Datasheet | - | Cylinder, Threaded - M30 | Box | Active | Inductive | 0.591" (15mm) | NPN-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|

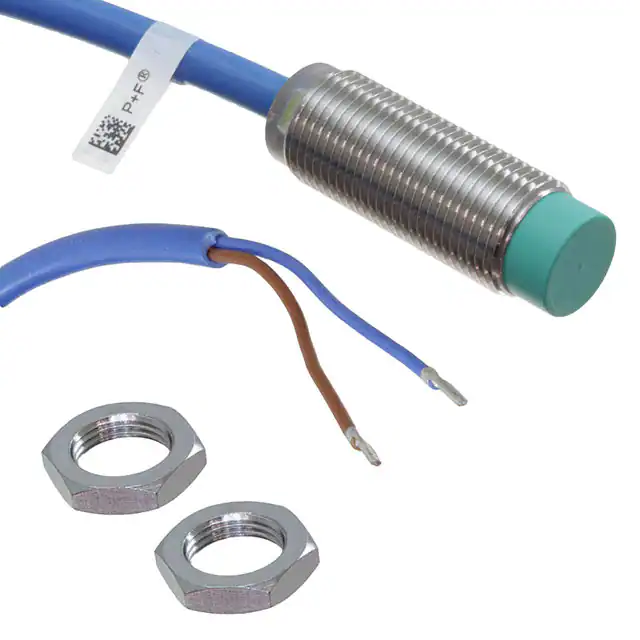

NCN4-12GM35-N0INDUCTIVE SEN 4MM NAMUR |
3,483 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.157" (4mm) | SCR-NC, 2-Wire | - | Unshielded | Stainless Steel | 8.2V | Cable | -25°C ~ 100°C | IP66, IP67 | LED |
|

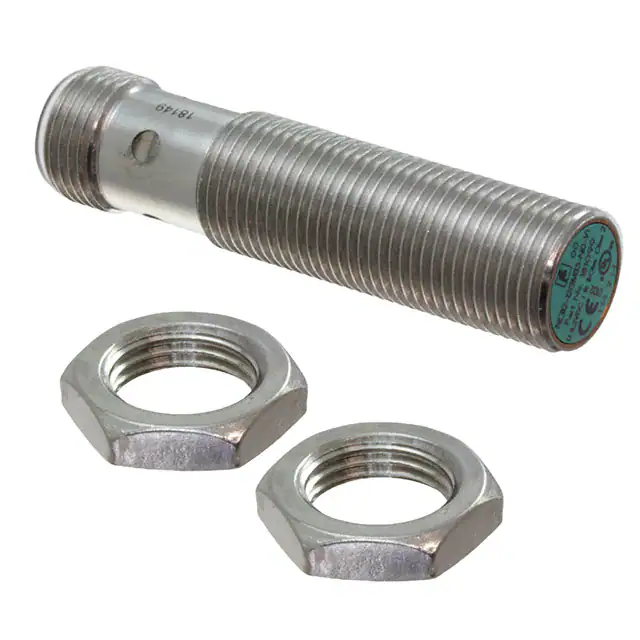

NCB2-12GM35-N0-V1INDUCTIVE SEN 2MM NAMUR |
1,288 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.079" (2mm) | SCR-NC, 2-Wire | - | Unshielded | Stainless Steel | 8.2V | Connector | -25°C ~ 100°C | IP66, IP67 | LED |
|
NBB2-8GM30-E0INDUCTIVE SEN 2MM NPN |
3,931 |
|
Datasheet | - | Cylinder, Threaded - M8 | Box | Active | Inductive | 0.079" (2mm) | NPN-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 5V ~ 30V | Cable | -40°C ~ 85°C | IP67 | LED |
|

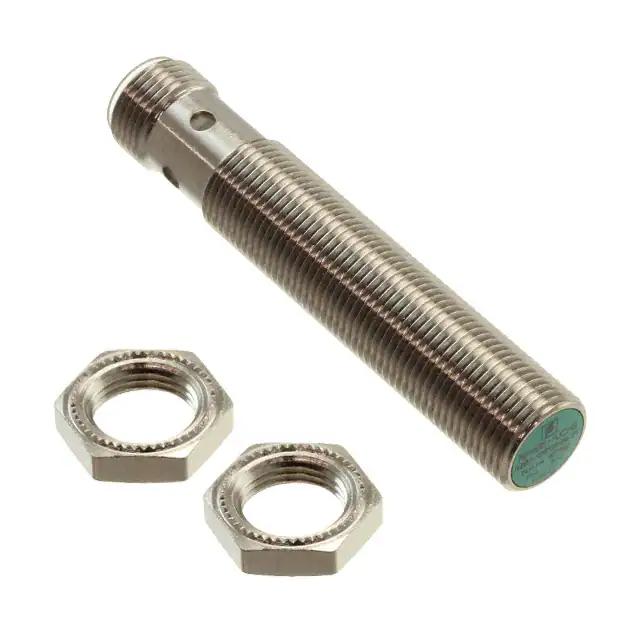

NBB2-8GM40-E0-V3INDUCTIVE SENSOR |
3,196 |
|
Datasheet | - | Cylinder, Threaded - M8 | Box | Active | Inductive | 0.079" (2mm) | NPN-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 5V ~ 30V | Connector | -40°C ~ 85°C | IP67 | LED |
|

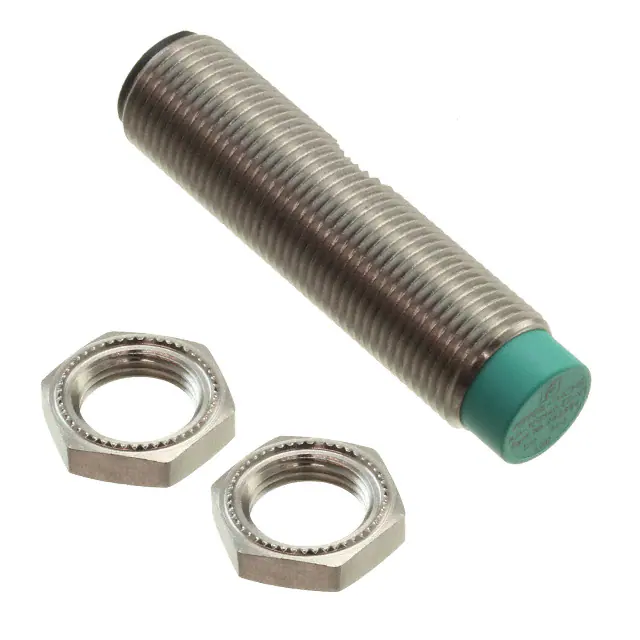

NJ4-12GM40-E2-V1INDUCTIVE SEN 4MM PNP |
1,375 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.157" (4mm) | PNP-NO, 3-Wire | - | Unshielded | Stainless Steel | 10V ~ 60V | Connector | -25°C ~ 70°C | IP67 | LED |
|

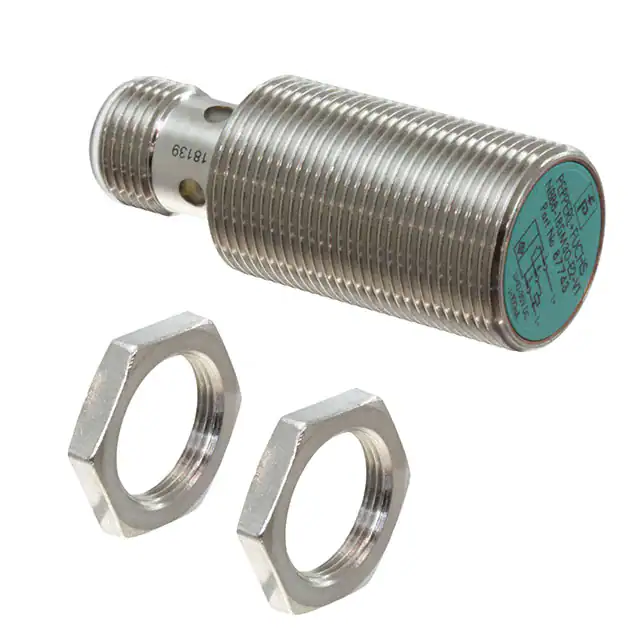

NBB8-18GM30-E2-V1INDUCTIVE SEN 8MM PNP |
3,931 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.315" (8mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -40°C ~ 70°C | IP67 | LED |
