Proximity Sensors - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Sensor Type | Sensing Distance | Output Type | Response Frequency | Shielding | Material - Body | Voltage - Supply | Termination Style | Operating Temperature | Ingress Protection | Indicator |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NBB1.5-5GM25-E2-V3INDUCTIVE SEN 1.5MM PNP |
2,595 |
|
Datasheet | - | Cylinder, Threaded - M5 | Box | Active | Inductive | 0.059" (1.5mm) | PNP-NO, 3-Wire | - | Unshielded | Stainless Steel | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|

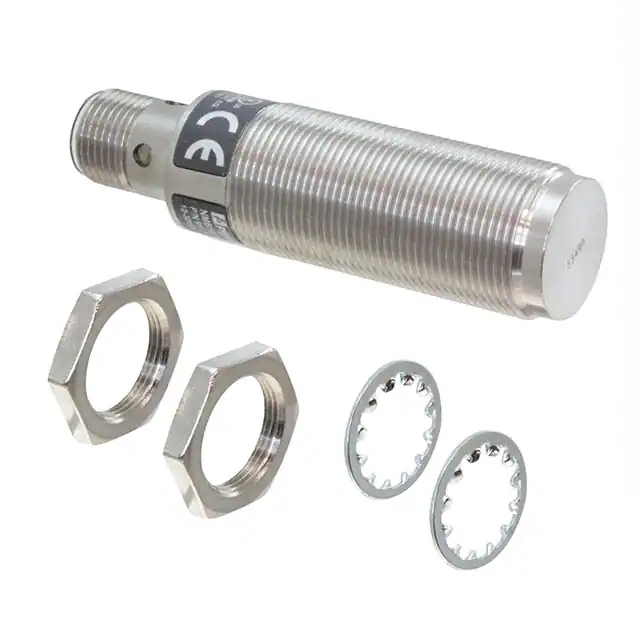

NMB10-18GM65-E2-V1INDUCTIVE SEN 10MM PNP |
3,091 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.394" (10mm) | PNP-NO, 3-Wire | - | Unshielded | Stainless Steel | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|
NMB2-12GM40-Z3-C-FE-300MM-V1INDUCTIVE SEN 2MM NO XYLAN COAT |
4,556 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.079" (2mm) | SCR-NO, 2-Wire | - | Unshielded | Stainless Steel | 6V ~ 30V | Cable with Connector | -25°C ~ 70°C | IP67, IP68, IP69K | LED |
|
CCN15-30GS60-E2-V1CAPACITIVE SEN 15MM PNP |
3,702 |
|
Datasheet | - | Cylinder, Threaded - M30 | Box | Active | Capacitive | 0.591" (15mm) | PNP-NO, 3-Wire | - | Unshielded | Stainless Steel | 10V ~ 60V | Connector | -25°C ~ 70°C | IP67 | LED |
|
CBN15-30GK60-E2CAPACITIVE SEN 15M PNP |
2,100 |
|
Datasheet | - | Cylinder, Threaded - M30 | Box | Active | Capacitive | 0.591" (15mm) | PNP-NO, 3-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|
NMB5-18GM55-Z3-C-FE-300MM-V1IND SEN 5MM PNP XYLAN COATED SS |
1,608 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.197" (5mm) | SCR-NO, 2-Wire | - | Unshielded | Stainless Steel | 6V ~ 30V | Cable with Connector | -25°C ~ 70°C | IP67, IP68, IP69K | LED |
|
NBB4-12GM75-USINDUCTIVE SEN 4MM NO |
4,515 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.157" (4mm) | SCR-NO, 2-Wire | - | Unshielded | Nickel-Plated Brass | 20 VAC ~ 250 VAC, 20 VDC ~ 300 VDC | Cable | -25°C ~ 70°C | IP67 | LED |
|
NBB4-12GM65-US-V12INDUCTIVE SEN 4MM NO |
4,738 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.157" (4mm) | SCR-NO, 2-Wire | - | Unshielded | Nickel-Plated Brass | 20 VAC ~ 250 VAC, 20 VDC ~ 300 VDC | Connector | -25°C ~ 70°C | IP67 | LED |
|

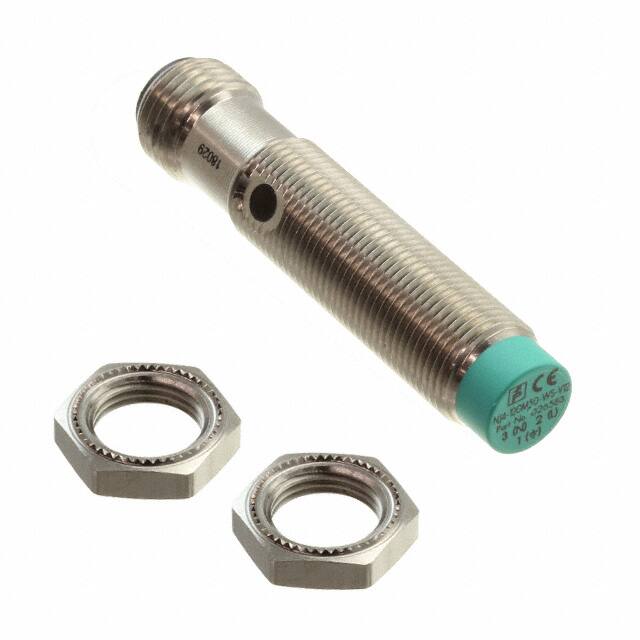

NJ4-12GM50-WS-V12INDUCTIVE SEN 4MM NO |
4,294 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.157" (4mm) | SCR-NO, 2-Wire | - | Unshielded | Stainless Steel | 20V ~ 253V | Connector | -25°C ~ 70°C | IP67 | No Indicator |
|
NMB1.5-8GM23-Z3-C-FE-850MM-V1INDUCTIVE SEN 1.5MM NO XYLAN |
3,401 |
|
Datasheet | - | Cylinder, Threaded - M8 | Box | Active | Inductive | 0.059" (1.5mm) | SCR-NO, 2-Wire | - | Unshielded | Stainless Steel | 6V ~ 30V | Cable with Connector | -25°C ~ 70°C | IP67 | LED |
