Proximity Sensors - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Sensor Type | Sensing Distance | Output Type | Response Frequency | Shielding | Material - Body | Voltage - Supply | Termination Style | Operating Temperature | Ingress Protection | Indicator |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NBN4-12GM50-E2INDUCTIVE SEN 4MM PNP |
2,148 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.157" (4mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|
|
NBN4-12GM50-E0INDUCTIVE SEN 4MM NPN |
3,614 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.157" (4mm) | NPN-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|

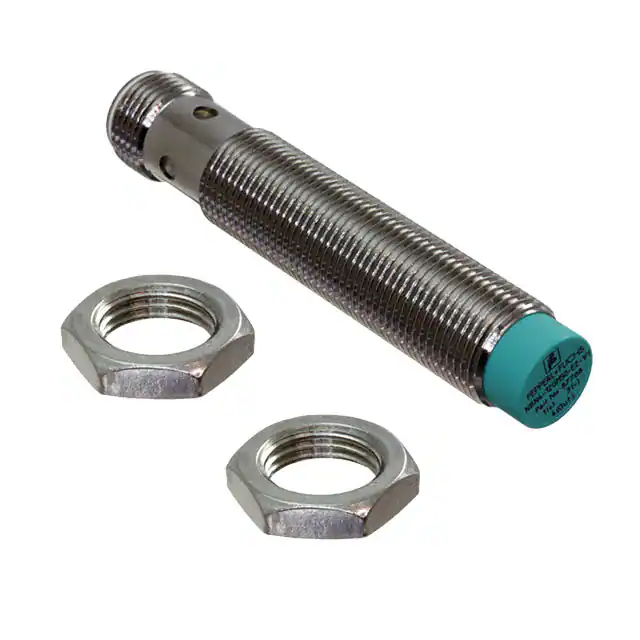

NBN4-12GM50-E2-V1INDUCTIVE SEN 4MM NON-FLUSH PNP |
1,498 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.157" (4mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|

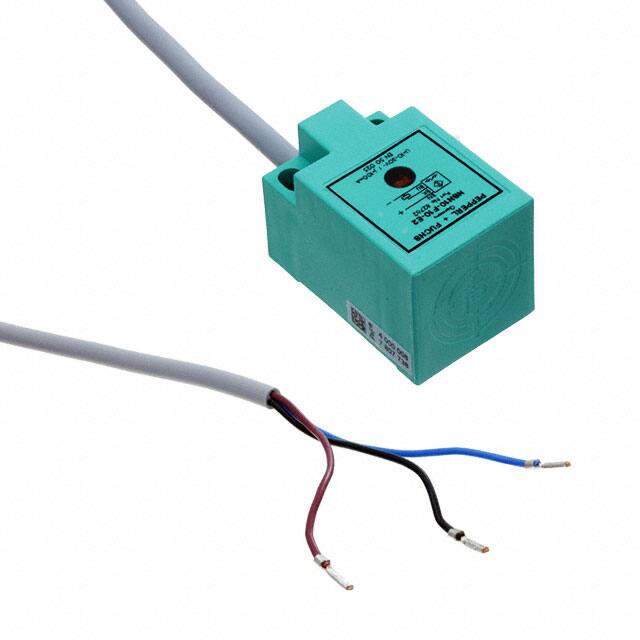

NBN10-F10-E2INDUCTIVE SEN 10MM PNP |
3,647 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.394" (10mm) | PNP-NO, 3-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|
NBN40-L2-E2-V1INDUCTIVE SEN 40MM PNP |
4,744 |
|
Datasheet | - | Module | Box | Active | Inductive | 1.575" (40mm) | PNP-NO, 3-Wire | - | Unshielded | Polyamide (PA) | 10V ~ 30V | Connector | -25°C ~ 85°C | IP69K | LED |
|
NBN3-8GM30-E2INDUCTIVE SEN 3MM PNP |
3,603 |
|
Datasheet | - | Cylinder, Threaded - M8 | Box | Active | Inductive | 0.118" (3mm) | NPN-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 5V ~ 30V | Cable | -40°C ~ 85°C | IP67 | LED |
|
SJ3.5-NINDUCTIVE SLOT SEN 3.5MM NAMUR |
4,438 |
|
Datasheet | - | Module | Box | Active | Inductive | - | SCR-NC, 2-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 8.2V | Cable Leads | -25°C ~ 100°C | IP67 | No Indicator |
|

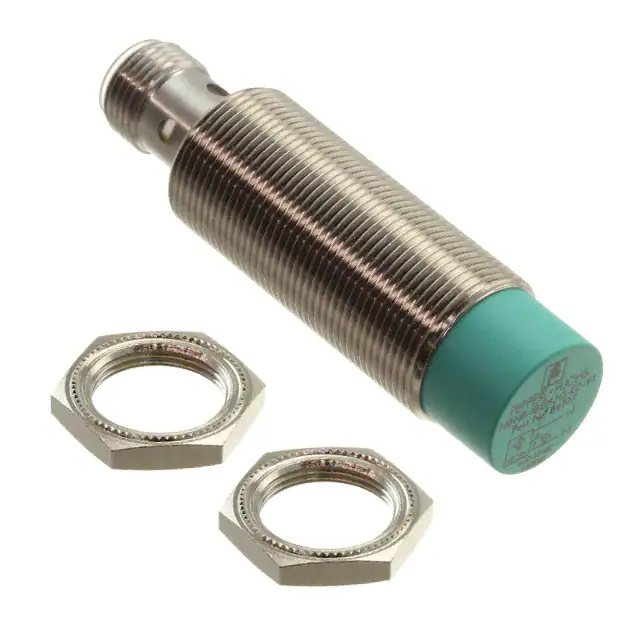

NBN8-18GM50-E2-V1INDUCTIVE SEN 8MM NON-FLUSH PNP |
4,747 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.315" (8mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -40°C ~ 70°C | IP67 | LED |
|

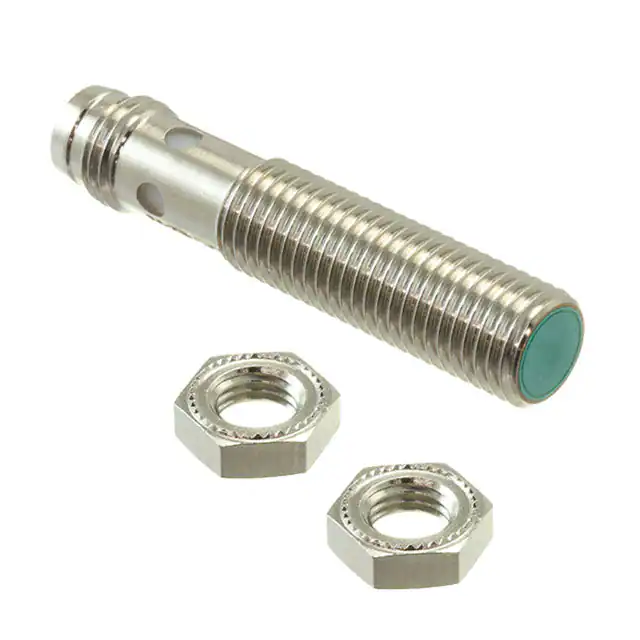

NBB2-8GM25-E2-V3INDUCTIVE SEN 2MM PNP |
3,583 |
|
Datasheet | - | Cylinder, Threaded - M8 | Box | Active | Inductive | 0.079" (2mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 5V ~ 30V | Connector | -40°C ~ 85°C | IP67 | LED |
|
NBB20-L2-A2-V1INDUCTIVE SEN 22MM PNP |
3,203 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.787" (20mm) | PNP-NC/NO, 4-Wire | - | Unshielded | Polyamide (PA) | 10V ~ 30V | Connector | -25°C ~ 85°C | IP69K | LED |
