Proximity Sensors - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Sensor Type | Sensing Distance | Output Type | Response Frequency | Shielding | Material - Body | Voltage - Supply | Termination Style | Operating Temperature | Ingress Protection | Indicator |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NBB5-18GM60-WSINDUCTIVE SEN 5MM NO |
3,088 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.197" (5mm) | SCR-NO, 2-Wire | - | Unshielded | Nickel-Plated Brass | 20V ~ 253V | Cable | -25°C ~ 70°C | IP67 | LED |
|

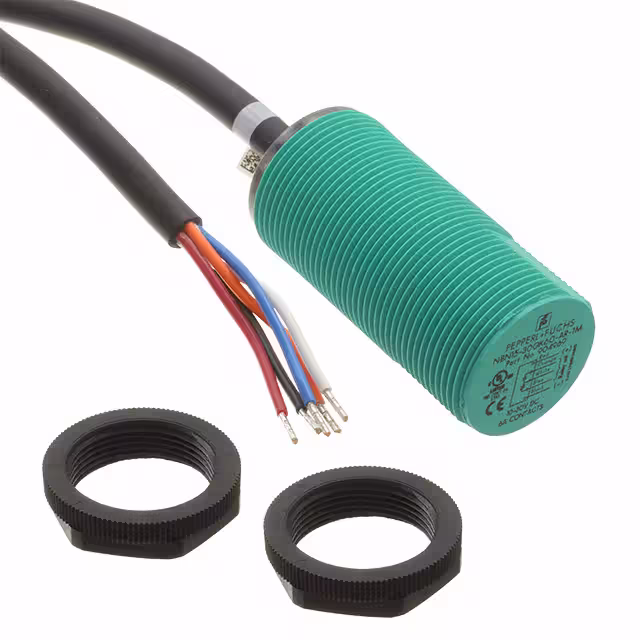

NBN15-30GK60-AR-1MINDUCTIVE SEN 15MM SPDT |
3,310 |
|
Datasheet | - | Cylinder, Threaded - M30 | Box | Active | Inductive | 0.591" (15mm) | Relay | - | Unshielded | Polybutylene Terephthalate (PBT) | 10V ~ 30V | Cable | -40°C ~ 70°C | IP68 | LED |
|
CJ4-12GK-NCAPACITIVE SEN 4MM NAMUR |
2,174 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Capacitive | 0.157" (4mm) | SCR-NO, 2-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 7V ~ 12V | Cable | -25°C ~ 70°C | IP68 | No Indicator |
|

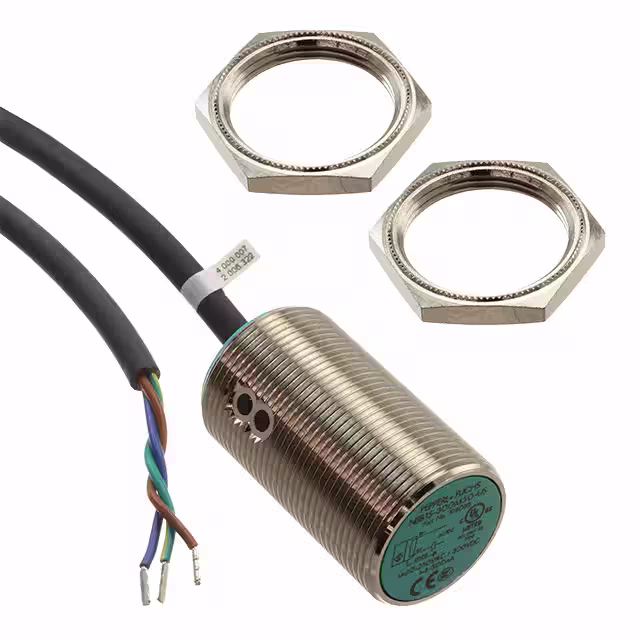

NBB15-30GM50-USINDUCTIVE SEN 15MM NO |
4,850 |
|
Datasheet | - | Cylinder, Threaded - M30 | Box | Active | Inductive | 0.591" (15mm) | SCR-NO, 2-Wire | - | Unshielded | Nickel-Plated Brass | 20 VAC ~ 250 VAC, 20 VDC ~ 300 VDC | Cable | -25°C ~ 70°C | IP67 | LED |
|
UB1000-18GM75-E5-V15ULTRASONIC SEN 70-1000MM PNP |
2,592 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Ultrasonic | 2.756" ~ 39.370" (70mm ~ 1000mm) | PNP-NC/NO, 4-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|

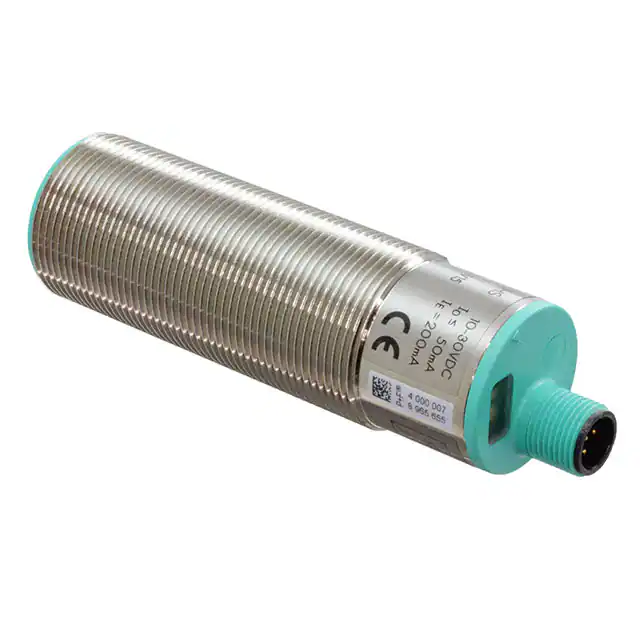

UB2000-30GM-E5-V15ULTRASONIC SEN 80-2000MM PNP |
1,744 |
|
Datasheet | - | Cylinder, Threaded - M30 | Box | Active | Ultrasonic | 3.150" ~ 78.740" (80mm ~ 2000mm) | PNP-NC/NO, 5-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -25°C ~ 70°C | IP65 | LED |
|

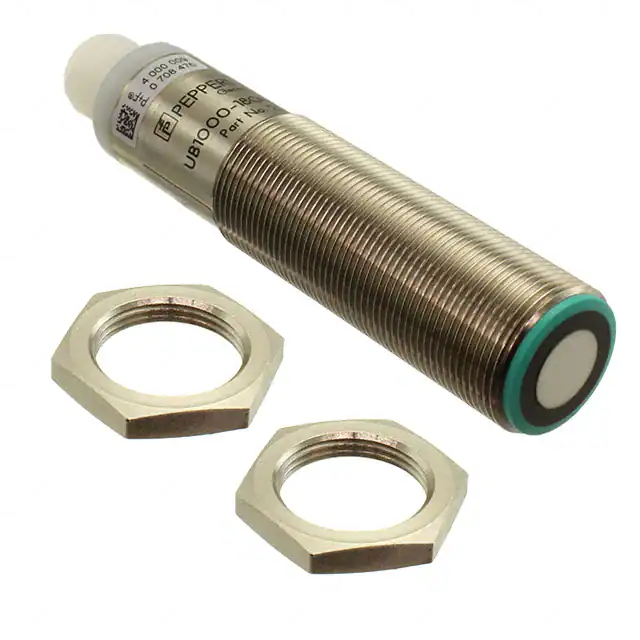

UB1000-18GM75-U-V15ULTRASONIC SEN 70-1000MM ANALOG |
3,363 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Ultrasonic | 2.756" ~ 39.370" (70mm ~ 1000mm) | Analog Voltage | - | Unshielded | Nickel-Plated Brass | 15V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|
NJ1.5-PD-US-1.250-V93INDUCTIVE SEN CYLINDER POSITION |
3,526 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.059" (1.5mm) | SCR-NO, 3-Wire | - | Unshielded | Zinc Die-Cast | 20V ~ 250V | Connector | -25°C ~ 70°C | IP67 | LED |
|

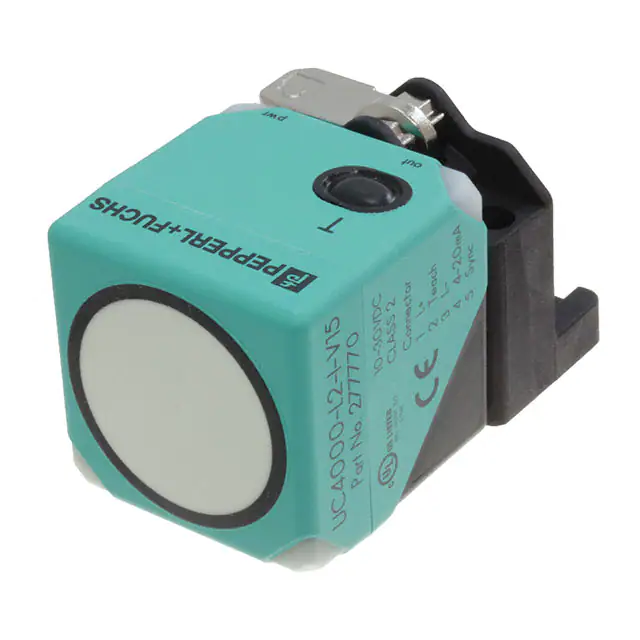

UC4000-L2-I-V15ULTRASONIC SEN 200-4000MM ANALOG |
1,202 |
|
Datasheet | - | Module | Box | Active | Ultrasonic | 7.874" ~ 157.480" (200mm ~ 4000mm) | Analog Current | - | Unshielded | Polyamide (PA), Glass Filled | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|

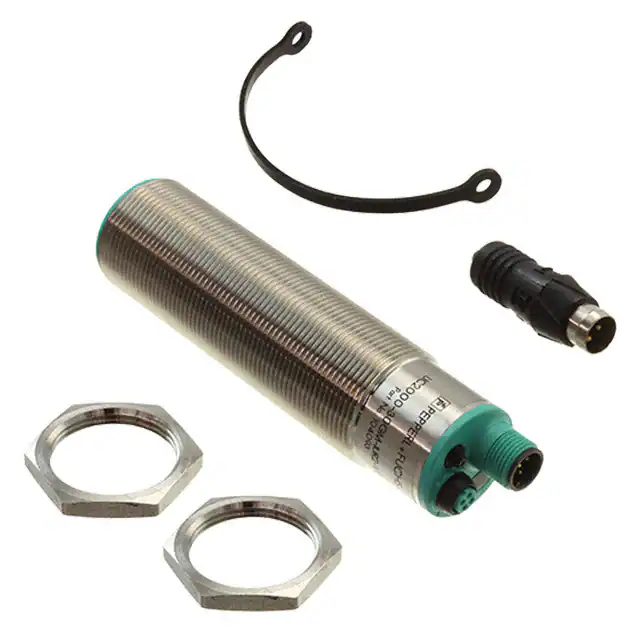

UC2000-30GM-IUR2-V15ULTRASONIC SEN 80-2000MM ANALOG |
1,998 |
|
Datasheet | - | Cylinder, Threaded - M30 | Box | Active | Ultrasonic | 3.150" ~ 78.740" (80mm ~ 2000mm) | Analog Current and Voltage | - | Unshielded | Stainless Steel | 10V ~ 30V | Connector | -25°C ~ 70°C | IP65 | LED |
