Proximity Sensors - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Sensor Type | Sensing Distance | Output Type | Response Frequency | Shielding | Material - Body | Voltage - Supply | Termination Style | Operating Temperature | Ingress Protection | Indicator |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

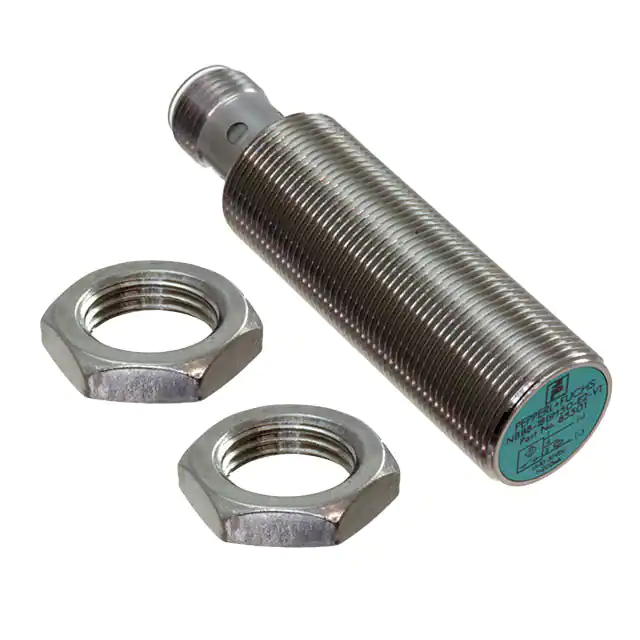

NBB8-18GM50-E2-V1INDUCTIVE SEN 8MM PNP |
1,794 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.315" (8mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -40°C ~ 70°C | IP67 | LED |
|
NBB8-18GM50-E0INDUCTIVE SEN 8MM NPN |
4,713 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.315" (8mm) | NPN-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|
NCB5-18GM40-N0INDUCTIVE SEN 5MM NAMUR |
2,183 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.197" (5mm) | SCR-NC, 2-Wire | - | Unshielded | Stainless Steel | 8.2V | Cable | -25°C ~ 100°C | IP66, IP67 | LED |
|
NJ2-12GM-N-V1INDUCTIVE SEN 2MM NAMUR |
1,789 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.079" (2mm) | SCR-NC, 2-Wire | - | Unshielded | Stainless Steel | 8.2V | Connector | -25°C ~ 100°C | IP67 | No Indicator |
|
CBN10-F46-E0CAPACITIVE SEN 10MM NPN |
2,600 |
|
Datasheet | - | Flange Mount | Box | Active | Capacitive | 0.394" (10mm) | NPN-NO, 3-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|
|
CBN10-F46-E2CAPACITIVE SEN 10MM PNP |
3,436 |
|
Datasheet | - | Flange Mount | Box | Active | Capacitive | 0.394" (10mm) | PNP-NO, 3-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|

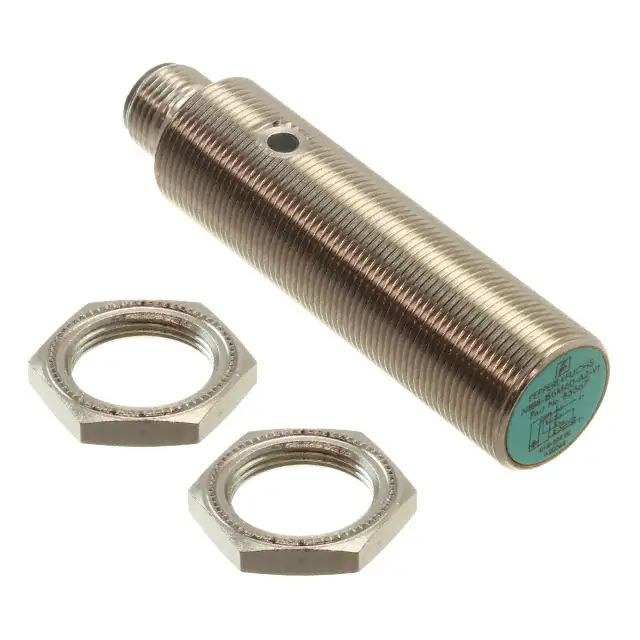

NBB8-18GM60-A2-V1INDUCTIVE SEN 8MM PNP |
1,399 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.315" (8mm) | PNP-NC/NO, 4-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -40°C ~ 70°C | IP67 | LED |
|

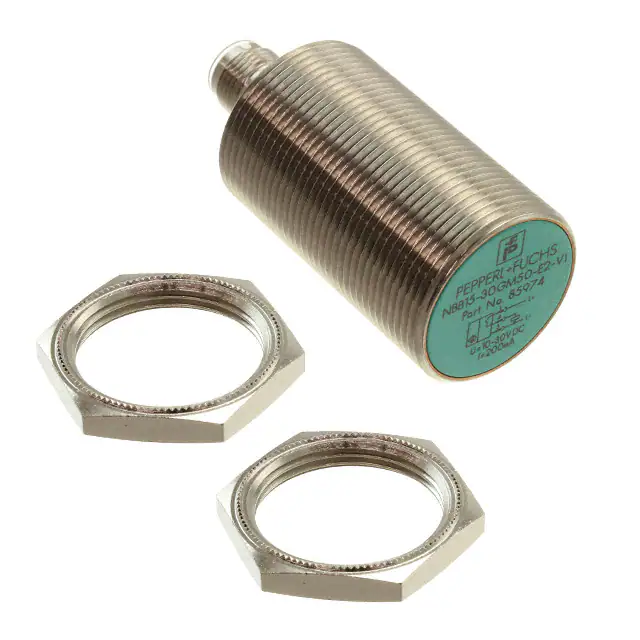

NBB15-30GM50-E2-V1INDUCTIVE SEN 15MM PNP |
2,742 |
|
Datasheet | - | Cylinder, Threaded - M30 | Box | Active | Inductive | 0.591" (15mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -40°C ~ 70°C | IP67 | LED |
|

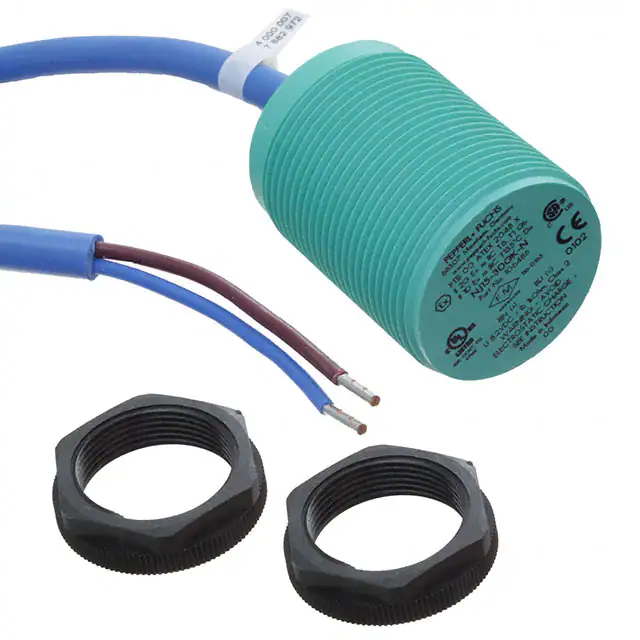

NJ15-30GK-NINDUCTIVE SEN 15MM NAMUR |
2,918 |
|
Datasheet | - | Cylinder, Threaded - M30 | Box | Active | Inductive | 0.591" (15mm) | SCR-NC, 2-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 8.2V | Cable | -25°C ~ 100°C | IP66, IP68 | No Indicator |
|

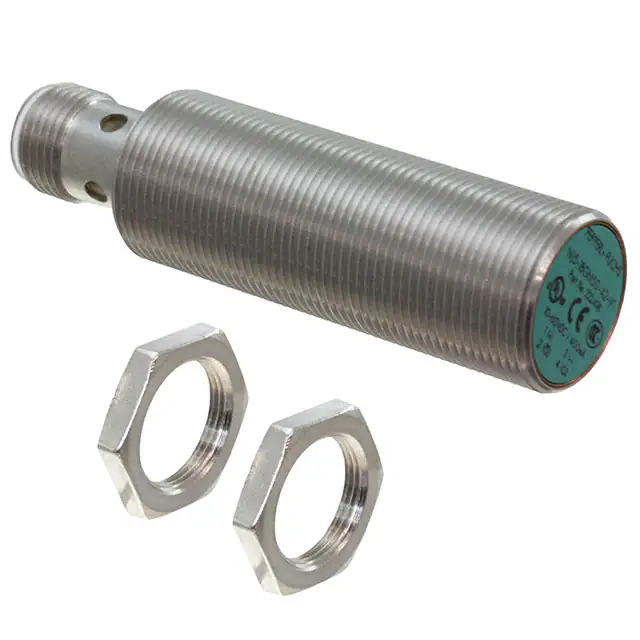

NJ5-18GM50-A2-V1INDUCTIVE SEN 5MM PNP |
1,745 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.197" (5mm) | PNP-NC/NO, 4-Wire | - | Unshielded | Stainless Steel | 10V ~ 60V | Connector | -25°C ~ 70°C | IP67 | LED |
