Proximity Sensors - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Sensor Type | Sensing Distance | Output Type | Response Frequency | Shielding | Material - Body | Voltage - Supply | Termination Style | Operating Temperature | Ingress Protection | Indicator |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NBB8-18GM50-E2INDUCTIVE SEN 8MM PNP |
1,645 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.315" (8mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|

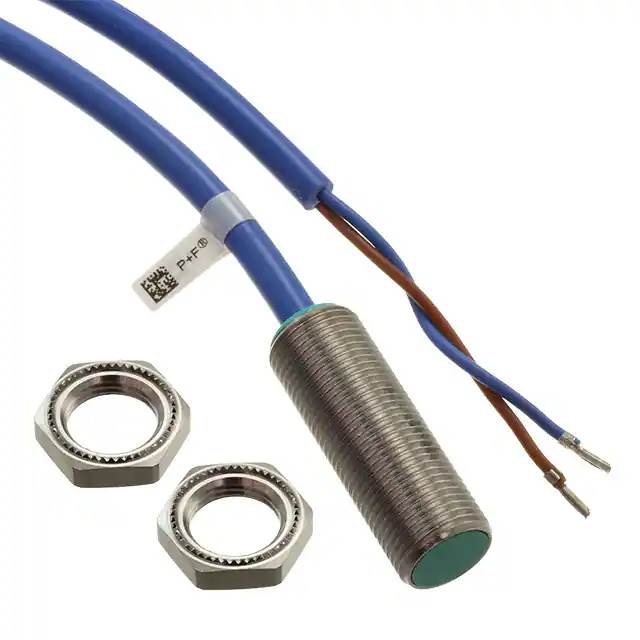

NJ2-12GM-NINDUCTIVE SEN 2MM NAMUR |
4,801 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.079" (2mm) | SCR-NC, 2-Wire | - | Unshielded | Stainless Steel | 8.2V | Cable | -25°C ~ 100°C | IP66, IP67 | No Indicator |
|
NJ4-12GM-NINDUCTIVE SEN 4MM NAMUR |
2,095 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.157" (4mm) | SCR-NC, 2-Wire | - | Unshielded | Stainless Steel | 8.2V | Cable | -25°C ~ 100°C | IP67 | No Indicator |
|
NMB2-12GM65-E2-FE-V1INDUCTIVE SEN 2MM PNP |
1,874 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.079" (2mm) | PNP-NO, 3-Wire | - | Unshielded | Stainless Steel | 10V ~ 30V | Connector | -40°C ~ 70°C | IP67, IP68, IP69K | LED |
|
NJ0.8-5GM-NINDUCTIVE SEN 0.8MM NAMUR |
2,502 |
|
Datasheet | - | Cylinder, Threaded - M5 | Box | Active | Inductive | 0.031" (0.8mm) | SCR-NC, 2-Wire | - | Unshielded | Stainless Steel | 8.2V | Cable | -25°C ~ 100°C | IP67 | No Indicator |
|

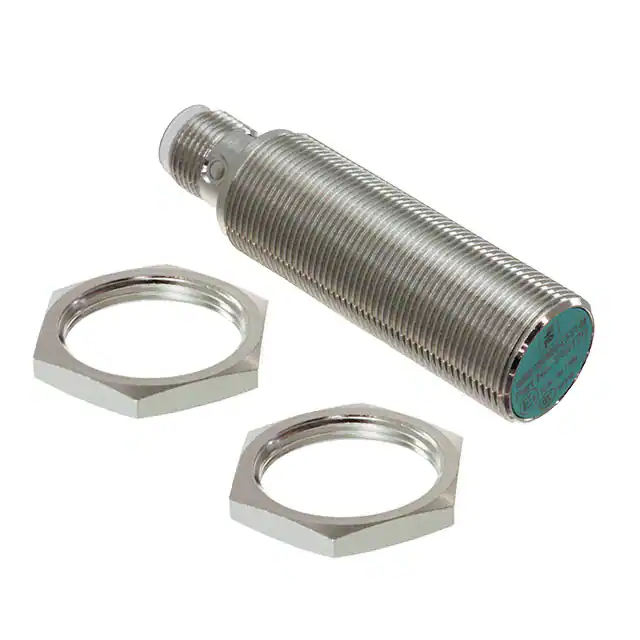

NBB8-18GM50-E2-V1-MINDUCTIVE SEN 8MM PNP |
3,771 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.315" (8mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 5V ~ 60V | Connector | -40°C ~ 85°C | IP68, IP69K | LED |
|

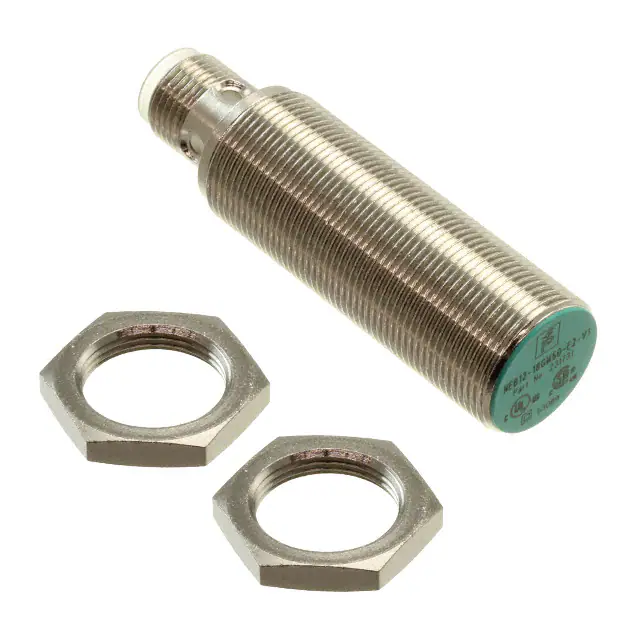

NEB12-18GM50-E2-V1INDUCTIVE SEN 12MM PNP |
1,014 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.472" (12mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -25°C ~ 85°C | IP67 | LED |
|
NEB6-12GM50-E2-V1INDUCTIVE SEN 6MM PNP |
2,963 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.236" (6mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -25°C ~ 85°C | IP67 | LED |
|
NRN35-L3-A2-C-V1INDUCTIVE SEN 35MM PNP |
1,621 |
|
Datasheet | - | Module | Box | Active | Inductive | 1.378" (35mm) | PNP-NC/NO, 4-Wire | - | Unshielded | Zinc Die-Cast | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|
NMB10-18GM65-E2-C-V1IND SEN 10MM PNP XYLAN COAT |
1,462 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.394" (10mm) | PNP-NO, 3-Wire | - | Unshielded | Stainless Steel | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
