Proximity Sensors - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Sensor Type | Sensing Distance | Output Type | Response Frequency | Shielding | Material - Body | Voltage - Supply | Termination Style | Operating Temperature | Ingress Protection | Indicator |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NBB20-U4-UUINDUCTIVE SEN 22MM NO/NC |
1,198 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.787" (20mm) | SCR-NC/NO, 2-Wire | - | Unshielded | Polyamide (PA) | 20 VAC ~ 253 VAC, 20 VDC ~ 300 VDC | - | -25°C ~ 85°C | IP67 | LED |
|
NBB4-12GM50-E0INDUCTIVE SEN 4MM NPN |
459 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.157" (4mm) | NPN-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|
NBB0.8-4M25-E0INDUCTIVE SEN 0.8MM NPN |
2,542 |
|
Datasheet | - | Cylinder | Box | Active | Inductive | 0.031" (0.8mm) | NPN-NO, 3-Wire | - | Unshielded | Stainless Steel | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|

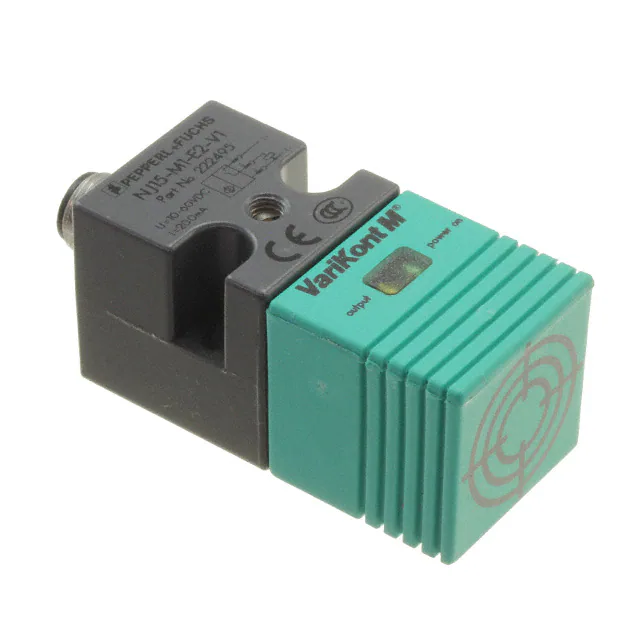

NJ15-M1-E2-V1INDUCTIVE SEN 15MM PNP |
1,821 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.591" (15mm) | PNP-NO, 3-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 10V ~ 60V | Connector | -25°C ~ 70°C | IP67 | LED |
|

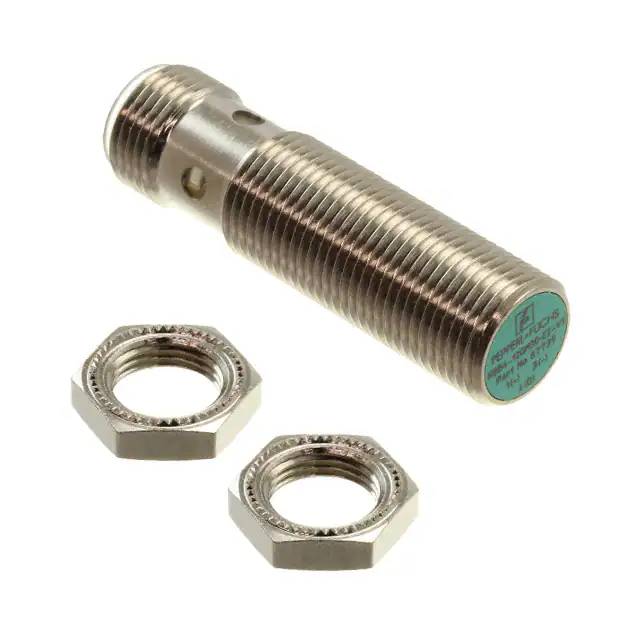

NBB4-12GM30-E2-V1INDUCTIVE SEN 4MM PNP |
3,734 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.157" (4mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -40°C ~ 70°C | IP67 | LED |
|
NBB0.8-5GM25-E2INDUCTIVE SEN 0.8MM PNP |
2,816 |
|
Datasheet | - | Cylinder, Threaded - M5 | Box | Active | Inductive | 0.031" (0.8mm) | PNP-NO, 3-Wire | - | Unshielded | Stainless Steel | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|
CBN5-F46-E2CAPACITIVE SEN 5MM PNP |
2,191 |
|
Datasheet | - | Flange Mount | Box | Active | Capacitive | 0.197" (5mm) | PNP-NO, 3-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|
NMB5-12GM65-E2-V1INDUCTIVE SEN 5MM PNP SS |
3,198 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.197" (5mm) | PNP-NO, 3-Wire | - | Unshielded | Stainless Steel | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67, IP68, IP69K | LED |
|
NBB1-3M22-E2-0.3M-V3INDUCTIVE SEN 1MM PNP |
3,645 |
|
Datasheet | - | Cylinder | Box | Active | Inductive | 0.039" (1mm) | PNP-NO, 3-Wire | - | Unshielded | Stainless Steel | 10V ~ 30V | Cable with Connector | -25°C ~ 70°C | IP67 | LED |
|
UB250-F77-E2-V31ULTRASONIC SEN 20-250MM PNP |
4,005 |
|
Datasheet | - | Module | Box | Active | Ultrasonic | 0.787" ~ 9.843" (20mm ~ 250mm) | PNP-NO | - | Unshielded | Polycarbonate (PC) | 20V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
