Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
21563.6CABLE GLAND 36.83-40.89MM M50 |
2,870 |
|
- |
Cable Gland | 1.450" (36.83mm) | 1.610" (40.89mm) | M50x1.5 | 0.590" (14.99mm) | - | 1.969" (50.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
BG240VA26TRICPCABLE GLAND 23-26MM M40 BRASS |
2,792 |
|
Datasheet | Cable Gland | 0.906" (23.00mm) | 1.024" (26.00mm) | M40x1.5 | 0.886" (22.50mm) | - | 1.575" (40.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 85°C | |
|
BG240VATRICPCABLE GLAND 26-29MM M40 BRASS |
3,215 |
|
Datasheet | Cable Gland | 1.024" (26.00mm) | 1.142" (29.00mm) | M40x1.5 | 0.886" (22.50mm) | - | 1.575" (40.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 85°C | |
|
97032.6CABLE GLAND 44.96-51.05MM M63 |
3,768 |
|
Datasheet | Cable Gland | 1.770" (44.96mm) | 2.010" (51.05mm) | M63x1.5 | 0.630" (16.00mm) | - | 2.480" (63.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|

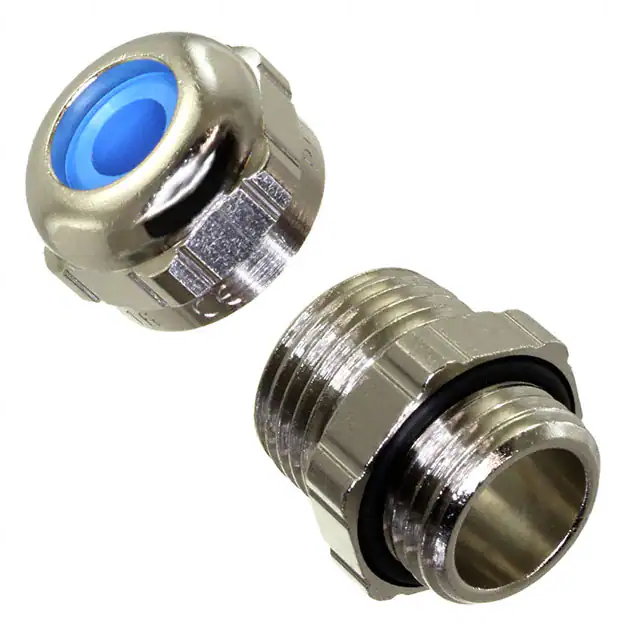

96571.6CABLE FEEDTHROUGH 7.11-10.92MM |
2,515 |
|
Datasheet | Cable Feedthrough | 0.280" (7.11mm) | 0.430" (10.92mm) | M16x1.5 | 0.240" (6.10mm) | - | 0.630" (16.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
97600.6CABLE GLAND 4.06-6.6MM M10 BRASS |
2,120 |
|
Datasheet | Cable Gland | 0.160" (4.06mm) | 0.260" (6.60mm) | M10x1 | 0.200" (5.08mm) | - | 0.390" (9.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP54 - Dust Protected, Water Resistant; NEMA 13 | -40°C ~ 300°C | |
|
97176.6CABLE GLAND 6.6-9.4MM M16 BRASS |
3,367 |
|
Datasheet | Cable Gland | 0.260" (6.60mm) | 0.370" (9.40mm) | M16x1.5 | 0.240" (6.10mm) | - | 0.630" (16.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
96577.1CABLE FEEDTHROUGH 45.97-54.1MM |
2,523 |
|
Datasheet | Cable Feedthrough | 1.810" (45.97mm) | 2.130" (54.10mm) | M63x1.5 | 0.390" (9.91mm) | - | 2.480" (63.0mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof; NEMA 4X | -20°C ~ 100°C | |
|
96577.0CABLE FEEDTHROUGH 45.97-54.1MM |
3,470 |
|
- |
Cable Feedthrough | 1.810" (45.97mm) | 2.130" (54.10mm) | M63x1.5 | 0.390" (9.91mm) | - | 2.480" (63.0mm) | Polyamide (PA), Nylon | - | Light Gray | IP68 - Dust Tight, Waterproof; NEMA 4X | -20°C ~ 100°C | |
|
21521.6CABLE GLAND 11.5-16.5MM PG16 |
1,351 |
|
Datasheet | Cable Gland | 0.453" (11.50mm) | 0.650" (16.50mm) | PG16 | 0.433" (11.00mm) | - | - | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | - |
