Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
96131.0PCCABLE GLAND M25 |
1,450 |
|
- |
Cable Gland | - | - | M25x1.5 | - | - | - | - | - | - | - | - | |
|
|
96575.1CABLE FEEDTHROUGH 25.91-32MM M40 |
4,103 |
|
Datasheet | Cable Feedthrough | 1.020" (25.91mm) | 1.260" (32.00mm) | M40x1.5 | 0.310" (7.87mm) | - | 1.570" (39.9mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof; NEMA 4X | -20°C ~ 100°C | |
|

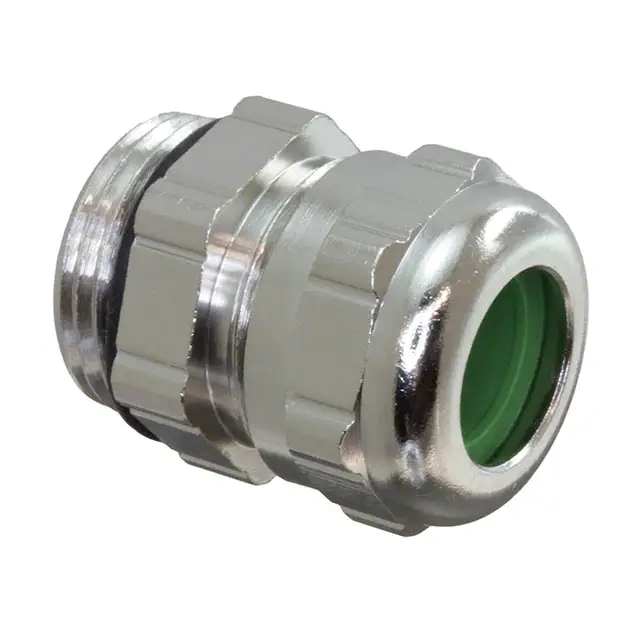

21654.6CABLE GLAND 7.87-10.41MM PG11 |
2,330 |
|
Datasheet | Cable Gland | 0.310" (7.87mm) | 0.410" (10.41mm) | PG11 | - | - | 0.752" (19.1mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|

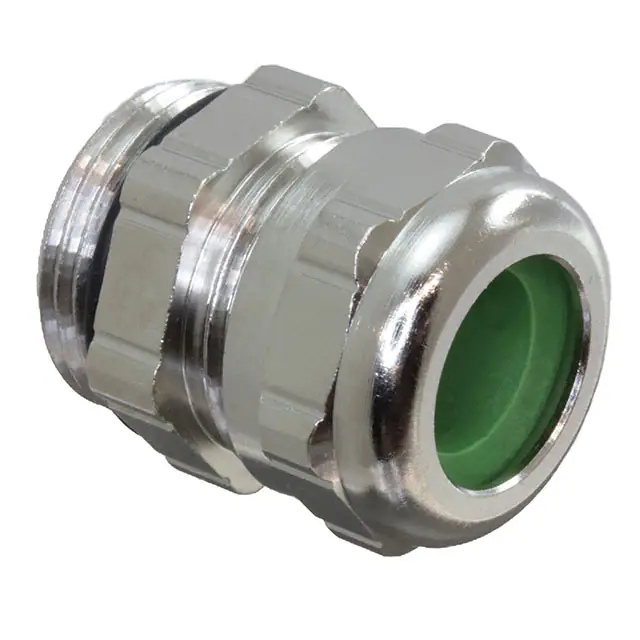

21656.6CABLE GLAND 6.86-10.41MM PG13.5 |
2,416 |
|
Datasheet | Cable Gland | 0.270" (6.86mm) | 0.410" (10.41mm) | PG13.5 | 0.260" (6.60mm) | - | 0.810" (20.6mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|

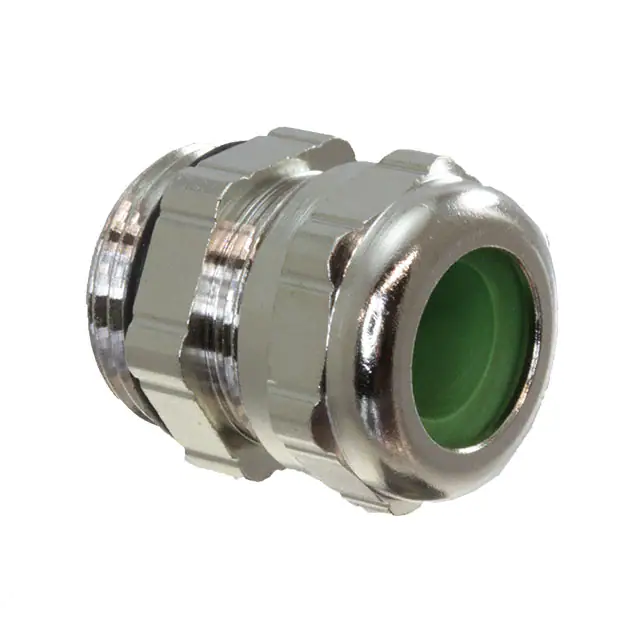

21657.6CABLE GLAND 6.86-10.41MM PG13.5 |
3,587 |
|
Datasheet | Cable Gland | 0.270" (6.86mm) | 0.410" (10.41mm) | PG13.5 | 0.260" (6.60mm) | - | 0.810" (20.6mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
96576.0CABLE FEED 35.05-41.91MM M50 |
4,482 |
|
Datasheet | Cable Feedthrough | 1.380" (35.05mm) | 1.650" (41.91mm) | M50x1.5 | 0.390" (9.91mm) | - | 1.969" (50.0mm) | Polyamide (PA), Nylon | - | Light Gray | IP68 - Dust Tight, Waterproof; NEMA 4X | -20°C ~ 100°C | |
|
97139.6CABLE GLAND 6.86-10.41MM M20 |
4,212 |
|
Datasheet | Cable Gland | 0.270" (6.86mm) | 0.410" (10.41mm) | M20x1.5 | 0.240" (6.10mm) | - | 0.790" (20.1mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
97023.6CABLE GLAND 7.87-10.92MM M20 |
2,697 |
|
Datasheet | Cable Gland | 0.310" (7.87mm) | 0.430" (10.92mm) | M20x1.5 | 0.390" (9.91mm) | - | 0.790" (20.1mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
97276.6CABLE GLAND 6.86-10.41MM M16 |
1,225 |
|
Datasheet | Cable Gland | 0.270" (6.86mm) | 0.410" (10.41mm) | M16x1.5 | 0.240" (6.10mm) | - | 0.630" (16.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP54 - Dust Protected, Water Resistant; NEMA 13 | -40°C ~ 300°C | |
|
21527.6CABLE GLAND 6.6-9.4MM PG11 BRASS |
4,243 |
|
- |
Cable Gland | 0.260" (6.60mm) | 0.370" (9.40mm) | PG11 | 0.390" (9.91mm) | - | 0.730" (18.5mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C |
