Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

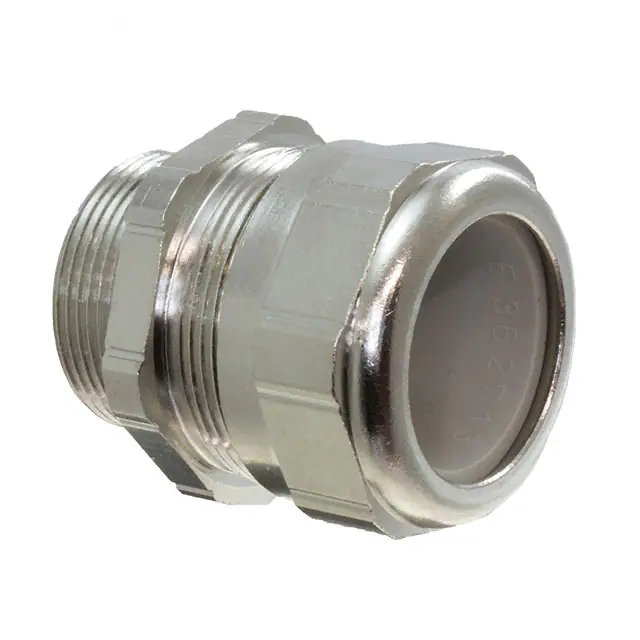

21558.6CABLE GLAND 22.1-25.91MM M32 |
4,713 |
|
Datasheet | Cable Gland | 0.870" (22.10mm) | 1.020" (25.91mm) | M32x1.5 | 0.510" (12.95mm) | - | 1.260" (32.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
21807.6CABLE GLAND 23.88-27.94MM 1 1/4" |
4,848 |
|
- |
Cable Gland | 0.940" (23.88mm) | 1.100" (27.94mm) | 1 1/4" NPT | 0.790" (20.07mm) | - | 1.660" (42.2mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
21816.6CABLE GLAND 36.07-39.88MM 1 1/2" |
4,859 |
|
Datasheet | Cable Gland | 1.420" (36.07mm) | 1.570" (39.88mm) | 1 1/2" NPT | 0.870" (22.10mm) | - | 1.900" (48.3mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
BG212VATRICPCABLE GLAND 5-7MM M12 BRASS |
2,242 |
|
Datasheet | Cable Gland | 0.197" (5.00mm) | 0.276" (7.00mm) | M12x1.5 | 0.276" (7.00mm) | - | 0.472" (12.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 85°C | |
|
|
BG220VATRICPCABLE GLAND 9-12MM M20 BRASS |
1,034 |
|
Datasheet | Cable Gland | 0.354" (9.00mm) | 0.472" (12.00mm) | M20x1.5 | 0.354" (9.00mm) | - | 0.787" (20.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 85°C | |
|
BG232VA21CPCABLE GLAND 18.01-21MM M32 |
2,741 |
|
Datasheet | Cable Gland | 0.709" (18.01mm) | 0.827" (21.00mm) | M32x1.5 | 0.433" (11.00mm) | - | 1.260" (32.0mm) | Stainless Steel | Sealing Ring | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 85°C | |
|
BG232VACPCABLE GLAND 20-23MM M32 S STEEL |
4,247 |
|
Datasheet | Cable Gland | 0.787" (20.00mm) | 0.906" (23.00mm) | M32x1.5 | 0.433" (11.00mm) | - | 1.260" (32.0mm) | Stainless Steel | Sealing Ring | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 85°C | |
|
BG232VA21TRICPCABLE GLAND 18.03-21.08MM M32 |
4,579 |
|
Datasheet | Cable Gland | 0.710" (18.03mm) | 0.830" (21.08mm) | M32x1.5 | 0.472" (12.00mm) | - | 1.260" (32.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 85°C | |
|
BG232VATRICPCABLE GLAND 20.07-23.11MM M32 |
1,784 |
|
Datasheet | Cable Gland | 0.790" (20.07mm) | 0.910" (23.11mm) | M32x1.5 | 0.472" (12.00mm) | - | 1.260" (32.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 85°C | |
|
BG240VA26CPCABLE GLAND 23-26MM M40 S STEEL |
2,709 |
|
Datasheet | Cable Gland | 0.906" (23.00mm) | 1.024" (26.00mm) | M40x1.5 | 0.433" (11.00mm) | - | 1.575" (40.0mm) | Stainless Steel | Sealing Ring | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 85°C |
