Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
97165.6CABLE GLAND 36.07-39.88MM M50 |
4,014 |
|
Datasheet | Cable Gland | 1.420" (36.07mm) | 1.570" (39.88mm) | M50x1.5 | 0.390" (9.91mm) | - | 1.969" (50.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
97030.6CABLE GLAND 37.08-40.89MM M50 |
1,429 |
|
Datasheet | Cable Gland | 1.460" (37.08mm) | 1.610" (40.89mm) | M50x1.5 | 0.590" (14.99mm) | - | 1.969" (50.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
BG225VATRICPCABLE GLAND 14.99-18.03MM M25 |
3,163 |
|
Datasheet | Cable Gland | 0.590" (14.99mm) | 0.710" (18.03mm) | M25x1.5 | 0.433" (11.00mm) | - | 0.984" (25.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 85°C | |
|

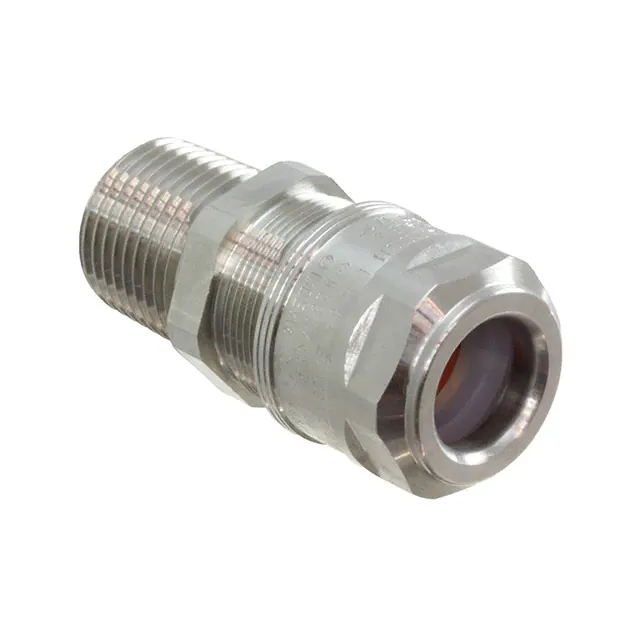

LEX3012VA/316LHTSCABLE GLND 7.87-13.97MM 1/2" NPT |
1,605 |
|
Datasheet | Cable Gland | 0.310" (7.87mm) | 0.550" (13.97mm) | 1/2" NPT | 0.787" (20.00mm) | - | 0.630" (16.0mm) | Stainless Steel | Sealing Ring | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -60°C ~ 130°C | |
|

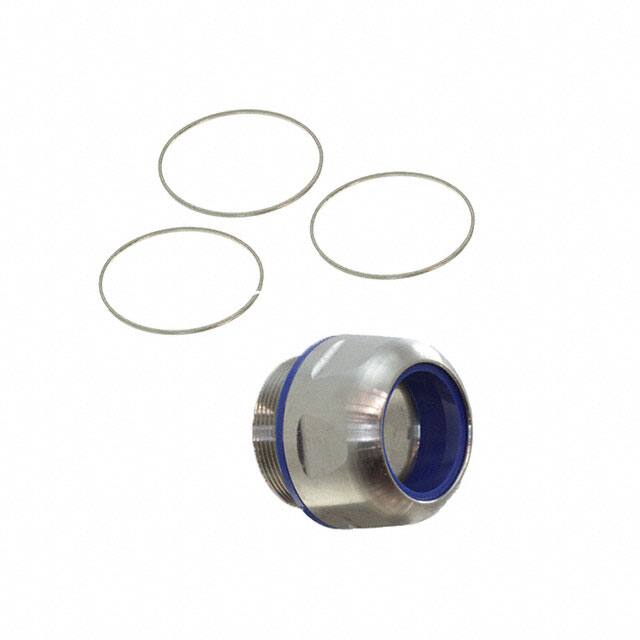

BG240VACPCABLE GLAND 26-29MM M40 S STEEL |
2,758 |
|
Datasheet | Cable Gland | 1.024" (26.00mm) | 1.142" (29.00mm) | M40x1.5 | 0.433" (11.00mm) | - | 1.575" (40.0mm) | Stainless Steel | Sealing Ring | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 85°C | |
|
96576.7CABLE FEEDTHROUGH 35.05-41.91MM |
2,532 |
|
Datasheet | Cable Feedthrough | 1.380" (35.05mm) | 1.650" (41.91mm) | M50x1.5 | 0.390" (9.91mm) | - | 1.969" (50.0mm) | Stainless Steel | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -60°C ~ 500°C | |
|
LEX240VA/316LHTSCABLE GLAND 25.91-34.04MM M40 |
1,590 |
|
Datasheet | Cable Gland | 1.020" (25.91mm) | 1.340" (34.04mm) | M40x1.5 | 0.630" (16.00mm) | - | 1.575" (40.0mm) | Stainless Steel | O-Ring | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -60°C ~ 130°C | |
|
96574.7.1CABLE FEEDTHROUGH 15-25MM M32 |
3,173 |
|
Datasheet | Cable Feedthrough | 0.591" (15.00mm) | 0.984" (25.00mm) | M32x1.5 | 0.315" (8.00mm) | - | 1.260" (32.0mm) | Stainless Steel | - | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 130°C | |
|
96577.7CABLE FEEDTHROUGH 45.97-54.1MM |
2,146 |
|
Datasheet | Cable Feedthrough | 1.810" (45.97mm) | 2.130" (54.10mm) | M63x1.5 | 0.390" (9.91mm) | - | 2.480" (63.0mm) | Stainless Steel | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -60°C ~ 500°C | |
|
|
LEX3212VA/316LHTSCABLE GLAND 43.94-55.88MM 2 1/2" |
3,272 |
|
Datasheet | Cable Gland | 1.730" (43.94mm) | 2.200" (55.88mm) | 2 1/2" NPT | 1.575" (40.00mm) | - | 2.480" (63.0mm) | Stainless Steel | Sealing Ring | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -60°C ~ 130°C |
