Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
18555.6CABLE GLAND 7.11-10.92MM M16 |
251 |
|
Datasheet | Cable Gland | 0.280" (7.11mm) | 0.430" (10.92mm) | M16x1.5 | 0.240" (6.10mm) | - | 0.630" (16.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
96190.6CABLE GLAND 8.89-13.97MM M20 |
211 |
|
Datasheet | Cable Gland | 0.350" (8.89mm) | 0.550" (13.97mm) | M20x1.5 | 0.260" (6.60mm) | - | 0.790" (20.1mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
96191.6CABLE GLAND 16-20.07MM M25 BRASS |
390 |
|
Datasheet | Cable Gland | 0.630" (16.00mm) | 0.790" (20.07mm) | M25x1.5 | 0.300" (7.62mm) | - | 0.980" (24.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
BG212VACPCABLE GLAND 5-7MM M12 S STEEL |
3,221 |
|
Datasheet | Cable Gland | 0.197" (5.00mm) | 0.276" (7.00mm) | M12x1.5 | 0.276" (7.00mm) | - | 0.472" (12.0mm) | Stainless Steel | Sealing Ring | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 85°C | |
|
|
USG 22554 ZNCABLE GLAND M25 ZINC |
2,097 |
|
Datasheet | Cable Gland - Splittable Body | - | - | M25x1.5 | 0.433" (11.00mm) | - | - | Zinc | - | Silver | IP67 - Dust Tight, Waterproof | -20°C ~ 80°C | |
|
96570.6CABLE FEEDTHROUGH 5.08-7.62MM |
118 |
|
Datasheet | Cable Feedthrough | 0.200" (5.08mm) | 0.300" (7.62mm) | M12x1.5 | 0.200" (5.08mm) | - | 0.470" (11.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|

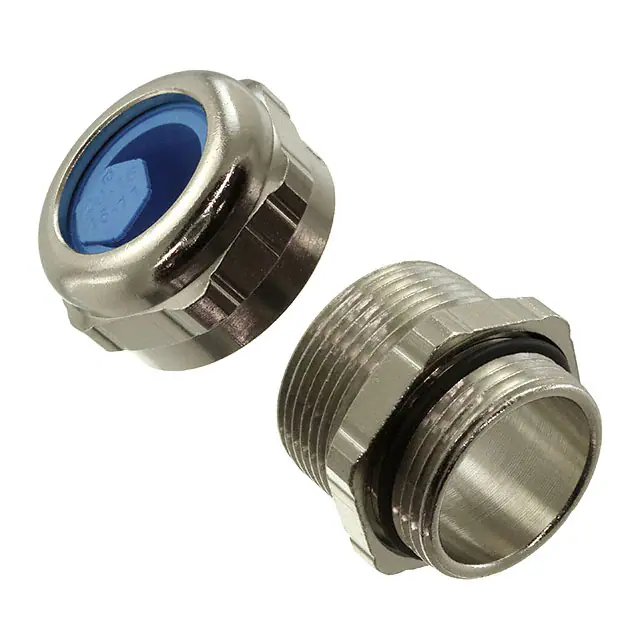

96573.6CABLE FEEDTHROUGH 16-20.07MM M25 |
173 |
|
Datasheet | Cable Feedthrough | 0.630" (16.00mm) | 0.790" (20.07mm) | M25x1.5 | 0.300" (7.62mm) | - | 0.980" (24.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|

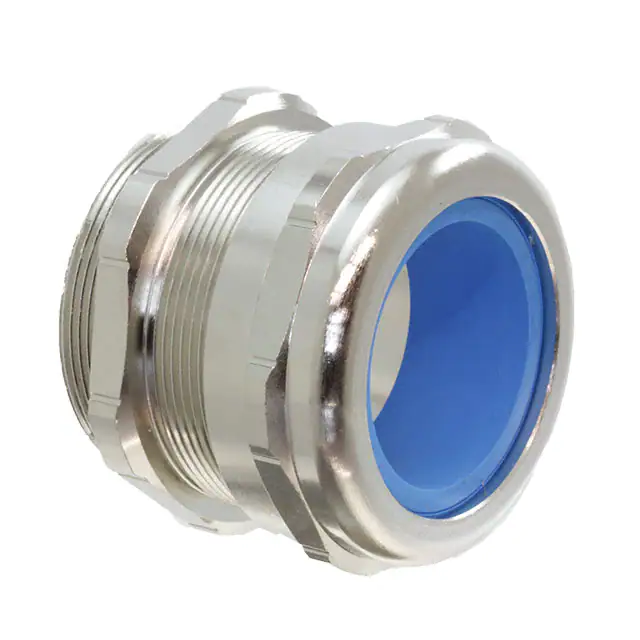

96576.6CABLE FEEDTHROUGH 35.05-41.91MM |
249 |
|
Datasheet | Cable Feedthrough | 1.380" (35.05mm) | 1.650" (41.91mm) | M50x1.5 | 0.390" (9.91mm) | - | 1.969" (50.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
96571.7CABLE FEEDTHROUGH 7.11-10.92MM |
4,544 |
|
Datasheet | Cable Feedthrough | 0.280" (7.11mm) | 0.430" (10.92mm) | M16x1.5 | 0.240" (6.10mm) | - | 0.630" (16.0mm) | Stainless Steel | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -60°C ~ 500°C | |
|
21534.6CABLE GLAND 13.97-18.03MM PG21 |
240 |
|
Datasheet | Cable Gland | 0.550" (13.97mm) | 0.710" (18.03mm) | PG21 | 0.430" (10.92mm) | - | 1.120" (28.4mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C |
