Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
21690.6CABLE GLAND 20.07-24.89MM PG21 |
3,775 |
|
Datasheet | Cable Gland | 0.790" (20.07mm) | 0.980" (24.89mm) | PG21 | 0.280" (7.11mm) | - | 1.120" (28.4mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|

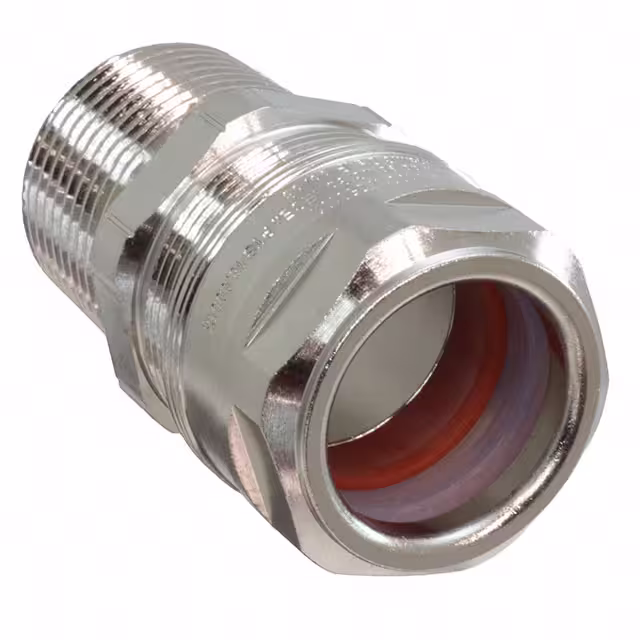

LEX3100MSHTSCABLE GLAND 18.5-26MM 1" NPT |
2,842 |
|
Datasheet | Cable Gland | 0.728" (18.50mm) | 1.024" (26.00mm) | 1" NPT | 0.984" (25.0mm) | - | - | Brass, Nickel Plated | - | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -60°C ~ 130°C | |
|
LEX216VA/316LHTSCABLE GLAND 7-11MM M16 S STEEL |
2,141 |
|
Datasheet | Cable Gland | 0.276" (7.00mm) | 0.433" (11.00mm) | M16x1.5 | 0.630" (16.00mm) | - | - | Stainless Steel | O-Ring | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -60°C ~ 130°C | |
|

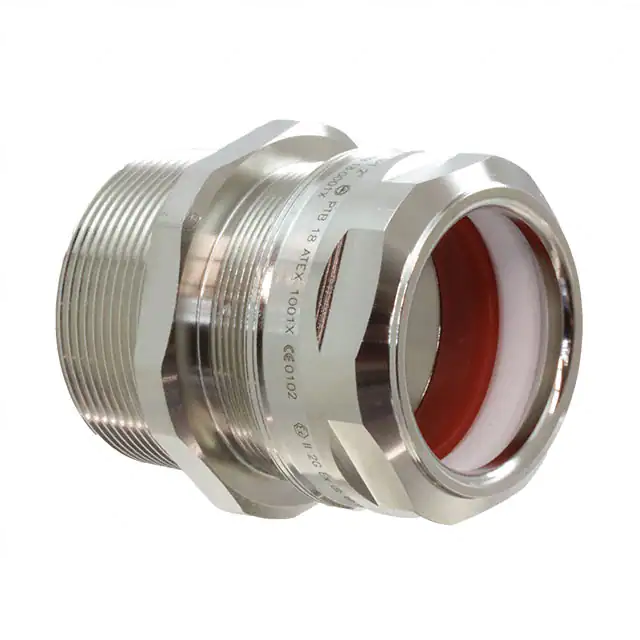

LEX3200MSHTSCABLE GLAND 33-45MM 2" NPT BRASS |
3,902 |
|
Datasheet | Cable Gland | 1.299" (33.00mm) | 1.772" (45.00mm) | 2" NPT | 1.063" (27.0mm) | - | - | Brass, Nickel Plated | - | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -60°C ~ 130°C | |
|
LEX3212MSHTSCABLE GLAND 44-56MM 2 1/2" NPT |
4,673 |
|
Datasheet | Cable Gland | 1.732" (44.00mm) | 2.205" (56.00mm) | 2 1/2" NPT | 1.575" (40.0mm) | - | - | Brass, Nickel Plated | - | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -60°C ~ 130°C | |
|
|
LEX3200VA/316LHTSCABLE GLAND 33.02-44.96MM 2" NPT |
4,852 |
|
Datasheet | Cable Gland | 1.300" (33.02mm) | 1.770" (44.96mm) | 2" NPT | 1.063" (27.00mm) | - | 2.087" (53.0mm) | Stainless Steel | Sealing Ring | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -60°C ~ 130°C | |
|
21797.6CABLE GLAND 6.6-9.4MM 1/2" NPT |
3,483 |
|
Datasheet | Cable Gland | 0.260" (6.60mm) | 0.370" (9.40mm) | 1/2" NPT | 0.630" (16.00mm) | - | 0.840" (21.3mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
LEX3034MSHTSCABLE GLAND 12.5-20MM 3/4" NPT |
3,201 |
|
Datasheet | Cable Gland | 0.492" (12.50mm) | 0.787" (20.00mm) | 3/4" NPT | 0.807" (20.5mm) | - | - | Brass, Nickel Plated | - | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -60°C ~ 130°C | |
|
21627.6CABLE GLAND 13.97-18.03MM M25 |
3,828 |
|
Datasheet | Cable Gland | 0.550" (13.97mm) | 0.710" (18.03mm) | M25x1.5 | 0.430" (10.92mm) | - | 0.980" (24.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
97153.6CABLE GLAND 13.97-18.03MM M32 |
1,582 |
|
Datasheet | Cable Gland | 0.550" (13.97mm) | 0.710" (18.03mm) | M32x1.5 | 0.310" (7.87mm) | - | 1.260" (32.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C |
