Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

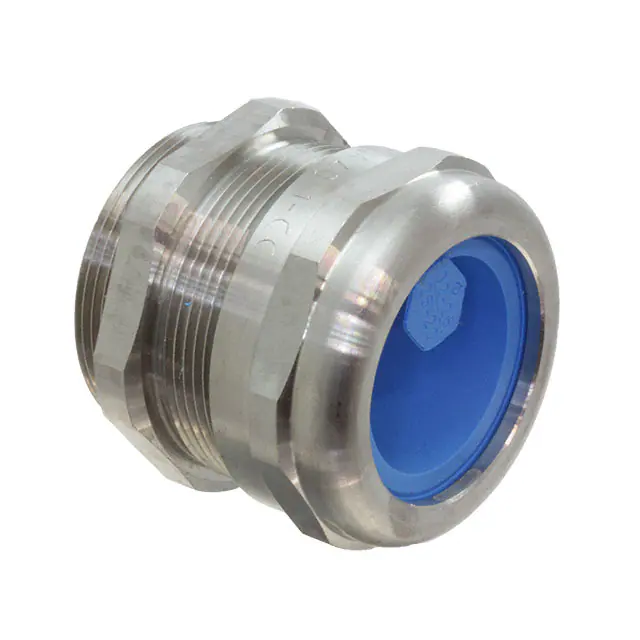

96575.7CABLE FEEDTHROUGH 25.91-32MM M40 |
4,606 |
|
Datasheet | Cable Feedthrough | 1.020" (25.91mm) | 1.260" (32.00mm) | M40x1.5 | 0.310" (7.87mm) | - | 1.570" (39.9mm) | Stainless Steel | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -60°C ~ 500°C | |
|
LEX3114VA/316LHTSCABLE GLAND 25.91-34.04MM 1 1/4" |
3,456 |
|
Datasheet | Cable Gland | 1.020" (25.91mm) | 1.340" (34.04mm) | 1 1/4" NPT | 1.024" (26.00mm) | - | 1.378" (35.0mm) | Stainless Steel | Sealing Ring | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -60°C ~ 130°C | |
|
LEX250VA/316HTSCABLE GLAND M50 S STEEL |
2,887 |
|
- |
Cable Gland | - | - | M50x1.5 | - | - | - | Stainless Steel | - | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | - | |
|
96578.6CABLE FEEDTHROUGH 57.91-65.02MM |
1,739 |
|
Datasheet | Cable Feedthrough | 2.280" (57.91mm) | 2.560" (65.02mm) | M75x1.5 | 0.590" (14.99mm) | - | 2.950" (74.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
20000.0CABLE GLAND 4.06-6.6MM PG9 |
1,686 |
|
- |
Cable Gland | 0.160" (4.06mm) | 0.260" (6.60mm) | PG9 | 0.350" (8.89mm) | - | 0.600" (15.2mm) | Polyamide (PA), Nylon | - | Beige | IP68 - Dust Tight, Waterproof; NEMA 4X | -20°C ~ 100°C | |
|
|
25003.0CABLE GLAND 6.6-9.4MM M16 |
1,457 |
|
- |
Cable Gland | 0.260" (6.60mm) | 0.370" (9.40mm) | M16x1.5 | 0.350" (8.89mm) | - | 0.630" (16.0mm) | Polyamide (PA), Nylon | - | Beige | IP68 - Dust Tight, Waterproof; NEMA 4X | -20°C ~ 100°C | |
|
|
25043.1CABLE GLAND 6.6-9.4MM M16 |
3,645 |
|
- |
Cable Gland | 0.260" (6.60mm) | 0.370" (9.40mm) | M16x1.5 | 0.350" (8.89mm) | - | 0.630" (16.0mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof; NEMA 4X | -20°C ~ 100°C | |
|
|
20942.4CABLE GLAND RA PG9 |
1,654 |
|
- |
Cable Gland - 90° | - | - | PG9 | - | - | - | - | - | - | - | - | |
|
|
96563.4CABLE GLAND M12 PVDF |
2,815 |
|
- |
Cable Gland | - | - | M12x1.5 | - | - | - | Polyvinylidene Fluoride (PVDF) | - | Opaque | - | - | |
|
|
96563.5CABLE GLAND M12 PVDF |
4,115 |
|
- |
Cable Gland | - | - | M12x1.5 | - | - | - | Polyvinylidene Fluoride (PVDF) | - | Black | - | - |
