Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
21784.6CABLE GLAND 8.89-12.95MM 1/2" |
4,583 |
|
- |
Cable Gland | 0.350" (8.89mm) | 0.510" (12.95mm) | 1/2" NPT | 0.630" (16.00mm) | - | 0.840" (21.3mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
21541.6CABLE GLAND 6.6-8.89MM M16 BRASS |
3,675 |
|
Datasheet | Cable Gland | 0.260" (6.60mm) | 0.350" (8.89mm) | M16x1.5 | 0.390" (9.91mm) | - | 0.630" (16.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
156D32GESCHLCABLE GLAND PG36 BRASS |
2,113 |
|
- |
Cable Gland | - | - | PG36 | - | - | - | Brass, Nickel Plated | - | Silver | - | - | |
|
|
97620.6CABLE GLAND 20.07-23.88MM M32 |
2,474 |
|
Datasheet | Cable Gland | 0.790" (20.07mm) | 0.940" (23.88mm) | M32x1.5 | 0.310" (7.87mm) | - | 1.260" (32.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP54 - Dust Protected, Water Resistant; NEMA 13 | -40°C ~ 300°C | |
|
21794.6CABLE GLAND 17.02-20.57MM 1"NPT |
3,208 |
|
Datasheet | Cable Gland | 0.670" (17.02mm) | 0.810" (20.57mm) | 1" NPT | 0.790" (20.07mm) | - | 1.311" (33.3mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
21693.6CABLE GLAND 28.96-33.02MM PG29 |
3,536 |
|
- |
Cable Gland | 1.140" (28.96mm) | 1.300" (33.02mm) | PG29 | - | - | 1.460" (37.1mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
97160.6CABLE GLAND 23.88-27.94MM M50 |
4,694 |
|
Datasheet | Cable Gland | 0.940" (23.88mm) | 1.100" (27.94mm) | M50x1.5 | 0.390" (9.91mm) | - | 1.969" (50.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|

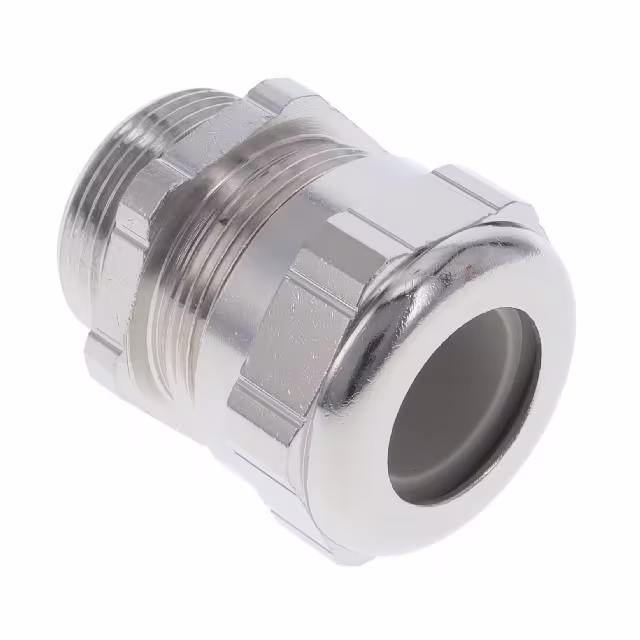

21511.6CABLE GLAND 13.97-18.03MM PG21 |
3,329 |
|
Datasheet | Cable Gland | 0.550" (13.97mm) | 0.710" (18.03mm) | PG21 | 0.430" (10.92mm) | - | 1.120" (28.4mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
21556.6CABLE GLAND 17.02-20.07MM M25 |
2,942 |
|
- |
Cable Gland | 0.670" (17.02mm) | 0.790" (20.07mm) | M25x1.5 | 0.430" (10.92mm) | - | 0.980" (24.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|

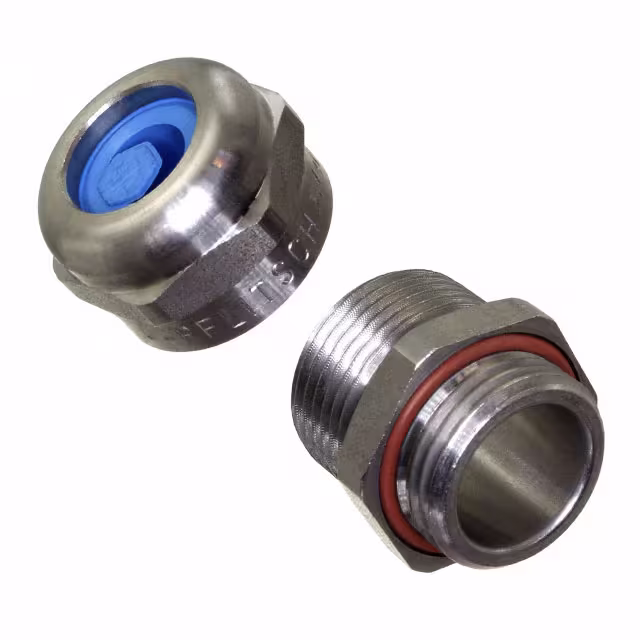

96572.7CABLE FEEDTHR 8.89-13.97MM M20 |
3,903 |
|
Datasheet | Cable Feedthrough | 0.350" (8.89mm) | 0.550" (13.97mm) | M20x1.5 | 0.260" (6.60mm) | - | 0.790" (20.1mm) | Stainless Steel | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -60°C ~ 500°C |
