Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
97158.6CABLE GLAND 20.07-24.89MM M40 |
2,200 |
|
Datasheet | Cable Gland | 0.790" (20.07mm) | 0.980" (24.89mm) | M40x1.5 | 0.310" (7.87mm) | - | 1.570" (39.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
21790.6CABLE GLAND 20.07-24.89MM 1" NPT |
1,580 |
|
Datasheet | Cable Gland | 0.790" (20.07mm) | 0.980" (24.89mm) | 1" NPT | 0.790" (20.07mm) | - | 1.311" (33.3mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
LEX232MSHTSCABLE GLAND 18.54-25.91MM M32 |
1,346 |
|
Datasheet | Cable Gland | 0.730" (18.54mm) | 1.020" (25.91mm) | M32x1.5 | 0.630" (16.00mm) | - | 1.260" (32.0mm) | Brass, Nickel Plated | O-Ring | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -60°C ~ 130°C | |
|
21671.6CABLE GLND 26.92-32MM PG36 BRASS |
1,297 |
|
Datasheet | Cable Gland | 1.060" (26.92mm) | 1.260" (32.00mm) | PG36 | 0.350" (8.89mm) | - | 1.850" (47.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
BG208VACPCABLE GLAND 4-4.5MM M8 S STEEL |
1,920 |
|
Datasheet | Cable Gland | 0.157" (4.00mm) | 0.177" (4.50mm) | M8x1 | 0.157" (4.00mm) | - | 0.315" (8.0mm) | Stainless Steel | Sealing Ring | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 85°C | |
|

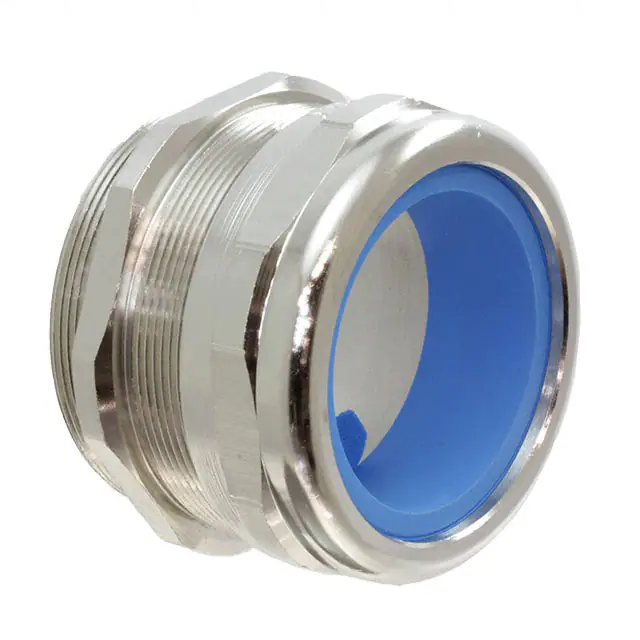

96577.6CABLE FEEDTHROUGH 45.97-54.1MM |
3,817 |
|
Datasheet | Cable Feedthrough | 1.810" (45.97mm) | 2.130" (54.10mm) | M63x1.5 | 0.390" (9.91mm) | - | 2.480" (63.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
21629.6CABLE GLAND 22.1-25.91MM M32 |
2,939 |
|
Datasheet | Cable Gland | 0.870" (22.10mm) | 1.020" (25.91mm) | M32x1.5 | 0.510" (12.95mm) | - | 1.260" (32.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
21812.6CABLE GLAND 32-36.07MM 1 1/2" |
1,406 |
|
Datasheet | Cable Gland | 1.260" (32.00mm) | 1.420" (36.07mm) | 1 1/2" NPT | 0.870" (22.10mm) | - | 1.900" (48.3mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
LEX3114MSHTSCABLE GLAND 26-34MM 1 1/4" NPT |
2,352 |
|
Datasheet | Cable Gland | 1.024" (26.00mm) | 1.339" (34.00mm) | 1 1/4" NPT | 1.024" (26.0mm) | - | - | Brass, Nickel Plated | - | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -60°C ~ 130°C | |
|

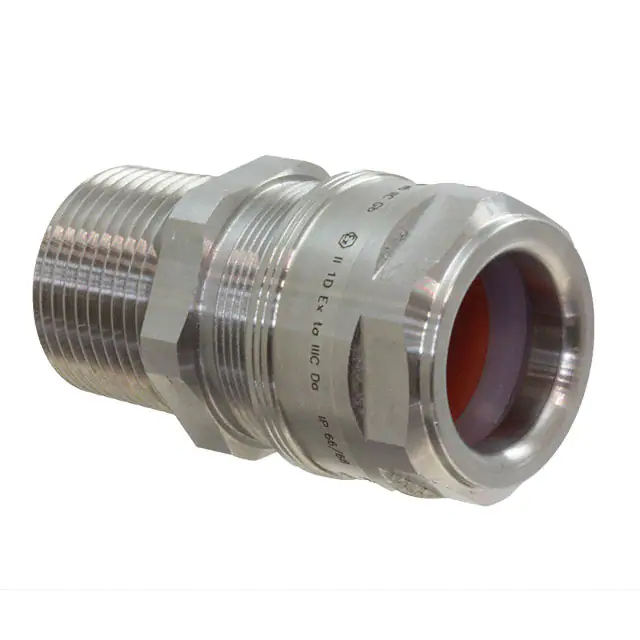

LEX3034VA/316LHTSCABLE GLAND 12.45-20.07MM 3/4" |
3,277 |
|
Datasheet | Cable Gland | 0.490" (12.45mm) | 0.790" (20.07mm) | 3/4" NPT | 0.807" (20.50mm) | - | 0.827" (21.0mm) | Stainless Steel | Sealing Ring | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -60°C ~ 130°C |
