Proximity Sensors - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Sensor Type | Sensing Distance | Output Type | Response Frequency | Shielding | Material - Body | Voltage - Supply | Termination Style | Operating Temperature | Ingress Protection | Indicator |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NBB1.5-F41-E2-V3INDUCTIVE SEN 1.5MM PNP |
2,865 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.059" (1.5mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|

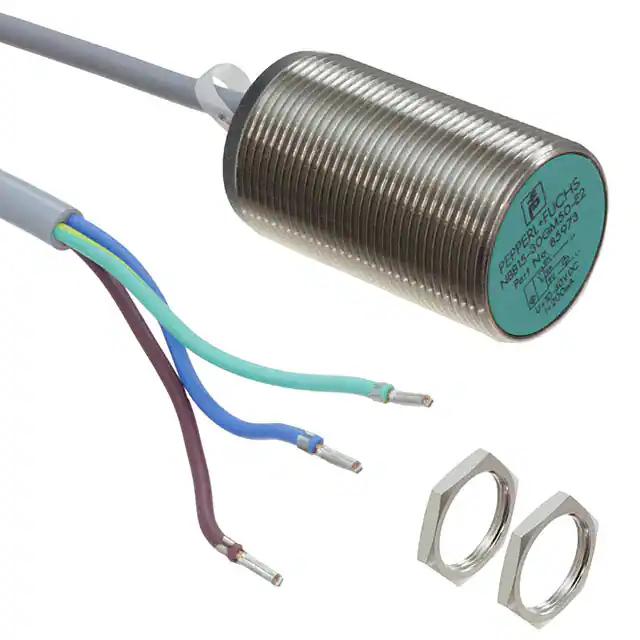

NBB15-30GM50-E2INDUCTIVE SEN 15MM PNP |
3,843 |
|
Datasheet | - | Cylinder, Threaded - M30 | Box | Active | Inductive | 0.591" (15mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|
NRB4-12GM40-E2-C-V1INDUCTIVE SEN 4MM PNP PTFE COAT |
4,566 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.157" (4mm) | PNP-NO, 3-Wire | - | Unshielded | Polytetrafluoroethylene (PTFE) | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|
NBB20-U1-E2INDUCTIVE SEN 20MM PNP |
1,476 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.787" (20mm) | PNP-NO, 3-Wire | - | Unshielded | Polyamide (PA) | 10V ~ 30V | - | -25°C ~ 85°C | IP68, IP69K | LED |
|
NEB8-12GM50-E2-V1INDUCTIVE SEN 8.8MM PNP |
1,787 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.315" (8mm) | PNP-NO, 3-Wire | - | Unshielded | Brass | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|

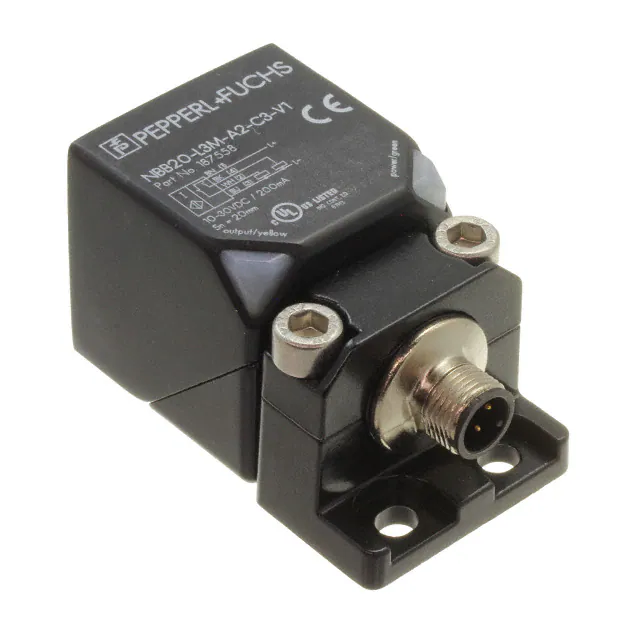

NBB20-L3M-A2-C3-V1INDUCTIVE SEN 20MM PNP |
3,509 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.787" (20mm) | PNP-NC/NO, 4-Wire | - | Unshielded | Zinc Die-Cast | 10V ~ 30V | Connector | -25°C ~ 85°C | IP67 | LED |
|

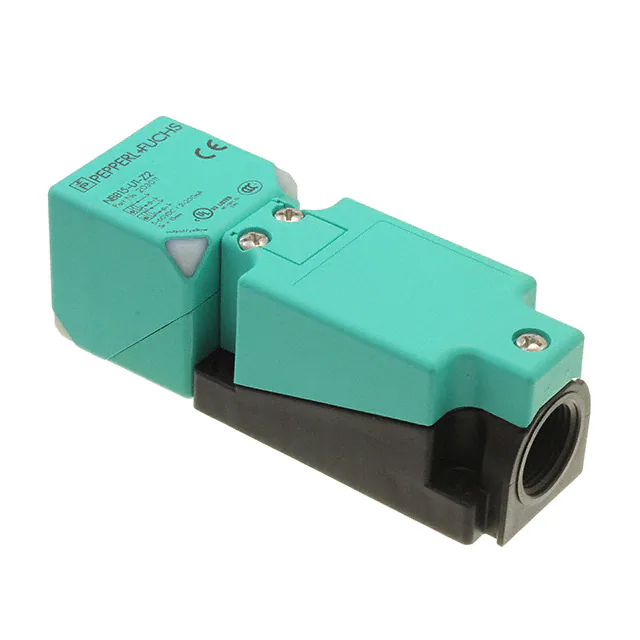

NBB15-U1-Z2INDUCTIVE SEN 15MM NO/NC |
3,448 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.591" (15mm) | SCR-NC/NO, 2-Wire | - | Unshielded | Polyamide (PA) | 5V ~ 60V | - | -25°C ~ 85°C | IP68, IP69K | LED |
|
NBB20-U1-A2INDUCTIVE SEN 20MM PNP |
1,236 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.787" (20mm) | PNP-NC/NO, 4-Wire | - | Unshielded | Polyamide (PA) | 10V ~ 30V | - | -25°C ~ 85°C | IP68, IP69K | LED |
|

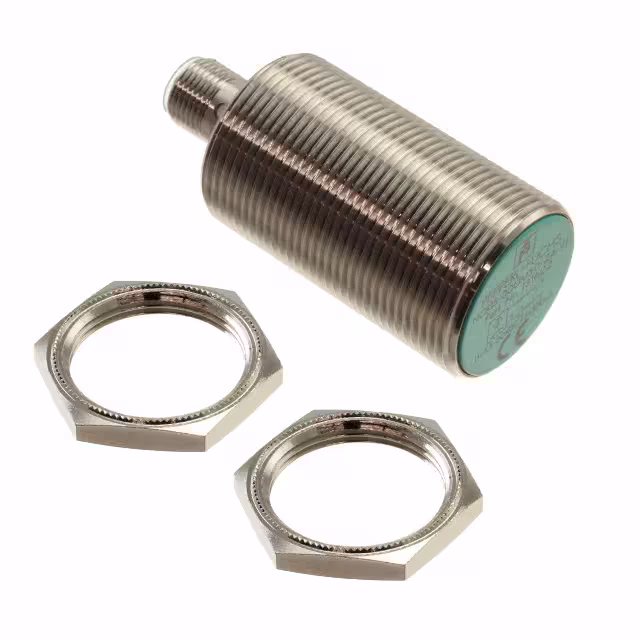

NCB15-30GM50-Z4-V1INDUCTIVE SEN 15.8MM PNP |
1,792 |
|
Datasheet | - | Cylinder, Threaded - M30 | Box | Active | Inductive | 0.591" (15mm) | SCR-NO, 2-Wire | - | Unshielded | Nickel-Plated Brass | 3.5V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|

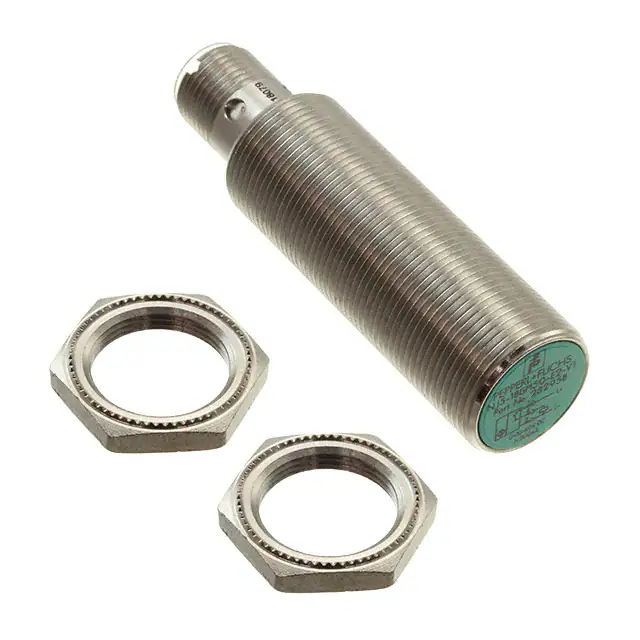

NJ5-18GM50-E2-V1INDUCTIVE SEN 5MM PNP |
4,256 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.197" (5mm) | PNP-NO, 3-Wire | - | Unshielded | Stainless Steel | 10V ~ 60V | Connector | -25°C ~ 70°C | IP67 | LED |
