Proximity Sensors - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Sensor Type | Sensing Distance | Output Type | Response Frequency | Shielding | Material - Body | Voltage - Supply | Termination Style | Operating Temperature | Ingress Protection | Indicator |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NBN40-L2M-E2-V1INDUCTIVE SEN 40MM PNP |
3,750 |
|
Datasheet | - | Module | Box | Active | Inductive | 1.575" (40mm) | PNP-NO, 3-Wire | - | Unshielded | Polyamide (PA) | 10V ~ 30V | Connector | -25°C ~ 85°C | IP69K | LED |
|

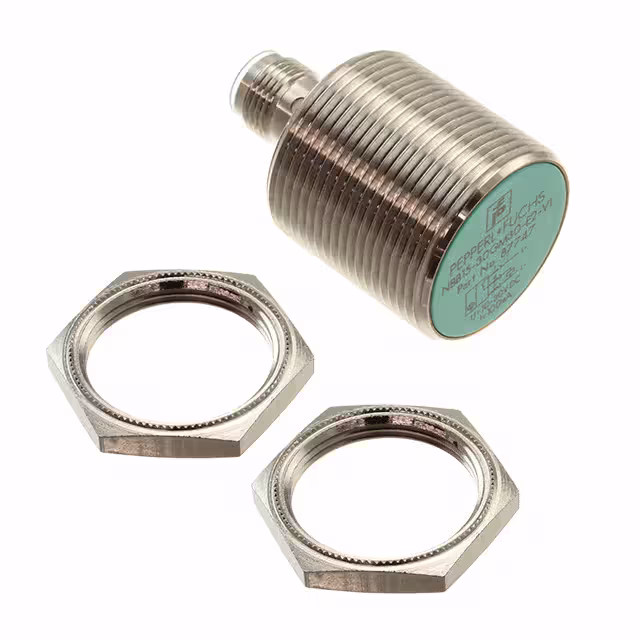

NBB15-30GM30-E2-V1INDUCTIVE SEN 15MM PNP |
3,568 |
|
Datasheet | - | Cylinder, Threaded - M30 | Box | Active | Inductive | 0.591" (15mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -40°C ~ 70°C | IP67 | LED |
|
NBB8-18GM50-E0-V1-MINDUCTIVE SEN 8MM NPN |
4,534 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.315" (8mm) | NPN-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 5V ~ 60V | Connector | -40°C ~ 85°C | IP68, IP69K | LED |
|
NCB8-18GM50-Z4-V1INDUCTIVE SEN 8MM NO |
4,235 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.315" (8mm) | SCR-NO, 2-Wire | - | Unshielded | Nickel-Plated Brass | 3.5V ~ 30V | Connector | -40°C ~ 70°C | IP67 | LED |
|
NCB8-18GM50-Z4INDUCTIVE SEN 8MM NO |
3,271 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.315" (8mm) | SCR-NO, 2-Wire | - | Unshielded | Nickel-Plated Brass | 3.5V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|
NBN8-12GM50-A2-V1INDUCTIVE SEN 8MM PNP |
2,652 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.315" (8mm) | PNP-NC/NO, 4-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|

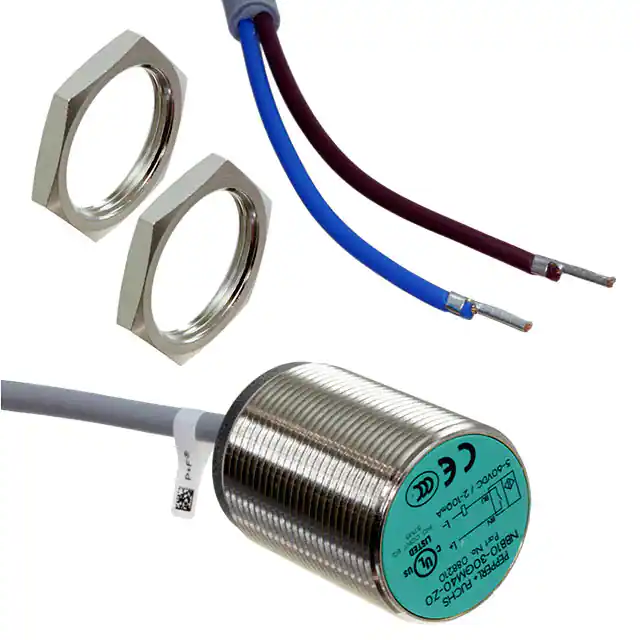

NBB10-30GM40-Z0INDUCTIVE SEN 20MM PNP |
3,285 |
|
Datasheet | - | Cylinder, Threaded - M30 | Box | Active | Inductive | 0.394" (10mm) | SCR-NO, 2-Wire | - | Unshielded | Nickel-Plated Brass | 5V ~ 60V | Cable | -25°C ~ 70°C | IP67 | LED |
|

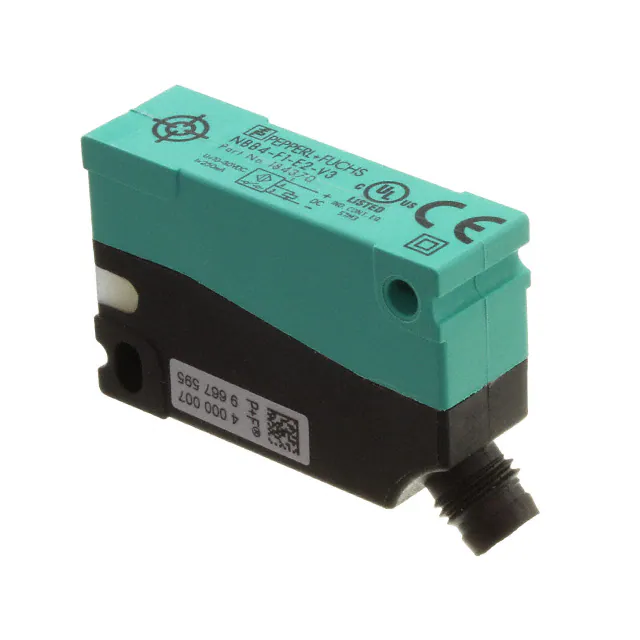

NBB4-F1-E2-V3INDUCTIVE SEN 4MM PNP |
4,079 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.157" (4mm) | PNP-NO, 3-Wire | - | Unshielded | Polyamide (PA) | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|

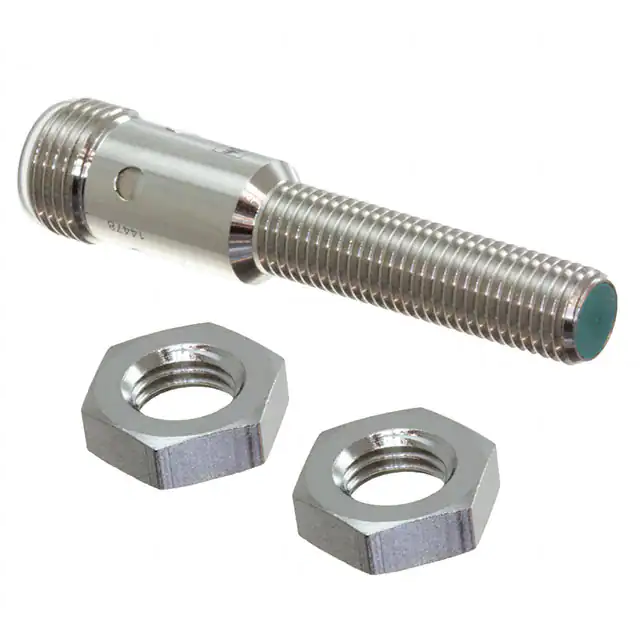

NBB2-8GM30-E2-V1INDUCTIVE SEN 2MM PNP |
2,480 |
|
Datasheet | - | Cylinder, Threaded - M8 | Box | Active | Inductive | 0.079" (2mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 5V ~ 30V | Connector | -40°C ~ 85°C | IP67 | LED |
|

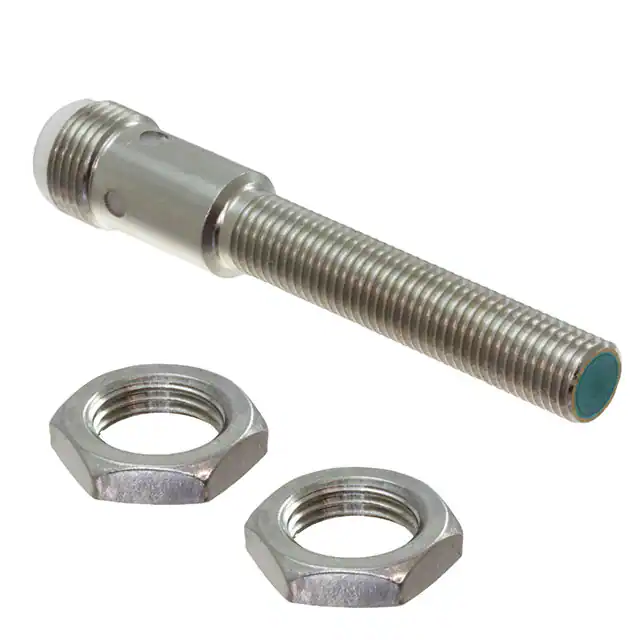

NBB2-8GM40-E2-V1INDUCTIVE SEN 2MM PNP |
2,768 |
|
Datasheet | - | Cylinder, Threaded - M8 | Box | Active | Inductive | 0.079" (2mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 5V ~ 30V | Connector | -40°C ~ 85°C | IP67 | LED |
