Proximity Sensors - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Sensor Type | Sensing Distance | Output Type | Response Frequency | Shielding | Material - Body | Voltage - Supply | Termination Style | Operating Temperature | Ingress Protection | Indicator |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

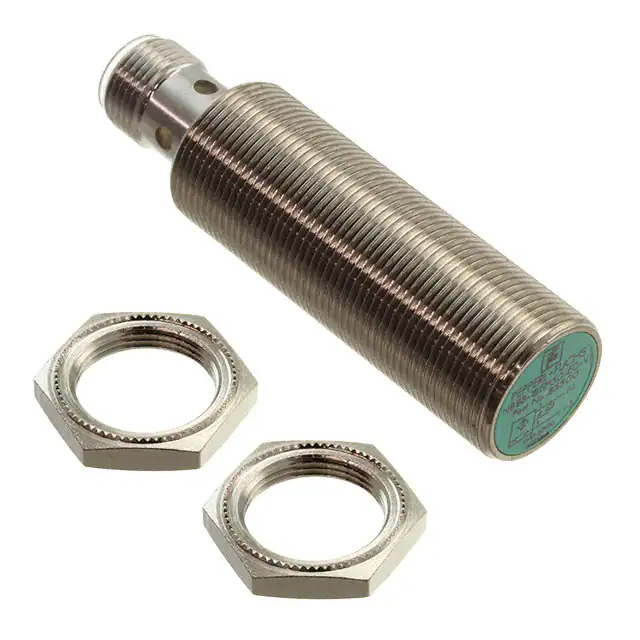

NBB8-18GM50-E0-V1INDUCTIVE SEN 8MM NPN |
1,046 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.315" (8mm) | NPN-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|
NBN12-18GM50-E2INDUCTIVE SEN 12MM PNP |
2,779 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.472" (12mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|
NCB8-18GM40-N0INDUCTIVE SEN 8MM NAMUR |
1,756 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.315" (8mm) | SCR-NC, 2-Wire | - | Unshielded | Stainless Steel | 8.2V | Cable | -25°C ~ 100°C | IP66, IP67 | LED |
|
NBB0.8-4M25-E2INDUCTIVE SEN 0.8MM PNP |
3,443 |
|
Datasheet | - | Cylinder | Box | Active | Inductive | 0.031" (0.8mm) | PNP-NO, 3-Wire | - | Unshielded | Stainless Steel | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|
NJ1.5-8GM-NINDUCTIVE SEN 1.5MM NAMUR |
2,950 |
|
Datasheet | - | Cylinder, Threaded - M8 | Box | Active | Inductive | 0.059" (1.5mm) | SCR-NC, 2-Wire | - | Unshielded | Stainless Steel | 8.2V | Cable | -25°C ~ 100°C | IP66, IP67 | No Indicator |
|
NJ5-18GK-NINDUCTIVE SEN 5MM NAMUR |
3,419 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.197" (5mm) | SCR-NC, 2-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 8.2V | Cable | -25°C ~ 100°C | IP66, IP68 | No Indicator |
|

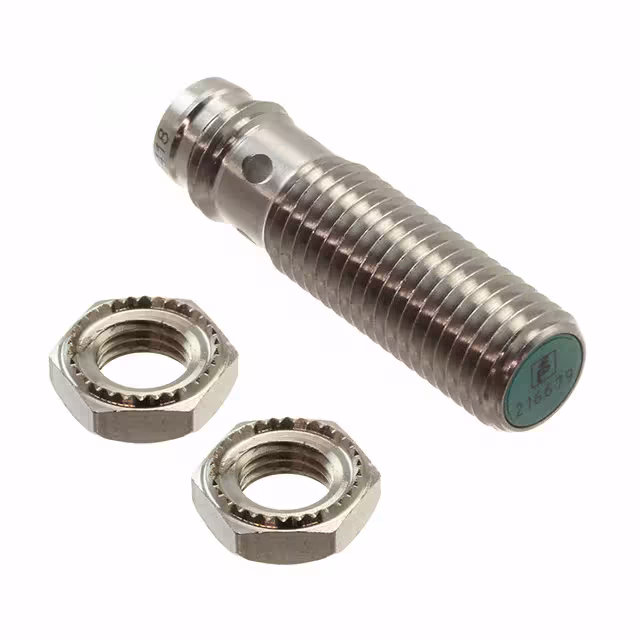

NBB2-8GH20-E2-V3INDUCTIVE SEN 2MM PNP |
4,970 |
|
Datasheet | - | Cylinder, Threaded - M8 | Box | Active | Inductive | 0.079" (2mm) | PNP-NO, 3-Wire | - | Unshielded | Stainless Steel | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|
NBB2-8GH40-E2-V3INDUCTIVE SEN 2MM PNP |
2,117 |
|
Datasheet | - | Cylinder, Threaded - M8 | Box | Active | Inductive | 0.079" (2mm) | PNP-NO, 3-Wire | - | Unshielded | Stainless Steel | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|
NBB0.8-5GM25-E0INDUCTIVE SEN 0.8MM NPN |
2,013 |
|
Datasheet | - | Cylinder, Threaded - M5 | Box | Active | Inductive | 0.031" (0.8mm) | PNP-NO, 3-Wire | - | Unshielded | Stainless Steel | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|
NBB0.8-5GM25-E2-V3INDUCTIVE SEN 0.8MM PNP |
1,048 |
|
Datasheet | - | Cylinder, Threaded - M5 | Box | Active | Inductive | 0.031" (0.8mm) | PNP-NO, 3-Wire | - | Unshielded | Stainless Steel | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
