Proximity Sensors - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Sensor Type | Sensing Distance | Output Type | Response Frequency | Shielding | Material - Body | Voltage - Supply | Termination Style | Operating Temperature | Ingress Protection | Indicator |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

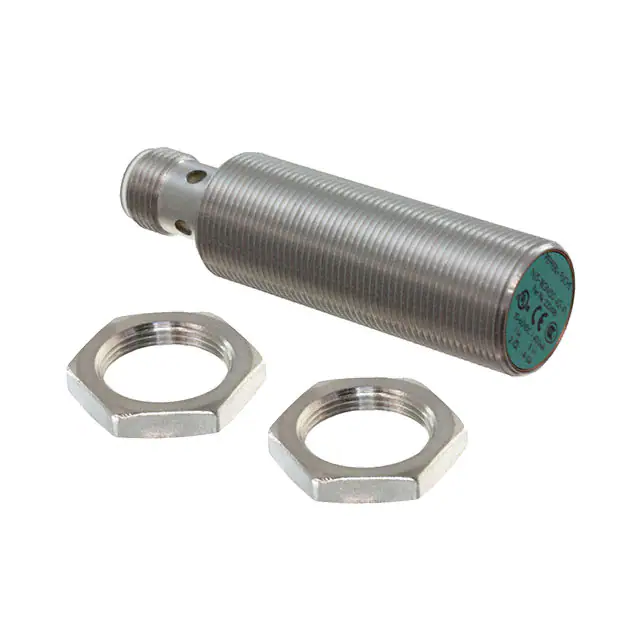

NBB5-18GM50-E2-V1INDUCTIVE SEN 5MM PNP |
1,357 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.197" (5mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -40°C ~ 70°C | IP67 | LED |
|
NBN8-18GM50-E2INDUCTIVE SEN 8MM PNP |
1,429 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.315" (8mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|
NBN40-L2-A2-V1INDUCTIVE SEN 40MM PNP |
2,221 |
|
Datasheet | - | Module | Box | Active | Inductive | 1.575" (40mm) | PNP-NC/NO, 4-Wire | - | Unshielded | Polyamide (PA) | 10V ~ 30V | Connector | -25°C ~ 85°C | IP69K | LED |
|
NJ2-12GK-NINDUCTIVE SEN 2MM NAMUR |
2,525 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.079" (2mm) | SCR-NC, 2-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 8.2V | Cable | -25°C ~ 100°C | IP66, IP68 | No Indicator |
|
NBB4-12GM30-E3-V1INDUCTIVE SEN 4.8MM PNP |
3,113 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.157" (4mm) | PNP-NC, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|

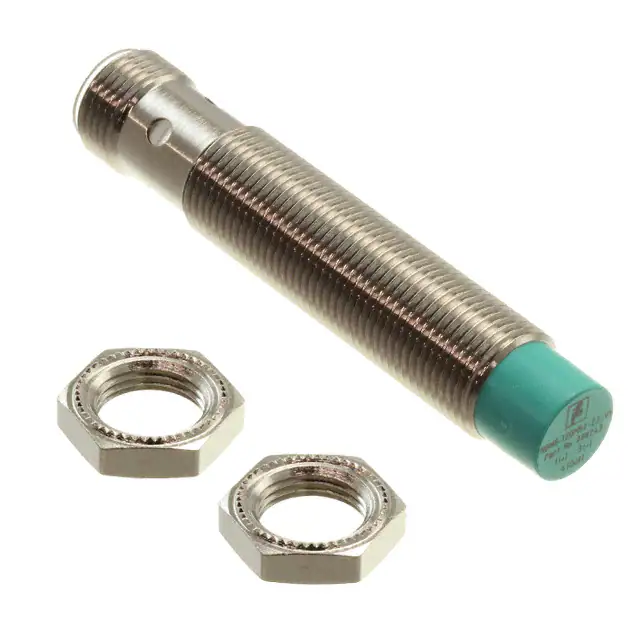

NBN8-12GM50-E2-V1INDUCTIVE SEN 8MM NON-FLUSH PNP |
2,991 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.315" (8mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -40°C ~ 70°C | IP67 | LED |
|
NBB20-L2M-E2-V1INDUCTIVE SEN 20MM PNP |
1,000 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.787" (20mm) | PNP-NO, 3-Wire | - | Unshielded | Polyamide (PA) | 10V ~ 30V | Connector | -25°C ~ 85°C | IP69K | LED |
|

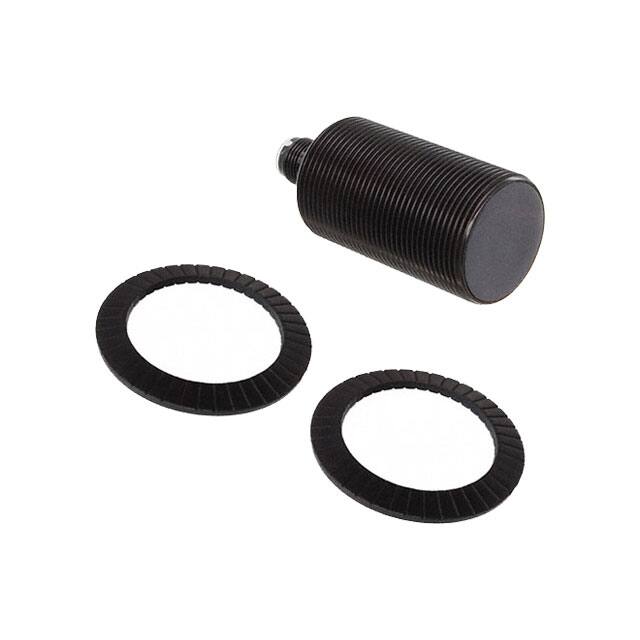

NBB10-30GM50-E2INDUCTIVE SEN 10MM PNP |
4,018 |
|
Datasheet | - | Cylinder, Threaded - M30 | Box | Active | Inductive | 0.394" (10mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|
NBB10-30GM50-E2-V1INDUCTIVE SEN 10MM PNP |
4,092 |
|
Datasheet | - | Cylinder, Threaded - M30 | Box | Active | Inductive | 0.394" (10mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -40°C ~ 70°C | IP67 | LED |
|

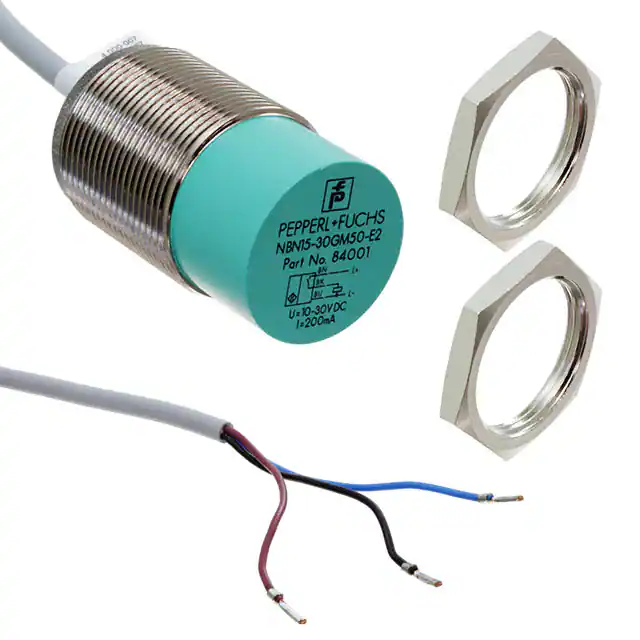

NBN15-30GM50-E2INDUCTIVE SEN 15MM PNP |
3,405 |
|
Datasheet | - | Cylinder, Threaded - M30 | Box | Active | Inductive | 0.591" (15mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
