Proximity Sensors - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Sensor Type | Sensing Distance | Output Type | Response Frequency | Shielding | Material - Body | Voltage - Supply | Termination Style | Operating Temperature | Ingress Protection | Indicator |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NBB2-8GM40-E2-V3INDUCTIVE SEN 2MM PNP |
1,403 |
|
Datasheet | - | Cylinder, Threaded - M8 | Box | Active | Inductive | 0.079" (2mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 5V ~ 30V | Connector | -40°C ~ 85°C | IP67 | LED |
|
NBN3-8GS40-E2-PURINDUCTIVE SENSOR NBN3-8GS40-E2-P |
1,710 |
|
Datasheet | - | Cylinder, Threaded - M8 | Box | Active | Inductive | 0.118" (3mm) | PNP-NO, 3-Wire | - | Unshielded | Stainless Steel | 5V ~ 30V | Cable | -40°C ~ 85°C | IP67 | LED |
|
NBB2-8GM50-E2INDUCTIVE SENSOR |
3,342 |
|
Datasheet | - | Cylinder, Threaded - M8 | Box | Active | Inductive | 0.079" (2mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 5V ~ 30V | Cable | -40°C ~ 85°C | IP67 | LED |
|

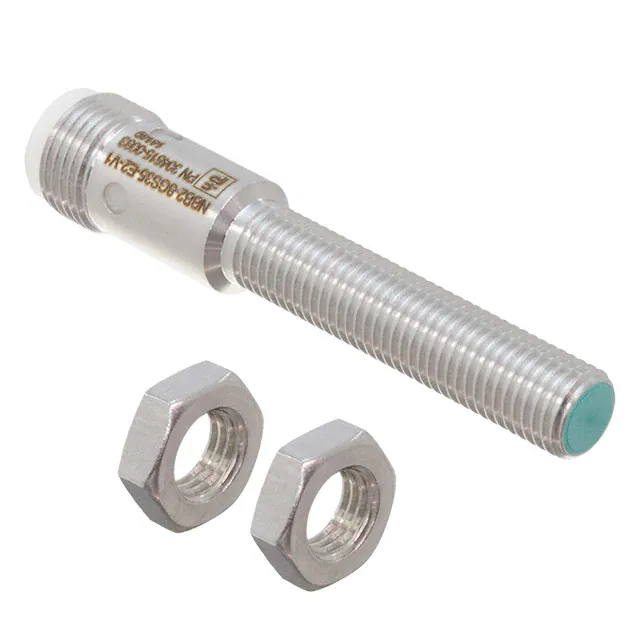

NBB2-8GS35-E2-V1INDUCTIVE SENSOR |
2,581 |
|
Datasheet | - | Cylinder, Threaded - M8 | Box | Active | Inductive | 0.079" (2mm) | PNP-NO, 3-Wire | - | Unshielded | Stainless Steel | 5V ~ 30V | Connector | -40°C ~ 85°C | IP67 | LED |
|

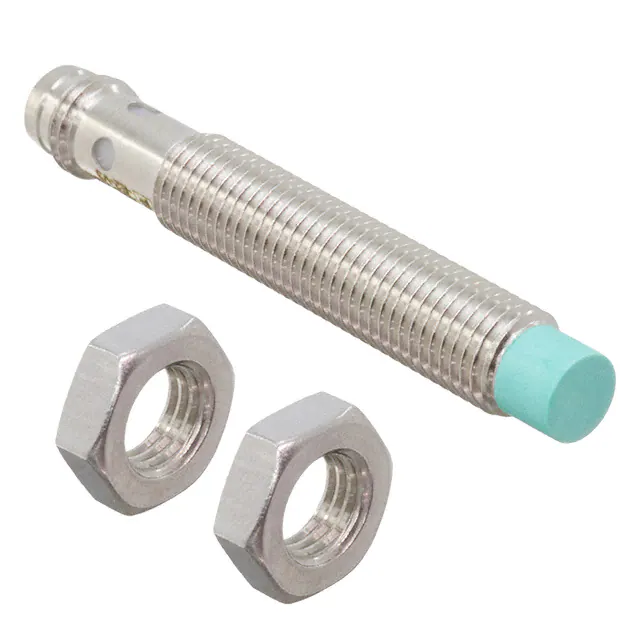

NBN3-8GM40-E2-V3INDUCTIVE SENSOR |
1,880 |
|
Datasheet | - | Cylinder, Threaded - M8 | Box | Active | Inductive | 0.118" (3mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 5V ~ 30V | Connector | -40°C ~ 85°C | IP67 | LED |
|
NBB2-8GM30-E2INDUCTIVE SEN 2MM PNP |
3,669 |
|
Datasheet | - | Cylinder, Threaded - M8 | Box | Active | Inductive | 0.079" (2mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 5V ~ 30V | Cable | -40°C ~ 85°C | IP67 | LED |
|
NCN4-12GM35-N0-V1INDUCTIVE SEN 4MM NAMUR |
2,173 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.157" (4mm) | SCR-NC, 2-Wire | - | Unshielded | Stainless Steel | 8.2V | Connector | -25°C ~ 100°C | IP67 | LED |
|
NBB5-F33-A2INDUCTIVE SEN 5MM PNP |
3,025 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.197" (5mm) | PNP-NC/NO, 4-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | No Indicator |
|
NBB4-12GM50-E3-MINDUCTIVE SEN 4MM PNP |
2,381 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.157" (4mm) | PNP-NC, 3-Wire | - | Unshielded | Nickel-Plated Brass | 5V ~ 60V | Cable | -40°C ~ 85°C | IP68, IP69K | LED |
|
NBB8-18GM30-E2INDUCTIVE SEN 8MM PNP |
4,484 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.315" (8mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
