Proximity Sensors - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Sensor Type | Sensing Distance | Output Type | Response Frequency | Shielding | Material - Body | Voltage - Supply | Termination Style | Operating Temperature | Ingress Protection | Indicator |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NMB15-30GM65-E2-V1INDUCTIVE SEN 15MM PNP |
2,265 |
|
Datasheet | - | Cylinder, Threaded - M30 | Box | Active | Inductive | 0.591" (15mm) | PNP-NO, 3-Wire | - | Unshielded | Stainless Steel | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67, IP68, IP69K | LED |
|
NMB5-18GM65-E2-C-FE-V1IND SEN 5MM PNP XYLAN COATED SS |
1,646 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.197" (5mm) | PNP-NO, 3-Wire | - | Unshielded | Stainless Steel | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67, IP68, IP69K | LED |
|

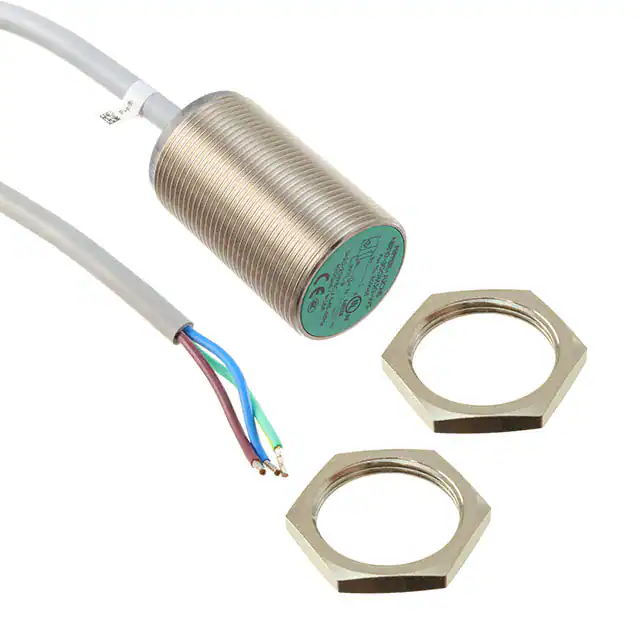

NBB10-30GM50-WSINDUCTIVE SEN 10MM NO |
4,435 |
|
Datasheet | - | Cylinder, Threaded - M30 | Box | Active | Inductive | 0.394" (10mm) | SCR-NO, 2-Wire | - | Unshielded | Nickel-Plated Brass | 20V ~ 253V | Cable | -25°C ~ 70°C | IP67 | LED |
|
NRN10-12GM40-E2-C-V1INDUCTIVE SEN 10MM PNP |
4,238 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.394" (10mm) | PNP-NO, 3-Wire | - | Unshielded | Polytetrafluoroethylene (PTFE) | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|
NBN8-18GM60-WSINDUCTIVE SEN 8MM NO |
1,064 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.315" (8mm) | SCR-NO, 2-Wire | - | Unshielded | Nickel-Plated Brass | 20V ~ 253V | Cable | -25°C ~ 70°C | IP67 | LED |
|

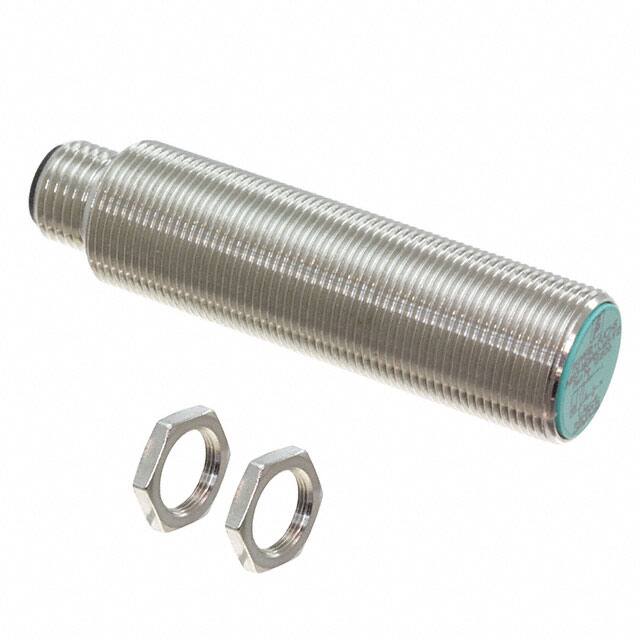

NBB5-18GM60-WS-V12INDUCTIVE SEN 5MM NO |
1,987 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.197" (5mm) | SCR-NO, 2-Wire | - | Unshielded | Nickel-Plated Brass | 20V ~ 253V | Connector | -25°C ~ 70°C | IP67 | LED |
|
NMB1.5-8GM35-E2-C-FE-150MM-V1IND SEN 1.5MM PNP XYLAN COATED |
2,256 |
|
Datasheet | - | Cylinder, Threaded - M8 | Box | Active | Inductive | 0.059" (1.5mm) | PNP-NO, 3-Wire | - | Unshielded | Stainless Steel | 10V ~ 30V | Cable with Connector | -25°C ~ 75°C | IP67 | LED |
|
NEB22-30GM60-E2-V1INDUCTIVE SEN 22MM PNP |
2,950 |
|
Datasheet | - | Cylinder, Threaded - M30 | Box | Active | Inductive | 0.079" (2mm) | PNP-NO, 3-Wire | - | Unshielded | Brass | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|
NJ4-12GM50-WSINDUCTIVE SEN 4MM NO |
2,145 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.157" (4mm) | SCR-NO, 2-Wire | - | Unshielded | Stainless Steel | 20V ~ 253V | Cable | -25°C ~ 70°C | IP67 | LED |
|
CBB8-18GS75-E2-V1CAPACITIVE SEN 8MM PNP |
2,226 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Capacitive | 0.039" ~ 0.315" (1mm ~ 8mm) | PNP-NO, 3-Wire | - | Unshielded | Stainless Steel | 10V ~ 30V | Connector | -25°C ~ 85°C | IP67 | LED |
