Proximity Sensors - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Sensor Type | Sensing Distance | Output Type | Response Frequency | Shielding | Material - Body | Voltage - Supply | Termination Style | Operating Temperature | Ingress Protection | Indicator |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

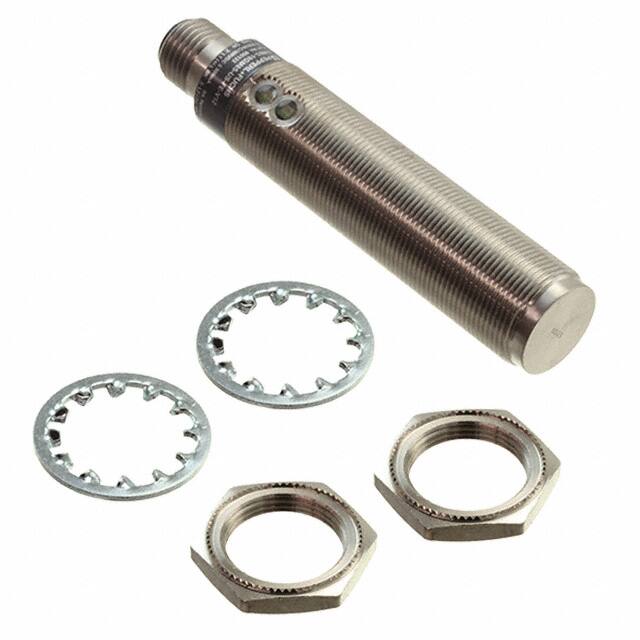

NMB5-18GM85-US-FE-V12INDUCTIVE SEN 5MM NO |
1,353 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.197" (5mm) | SCR-NO, 2-Wire | - | Unshielded | Stainless Steel | 20 VAC ~ 250 VAC, 20 VDC ~ 300 VDC | Connector | -25°C ~ 70°C | IP67 | LED |
|

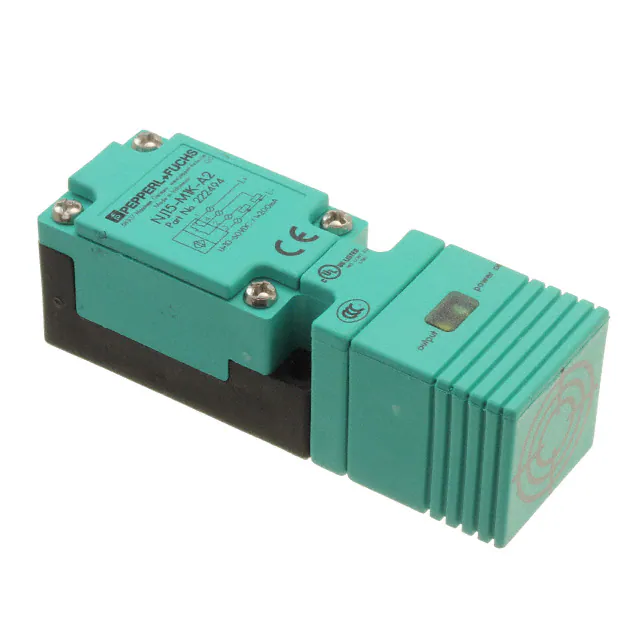

NJ15-M1K-A2INDUCTIVE SEN 15MM PNP |
3,414 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.591" (15mm) | PNP-NC/NO, 4-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 10V ~ 60V | - | -25°C ~ 70°C | IP67 | LED |
|
NBB8-18GM60-USINDUCTIVE SEN 20MM PNP |
3,592 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.315" (8mm) | SCR-NO, 2-Wire | - | Unshielded | Nickel-Plated Brass | 20 VAC ~ 250 VAC, 20 VDC ~ 300 VDC | Cable | -25°C ~ 70°C | IP67 | LED |
|
NBB15-30GM50-WSINDUCTIVE SEN 15MM NO |
2,718 |
|
Datasheet | - | Cylinder, Threaded - M30 | Box | Active | Inductive | 0.591" (15mm) | SCR-NO, 2-Wire | - | Unshielded | Nickel-Plated Brass | 20V ~ 253V | Cable | -25°C ~ 70°C | IP67 | LED |
|
3RG4013-0KB00-PFINDUCTIVE SEN 5MM NO |
1,812 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.197" (5mm) | SCR-NO, 2-Wire | 300Hz | Unshielded | Brass | 20 VAC ~ 265 VAC, 20 VDC ~ 320 VDC | Cable | -25°C ~ 85°C | IP67 | LED |
|

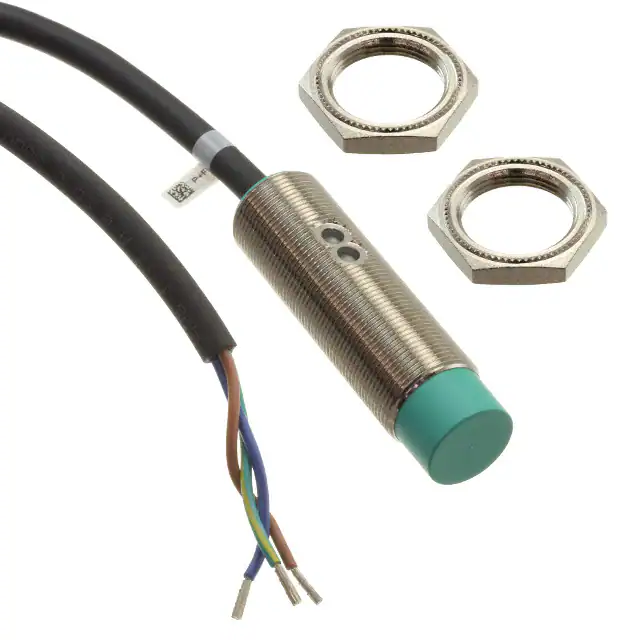

NBN15-18GM60-USINDUCTIVE SEN 15MM NO |
3,909 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.591" (15mm) | SCR-NO, 2-Wire | - | Unshielded | Nickel-Plated Brass | 20 VAC ~ 250 VAC, 20 VDC ~ 300 VDC | Cable | -25°C ~ 70°C | IP67 | LED |
|
NCB50-FP-A2-C-P3-V1INDUCTIVE SQU SEN 50MM PNP |
4,813 |
|
Datasheet | - | Module | Box | Active | Inductive | 1.969" (50mm) | PNP-NC/NO, 4-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 10V ~ 60V | Connector | -25°C ~ 70°C | IP68 | LED |
|

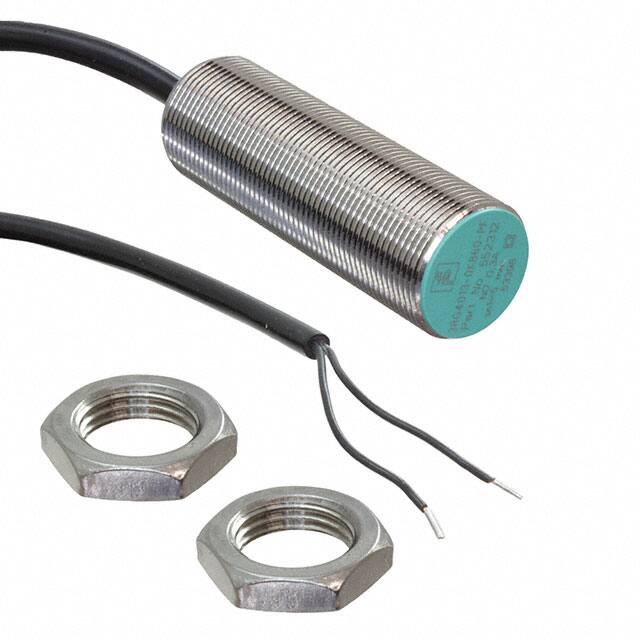

3RG4013-0KB60-PFINDUCTIVE SEN 5MM NO |
3,269 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.197" (5mm) | SCR-NO, 2-Wire | 300Hz | Unshielded | Stainless Steel | 20 VAC ~ 265 VAC, 20 VDC ~ 320 VDC | Cable | -25°C ~ 85°C | IP67 | LED |
|

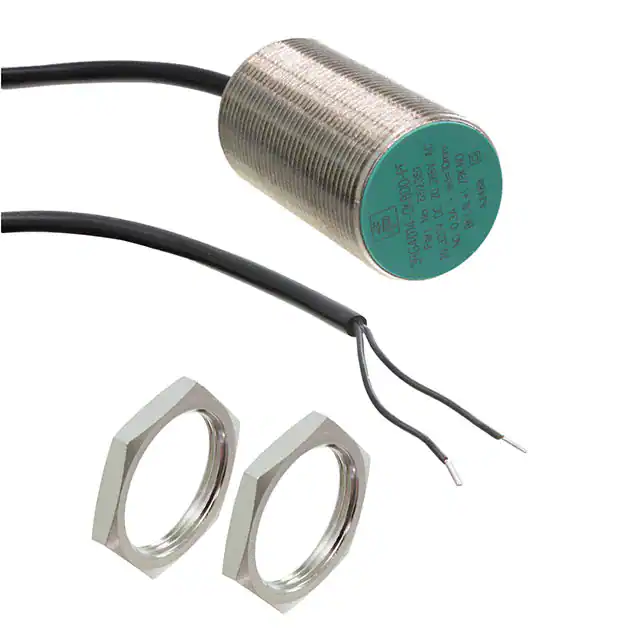

3RG4014-0KB00-PFINDUCTIVE SEN 10MM NO |
1,279 |
|
Datasheet | - | Cylinder, Threaded - M30 | Box | Active | Inductive | 0.394" (10mm) | SCR-NO, 2-Wire | 200Hz | Unshielded | Brass | 20 VAC ~ 265 VAC, 20 VDC ~ 320 VDC | Cable | -25°C ~ 85°C | IP67 | LED |
|
NCB50-FP-E2-P4INDUCTIVE SEN 50MM PNP |
4,120 |
|
Datasheet | - | Module | Box | Active | Inductive | 1.969" (50mm) | PNP-NO, 3-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 10V ~ 60V | - | -25°C ~ 70°C | IP68 | LED |
