Proximity Sensors - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Sensor Type | Sensing Distance | Output Type | Response Frequency | Shielding | Material - Body | Voltage - Supply | Termination Style | Operating Temperature | Ingress Protection | Indicator |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NJ2-V3-NINDUCTIVE SEN 2MM NAMUR |
3,848 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.079" (2mm) | SCR-NC, 2-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 8.2V | Cable | -25°C ~ 100°C | IP67 | No Indicator |
|
NBB2-V3-E2INDUCTIVE SEN 2MM PNP |
3,571 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.079" (2mm) | PNP-NO, 3-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|
NBB2-12GM50-E0INDUCTIVE SEN 2MM NPN |
4,331 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.079" (2mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|
NBB2-12GM50-E0-V1INDUCTIVE SEN 2MM NPN |
3,294 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.079" (2mm) | NPN-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|

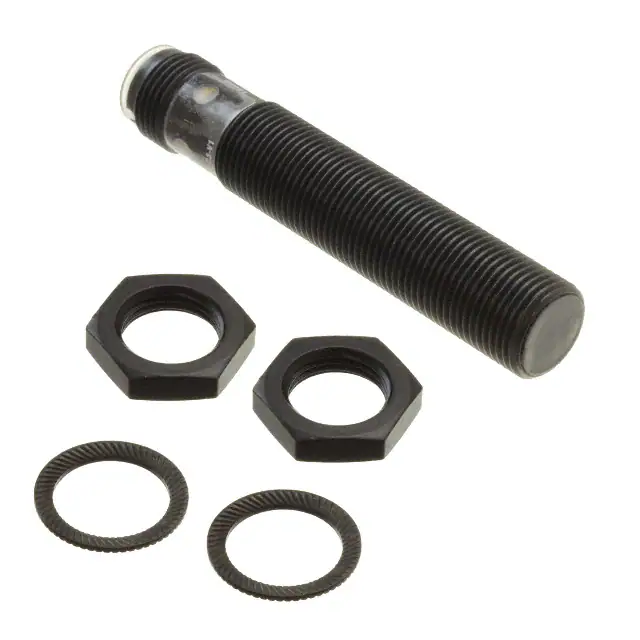

NBB2-12GM50-E2-C3-V1INDUCTIVE SEN 2MM PNP PTFE COAT |
1,504 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.079" (2mm) | PNP-NO, 3-Wire | - | Unshielded | Polytetrafluoroethylene (PTFE) | 10V ~ 30V | Connector | -25°C ~ 70°C | IP67 | LED |
|

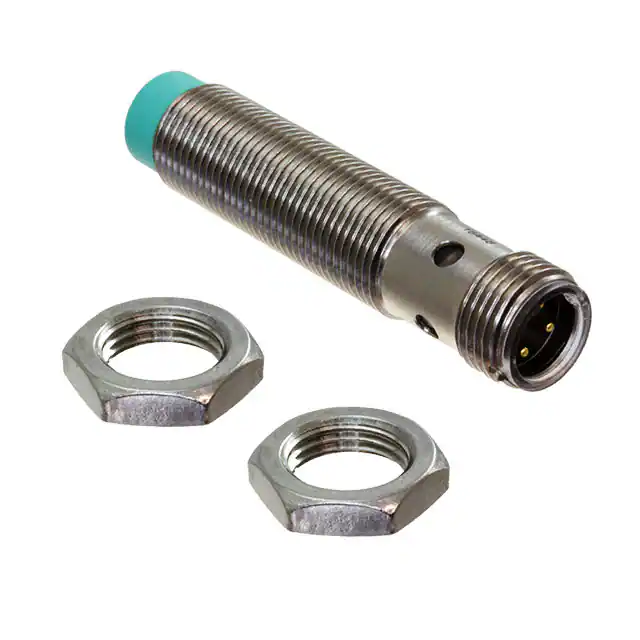

NBN4-12GM40-Z0-V1INDUCTIVE SEN 4MM NO |
2,998 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.157" (4mm) | SCR-NO, 2-Wire | - | Unshielded | Nickel-Plated Brass | 5V ~ 60V | Connector | -25°C ~ 70°C | IP67 | LED |
|
NBN40-L2M-A2-V1INDUCTIVE SEN 40MM PNP |
1,530 |
|
Datasheet | - | Module | Box | Active | Inductive | 1.575" (40mm) | PNP-NC/NO, 4-Wire | - | Unshielded | Polyamide (PA) | 10V ~ 30V | Connector | -25°C ~ 85°C | IP69K | LED |
|

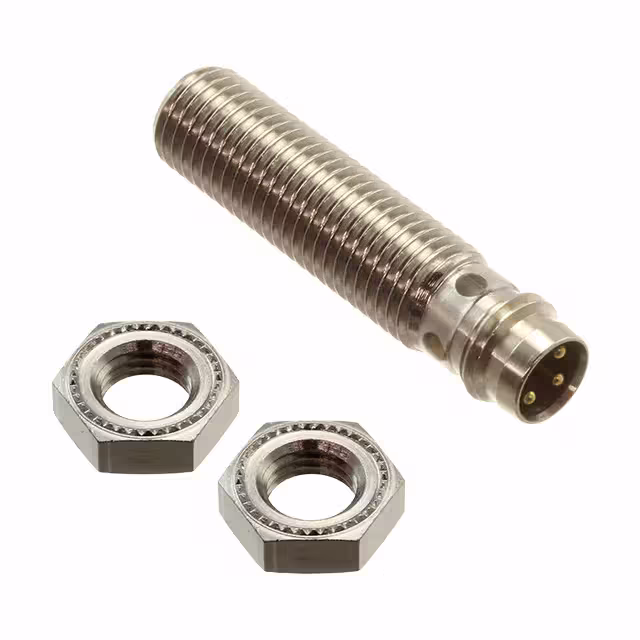

NBB2-8GM25-E3-V3INDUCTIVE SEN 2MM PNP |
1,088 |
|
Datasheet | - | Cylinder, Threaded - M8 | Box | Active | Inductive | 0.079" (2mm) | PNP-NC, 3-Wire | - | Unshielded | Nickel-Plated Brass | 5V ~ 30V | Connector | -40°C ~ 85°C | IP67 | LED |
|

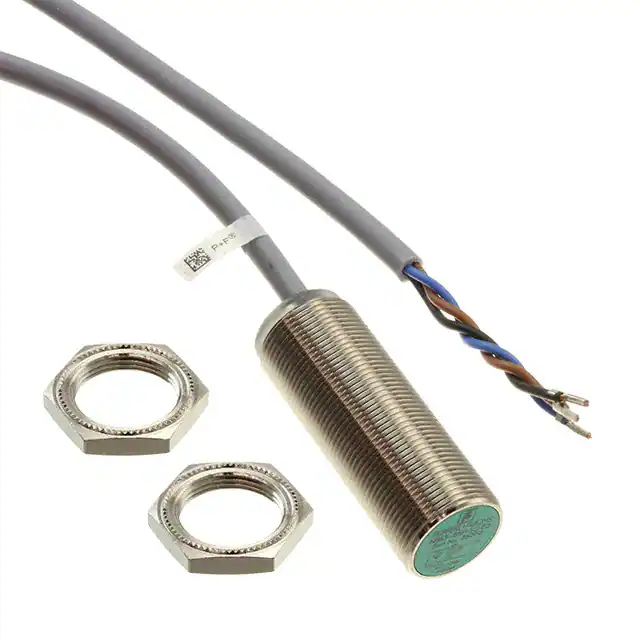

NBB5-18GM50-E0INDUCTIVE SEN 5MM NPN |
1,635 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.197" (5mm) | NPN-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|

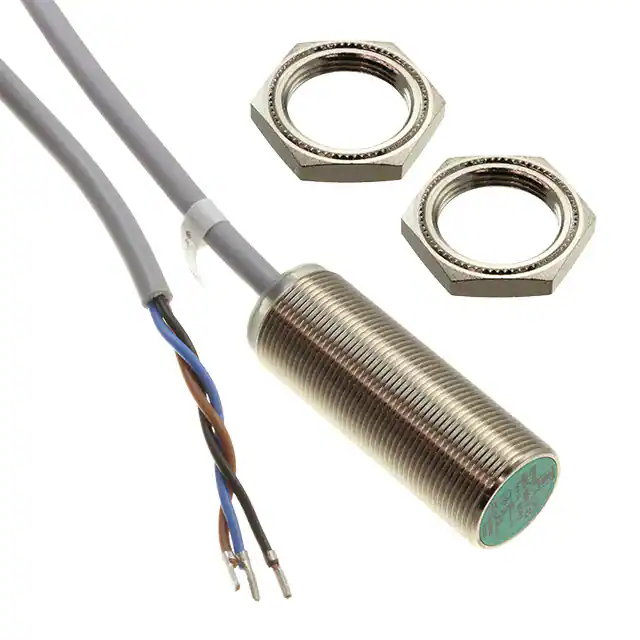

NBB5-18GM50-E2INDUCTIVE SEN 5MM PNP |
1,452 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.197" (5mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
