Proximity Sensors - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Sensor Type | Sensing Distance | Output Type | Response Frequency | Shielding | Material - Body | Voltage - Supply | Termination Style | Operating Temperature | Ingress Protection | Indicator |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NJ40+U2+E2INDUCTIVE DC |
1,851 |
|
Datasheet | - | Module | Box | Active | Inductive | 1.575" (40mm) | PNP-NO, 3-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 10V ~ 60V | Connector | -25°C ~ 70°C | IP68 | LED |
|
NBB1.5-F79-E0INDUCTIVE SEN 1.5MM NPN |
3,110 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.059" (1.5mm) | NPN-NO, 3-Wire | - | Unshielded | Polyamide (PA) | 5V ~ 30V | Cable Leads | -25°C ~ 70°C | IP67 | No Indicator |
|
NBB1.5-8GM40-Z0INDUCTIVE SEN 1.5MM NO |
3,560 |
|
Datasheet | - | Cylinder, Threaded - M8 | Box | Active | Inductive | 0.059" (1.5mm) | SCR-NO, 2-Wire | - | Unshielded | Stainless Steel | 5V ~ 60V | Cable | -25°C ~ 70°C | IP67 | LED |
|
NBB4-12GM50-E2INDUCTIVE SEN 4MM PNP |
3,342 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.157" (4mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|
NBB10-30GM40-Z0-V1INDUCTIVE SEN 10MM NO |
1,028 |
|
Datasheet | - | Cylinder, Threaded - M30 | Box | Active | Inductive | 0.394" (10mm) | SCR-NO, 2-Wire | - | Unshielded | Nickel-Plated Brass | 5V ~ 60V | Connector | -25°C ~ 70°C | IP67 | LED |
|
NBN3-8GM50-E0INDUCTIVE SENSOR |
2,116 |
|
Datasheet | - | Cylinder, Threaded - M8 | Box | Active | Inductive | 0.118" (3mm) | NPN-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 5V ~ 30V | Cable | -40°C ~ 85°C | IP67 | LED |
|

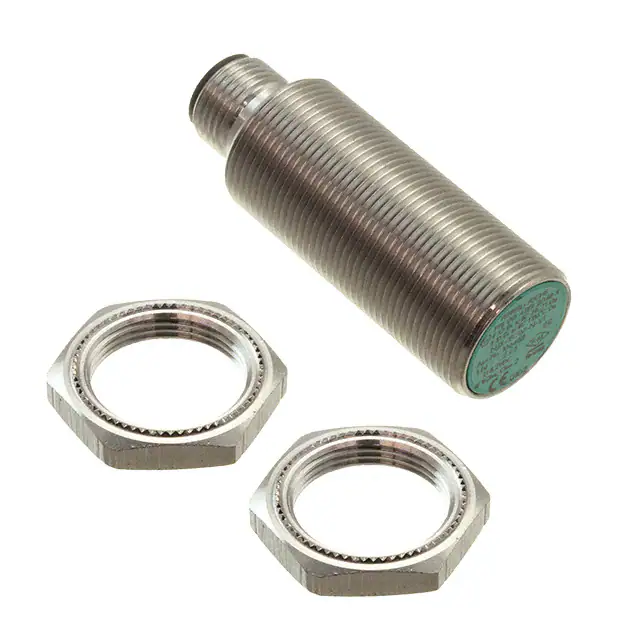

NJ5-18GM-N-V1INDUCTIVE SEN 5MM NAMUR |
1,613 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Active | Inductive | 0.197" (5mm) | SCR-NC, 2-Wire | - | Unshielded | Stainless Steel | 5V ~ 25V | Connector | -25°C ~ 100°C | IP67 | No Indicator |
|

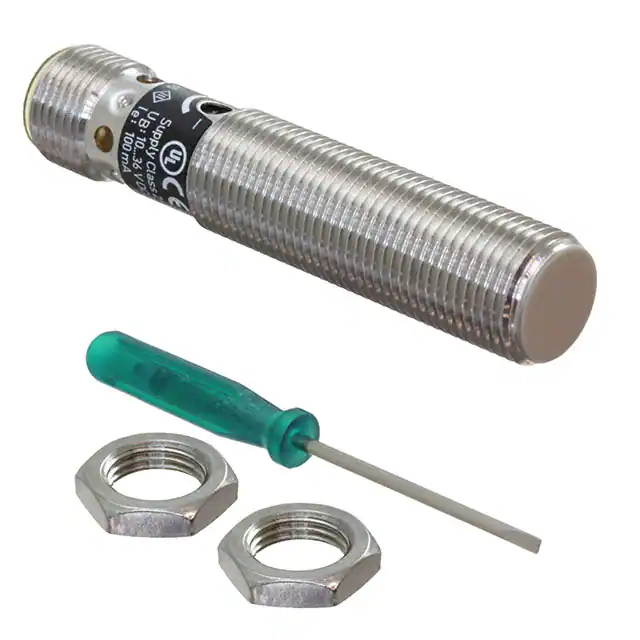

CBB4-12GH60-E2-V1INDUCTIVE SEN 4MM PNP |
1,144 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Capacitive | 0.157" (4mm) | PNP-NO, 3-Wire | - | Unshielded | Stainless Steel | 10V ~ 36V | Connector | -25°C ~ 70°C | IP65 | LED |
|
NCB2-V3-N0INDUCTIVE SEN 2MM NAMUR |
1,234 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.079" (2mm) | SCR-NC, 2-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 8.2V | Cable | -25°C ~ 100°C | IP67 | LED |
|
NBN4-F29-A0INDUCTIVE SEN 4MM NPN |
4,747 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.157" (4mm) | NPN-NC/NO, 4-Wire | - | Unshielded | Polyphenylene Sulfide (PPS) | 4.75V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
