Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

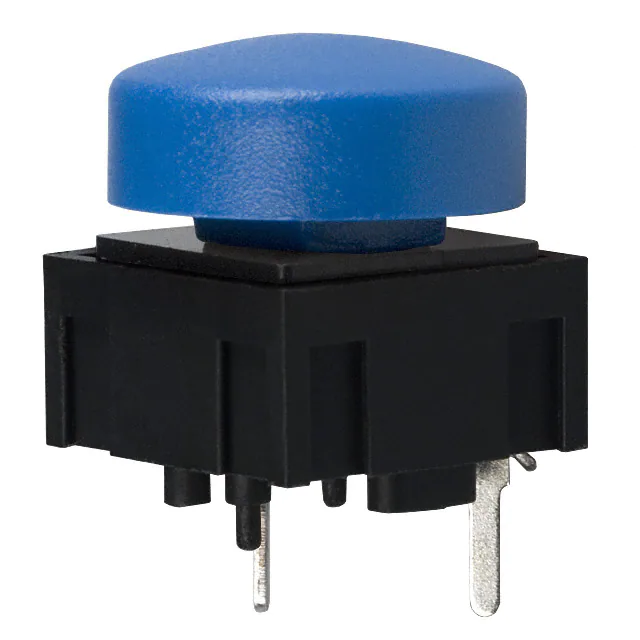

320.02E11.08BLUSWITCH TACT SPST-NO 0.025A 50V |
1,215 |
|
Datasheet | 320 | Bulk | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Round Button | Through Hole | 14.40mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Blue Cap | -20°C ~ 70°C |
|
TL3275AF160BQSWITCH TACTILE SPST-NO 0.05A 12V |
946 |
|
Datasheet | TL3275 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 3.90mm | - | Top Actuated | SMD (SMT) Tab | 6.40mm x 3.55mm | Illuminated | LED, Blue | - | 160gf | - | - | -40°C ~ 85°C |
|
TL1270F160GYQBTSWITCH TACTILE SPST-NO 0.05A 12V |
174 |
|
Datasheet | TL1270 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole, Right Angle | - | 6.62mm | Side Actuated | PC Pin | 4.50mm x 4.95mm | Illuminated | LED, Green/Yellow | 2.3 VDC | 160gf | - | - | -40°C ~ 85°C |
|
|
TL1275CA2WA500QPRSWITCH TACTILE SPST-NO 0.05A 12V |
522 |
|
Datasheet | TL1275 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Flush | Panel Mount | 1.60mm | - | Top Actuated | Wire Leads with Connector | 19.00mm Dia | Illuminated | LED, Red | - | 350gf | - | - | -25°C ~ 70°C |
|
TL1275CA2WA500QPBSWITCH TACTILE SPST-NO 0.05A 12V |
832 |
|
Datasheet | TL1275 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Flush | Panel Mount | 1.60mm | - | Top Actuated | Wire Leads with Connector | 19.00mm Dia | Illuminated | LED, Blue | - | 350gf | - | - | -25°C ~ 70°C |
|
|
TL1105F160QWITHSTRAIGHTSWITCH TACTILE SPST-NO 0.05A 12V |
2,110 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
|
TL1105WF160QZBRACKETSWITCH TACTILE SPST-NO 0.05A 12V |
11,829 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 3.15mm | Side Actuated | PC Pin | 7.10mm x 6.55mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
TL1016ABF160QGSWITCH TACTILE SPST-NO 0.05A 12V |
13,326 |
|
Datasheet | TL1016 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | 3.55mm | Side Actuated | Gull Wing | 4.70mm x 2.90mm | - | - | - | 160gf | - | - | -40°C ~ 85°C |
|
TLE1105BF160QSWITCH TACTILE SPST-NO 0.05A 12V |
4,555 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | Grounding Pin | -20°C ~ 70°C |
|
|
TL1105JAF100Q1RBLKSWITCH TACTILE SPST-NO 0.05A 12V |
1,460 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole, Right Angle | - | 12.45mm | Side Actuated | PC Pin | 7.20mm x 6.50mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C |
