Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL1220S3NNBWTRIANGSWITCH TACTILE SPST-NO 0.05A 12V |
947 |
|
Datasheet | TL1220 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Through Hole | 14.00mm | - | Top Actuated | PC Pin | 7.60mm x 6.00mm | Illuminated | LED, White | 3.6 VDC | 180gf | - | - | -40°C ~ 85°C |
|
TL6215VF200RETSWITCH TACTILE SPST-NO 0.05A 12V |
823 |
|
Datasheet | TL6215 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 10.70mm | - | Top Actuated | PC Pin | 7.70mm x 6.37mm | Illuminated | LED, Red | 1.95 VDC | 200gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
TL6215VF200GETSWITCH TACTILE SPST-NO 0.05A 12V |
275 |
|
Datasheet | TL6215 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 10.70mm | - | Top Actuated | PC Pin | 7.70mm x 6.37mm | Illuminated | LED, Green | 2.1 VDC | 200gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
TL1250F180BQRCLRSWITCH TACTILE SPST-NO 0.05A 12V |
589 |
|
Datasheet | TL1250 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole, Right Angle | - | 10.70mm | Side Actuated | PC Pin | 8.30mm x 10.30mm | Illuminated | LED, Blue | 4 VDC | 180gf | - | Tactile Feedback | -20°C ~ 70°C |
|
320.03E11.08GRYSWITCH TACT SPST-NO 0.025A 50V |
839 |
|
Datasheet | 320 | Bulk | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Round Button | Through Hole | 18.50mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Gray Cap | -20°C ~ 70°C |
|
TL3200AF160GRQSWITCH TACTILE SPST-NO 0.05A 12V |
14,020 |
|
Datasheet | TL3200 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 2.50mm | - | Top Actuated | Gull Wing | 6.80mm x 4.50mm | Illuminated | LED, Green/Red | 2.3 VDC | 160gf | - | - | -25°C ~ 85°C |
|
TL6215VF200BETSWITCH TACTILE SPST-NO 0.05A 12V |
582 |
|
Datasheet | TL6215 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 10.70mm | - | Top Actuated | PC Pin | 7.70mm x 6.37mm | Illuminated | LED, Blue | 3.3 VDC | 200gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
|
TL3253BBABBAF160QSWITCH TACT SPSTX2 0.05A 12V |
915 |
|
Datasheet | TL3253 | Bulk | Active | SPST x 2 | Off-Mom | 0.05A @ 12VDC | Dual | Through Hole, Right Angle | - | 8.55mm | Side Actuated | PC Pin | 8.40mm x 10.50mm | Illuminated | LED, Blue/Blue | 3.3 VDC | 160gf | - | - | -20°C ~ 70°C |
|
TL1270F160GYQATSWITCH TACTILE SPST-NO 0.05A 12V |
381 |
|
Datasheet | TL1270 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole, Right Angle | - | 5.62mm | Side Actuated | PC Pin | 4.50mm x 4.95mm | Illuminated | LED, Green/Yellow | 2.3 VDC | 160gf | - | - | -40°C ~ 85°C |
|

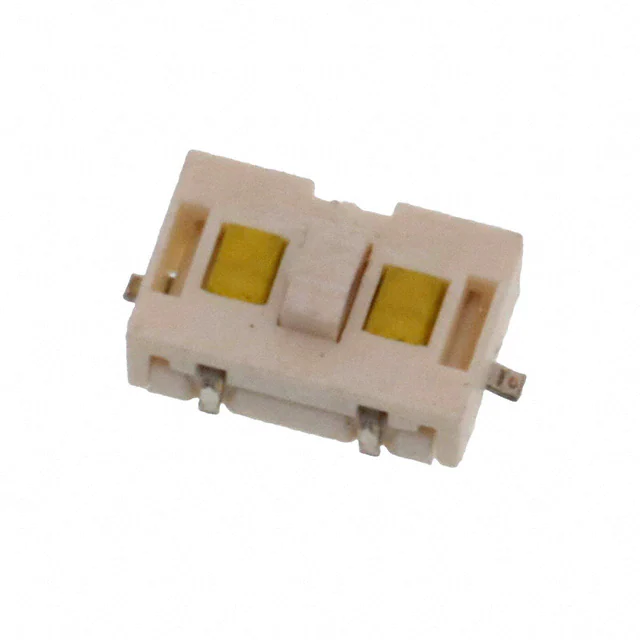

TL3200AF160WWQSWITCH TACTILE SPST-NO 0.05A 12V |
12,959 |
|
Datasheet | TL3200 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 2.50mm | - | Top Actuated | Gull Wing | 6.80mm x 4.50mm | Illuminated | LED, White/White | 3.7 VDC | 160gf | - | - | -25°C ~ 85°C |
