Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL3265RQTCLRSWITCH TACTILE SPST-NO 0.05A 12V |
436 |
|
Datasheet | TL3265 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Surface Mount | 12.70mm | - | Top Actuated | Gull Wing | 7.00mm x 6.80mm | Illuminated | LED, Red | - | 160gf | - | - | -40°C ~ 85°C |
|
TL6215VF200GBTSWITCH TACTILE SPST-NO 0.05A 12V |
537 |
|
Datasheet | TL6215 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 8.80mm | - | Top Actuated | PC Pin | 7.70mm x 6.37mm | Illuminated | LED, Green | 2.1 VDC | 200gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
TL6200BBF300QGSWITCH TACTILE SPST-NO 0.05A 24V |
650 |
|
Datasheet | TL6200 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Round Button | Surface Mount | 8.00mm | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | Black Cap | -40°C ~ 85°C |
|
|
TL3265BQSCLRSWITCH TACTILE SPST-NO 0.05A 12V |
1,320 |
|
Datasheet | TL3265 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Surface Mount | 12.00mm | - | Top Actuated | Gull Wing | 7.00mm x 6.80mm | Illuminated | LED, Blue | - | 160gf | - | - | -40°C ~ 85°C |
|
TL3200AF160RRQSWITCH TACTILE SPST-NO 0.05A 12V |
1,513 |
|
Datasheet | TL3200 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 2.50mm | - | Top Actuated | Gull Wing | 6.80mm x 4.50mm | Illuminated | LED, Red/Red | 2.3 VDC | 160gf | - | - | -25°C ~ 85°C |
|
|
TL3265BQTCLRSWITCH TACTILE SPST-NO 0.05A 12V |
1,170 |
|
Datasheet | TL3265 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Surface Mount | 12.70mm | - | Top Actuated | Gull Wing | 7.00mm x 6.80mm | Illuminated | LED, Blue | - | 160gf | - | - | -40°C ~ 85°C |
|

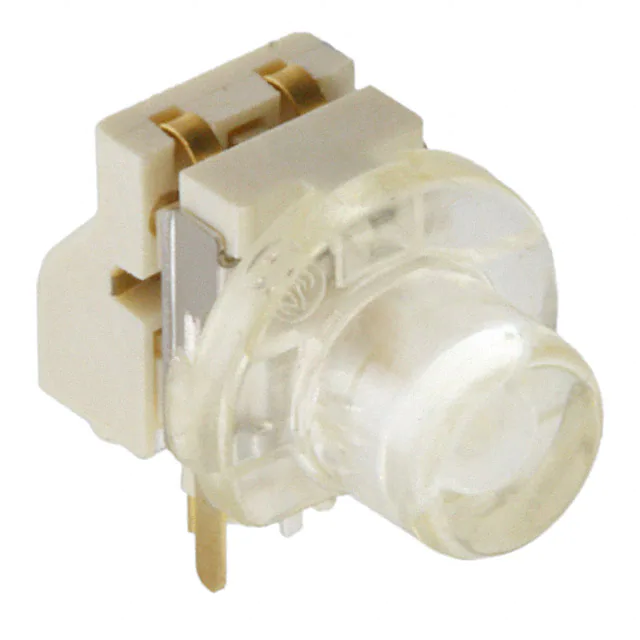

TL1270F160BLQATSWITCH TACTILE SPST-NO 0.05A 12V |
534 |
|
Datasheet | TL1270 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole, Right Angle | - | 5.62mm | Side Actuated | PC Pin | 4.50mm x 4.95mm | Illuminated | LED, Blue | 3.6 VDC | 160gf | - | - | -40°C ~ 85°C |
|
TL6210AF200BQSWITCH TACTILE SPST-NO 0.05A 12V |
955 |
|
Datasheet | TL6210 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 3.72mm | - | Top Actuated | Gull Wing | 6.20mm x 4.60mm | Illuminated | LED, Blue | 3.3 VDC | 200gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
TL3305BF100QGTACT, 50MA, SPST-NO, SURFACE MOU |
2,923 |
|
Datasheet | TL | Tape & Reel (TR) | Active | SPDT | On-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | Gull Wing | 4.50mm x 4.50mm | Non-Illuminated | - | - | 100gf | - | - | -40°C ~ 105°C |
|
TL1105FF100QSWITCH TACTILE SPST-NO 0.05A 12V |
4,326 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 7.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C |
