Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLE1105SPF160RSWITCH TACTILE SPST-NO 0.05A 50V |
417 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Plunger for Cap | Through Hole | 7.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | Grounding Pin | -20°C ~ 70°C |
|
TL1250F280ARNSWITCH TACTILE SPST-NO 0.05A 12V |
1,088 |
|
Datasheet | TL1250 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole, Right Angle | - | 6.40mm | Side Actuated | PC Pin | 8.30mm x 10.30mm | Non-Illuminated | - | - | 280gf | - | Tactile Feedback | -20°C ~ 70°C |
|
TL3240F160YTSWITCH TACTILE SPST-NO 0.05A 12V |
2,679 |
|
Datasheet | TL3240 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 7.80mm | - | Top Actuated | Gull Wing | 6.10mm x 6.10mm | Illuminated | LED, Yellow | 2 VDC | 160gf | - | - | -25°C ~ 70°C |
|
|
320E11WHTGRYSTOPSWITCH TACT SPST-NO 0.025A 50V |
1,026 |
|
Datasheet | 320 | Bulk | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Square Button | Through Hole | 9.95mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | - | -20°C ~ 70°C |
|
|
320E11WHTGRYARROWDOWNSWITCH TACT SPST-NO 0.025A 50V |
1,020 |
|
Datasheet | 320 | Bulk | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Square Button | Through Hole | 9.95mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | - | -20°C ~ 70°C |
|

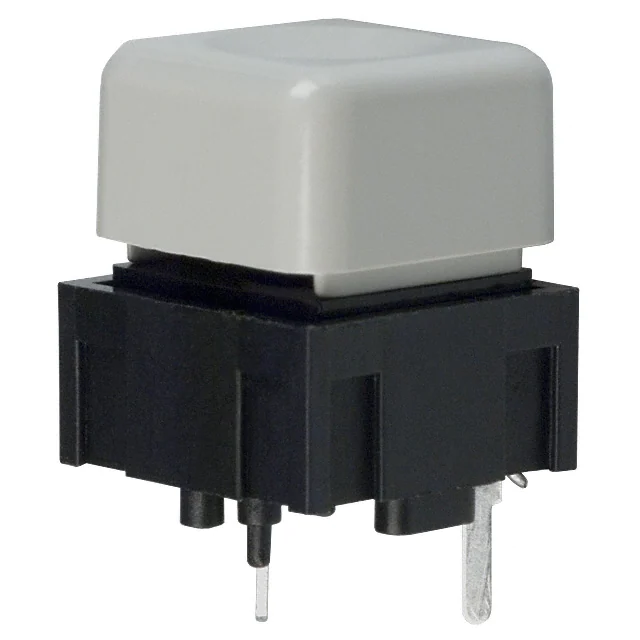

320.02E11.094GRYSWITCH TACT SPST-NO 0.025A 50V |
475 |
|
Datasheet | 320 | Bulk | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Square Button | Through Hole | 15.50mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Gray Cap | -20°C ~ 70°C |
|
TL6215VF200RGTSWITCH TACTILE SPST-NO 0.05A 12V |
720 |
|
Datasheet | TL6215 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Oval Button | Through Hole | 10.50mm | - | Top Actuated | PC Pin | 7.70mm x 6.37mm | Illuminated | LED, Red | 1.95 VDC | 200gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|

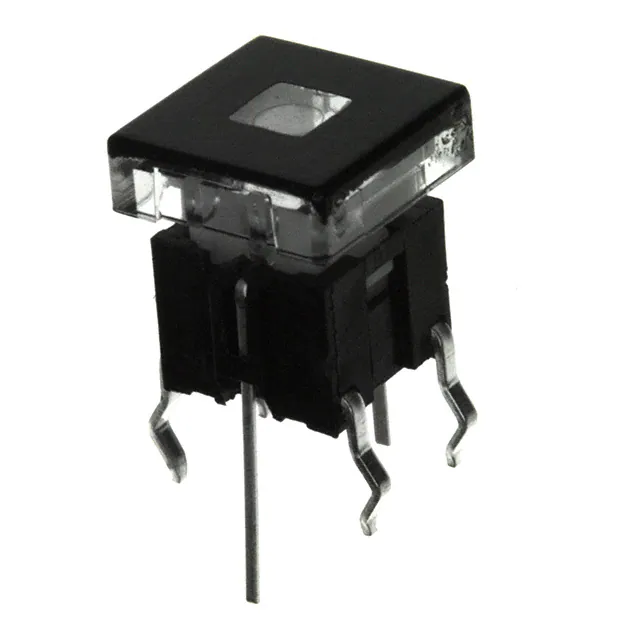

TL1240YQ2JBLKSWITCH TACTILE SPST-NO 0.05A 12V |
145 |
|
Datasheet | TL1240 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Square Button | Through Hole | 8.20mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | LED, Yellow | 2.8 VDC | 160gf | - | - | -20°C ~ 70°C |
|
TL6215VF200RBTSWITCH TACTILE SPST-NO 0.05A 12V |
482 |
|
Datasheet | TL6215 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 8.80mm | - | Top Actuated | PC Pin | 7.70mm x 6.37mm | Illuminated | LED, Red | 1.95 VDC | 200gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
TL1220S1BBBRNSWITCH TACTILE SPST-NO 0.05A 12V |
545 |
|
Datasheet | TL1220 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Square Button | Through Hole | 9.90mm | - | Top Actuated | PC Pin | 7.60mm x 6.00mm | Illuminated | LED, Red | 2.3 VDC | 180gf | - | Tactile Feedback | -40°C ~ 85°C |
