Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
320E11BLUSWITCH TACT SPST-NO 0.025A 50V |
114 |
|
Datasheet | 320 | Bulk | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Square Button | Through Hole | 9.95mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Blue Cap | -20°C ~ 70°C |
|

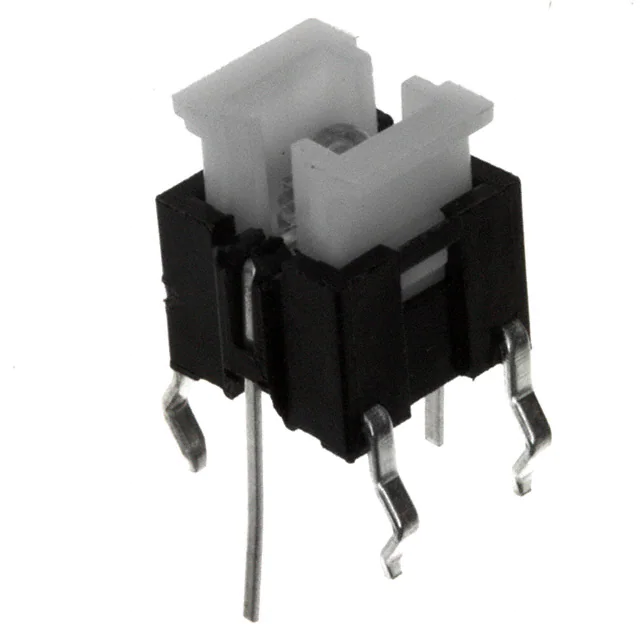

TL1240YQSWITCH TACTILE SPST-NO 0.05A 12V |
812 |
|
Datasheet | TL1240 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 7.20mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | LED, Yellow | 2.8 VDC | 160gf | - | - | -20°C ~ 70°C |
|
TL1240YQ1JCLRSWITCH TACTILE SPST-NO 0.05A 12V |
354 |
|
Datasheet | TL1240 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Square Button | Through Hole | 8.20mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | LED, Yellow | 2.8 VDC | 160gf | - | - | -20°C ~ 70°C |
|
TL3240F160GTSWITCH TACTILE SPST-NO 0.05A 12V |
3,489 |
|
Datasheet | TL3240 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 7.80mm | - | Top Actuated | Gull Wing | 6.10mm x 6.10mm | Illuminated | LED, Green | 2 VDC | 160gf | - | - | -25°C ~ 70°C |
|

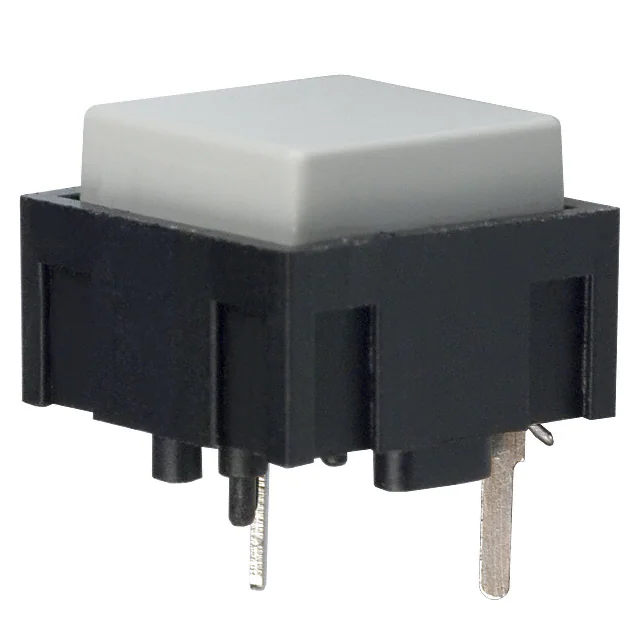

320.01E11GRYSWITCH TACT SPST-NO 0.025A 50V |
955 |
|
Datasheet | 320 | Bulk | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Square Button | Through Hole | 10.00mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Gray Cap | -20°C ~ 70°C |
|
TL3240F260YTSWITCH TACTILE SPST-NO 0.05A 12V |
418 |
|
Datasheet | TL3240 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 7.80mm | - | Top Actuated | Gull Wing | 6.10mm x 6.10mm | Illuminated | LED, Yellow | 2 VDC | 260gf | - | - | -25°C ~ 70°C |
|
320.01E11GRNSWITCH TACT SPST-NO 0.025A 50V |
282 |
|
Datasheet | 320 | Bulk | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Square Button | Through Hole | 10.00mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Green Cap | -20°C ~ 70°C |
|
TL1240GQ2JBLKSWITCH TACTILE SPST-NO 0.05A 12V |
1,809 |
|
Datasheet | TL1240 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Square Button | Through Hole | 8.20mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | LED, Green | 2.8 VDC | 160gf | - | - | -20°C ~ 70°C |
|

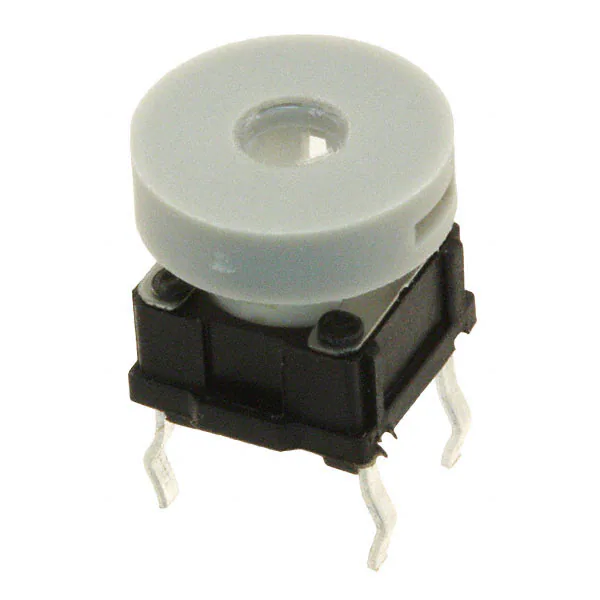

TL1265AQRGRYSWITCH TACTILE SPST-NO 0.05A 12V |
1,392 |
|
Datasheet | TL1265 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 8.50mm | - | Top Actuated | PC Pin | 7.00mm x 6.80mm | Non-Illuminated | - | - | 160gf | - | Gray Cap | -20°C ~ 70°C |
|
TL1240BQSWITCH TACTILE SPST-NO 0.05A 12V |
5,133 |
|
Datasheet | TL1240 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 7.20mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | LED, Blue | 4.2 VDC | 160gf | - | - | -20°C ~ 70°C |
