Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL1250F180GRRCLRSWITCH TACTILE SPST-NO 0.05A 12V |
562 |
|
Datasheet | TL1250 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole, Right Angle | - | 10.70mm | Side Actuated | PC Pin | 8.30mm x 10.30mm | Illuminated | LED, Green | 2.3 VDC | 180gf | - | Tactile Feedback | -20°C ~ 70°C |
|

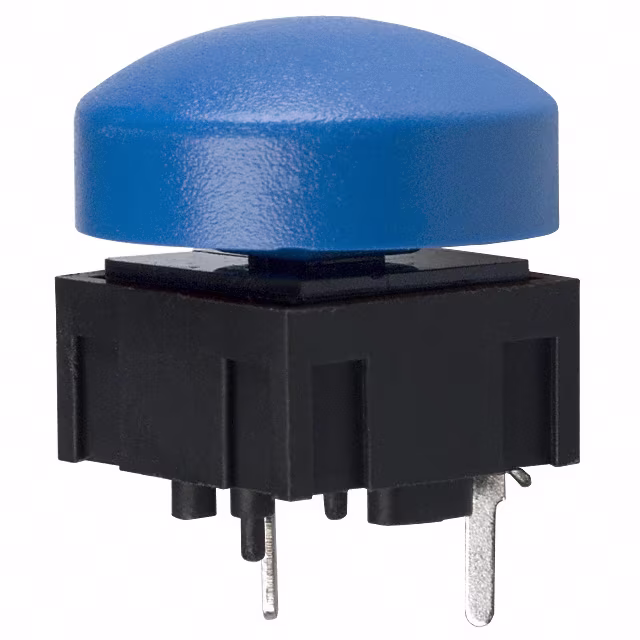

320.02E11.09BLUSWITCH TACT SPST-NO 0.025A 50V |
998 |
|
Datasheet | 320 | Bulk | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Round Button | Through Hole | 15.30mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Blue Cap | -20°C ~ 70°C |
|
TL3240F160BTSWITCH TACTILE SPST-NO 0.05A 12V |
6,869 |
|
Datasheet | TL3240 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 7.80mm | - | Top Actuated | Gull Wing | 6.10mm x 6.10mm | Illuminated | LED, Blue | 3.2 VDC | 160gf | - | - | -25°C ~ 70°C |
|
TL1220R3NNBGHALOSWITCH TACTILE SPST-NO 0.05A 12V |
329 |
|
Datasheet | TL1220 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 9.95mm | - | Top Actuated | PC Pin | 7.60mm x 6.00mm | Illuminated | LED, Green | 2.3 VDC | 180gf | - | Tactile Feedback | -40°C ~ 85°C |
|
TL1260RQRBLKSWITCH TACTILE SPST-NO 0.05A 12V |
1,717 |
|
Datasheet | TL1260 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole, Right Angle | - | 6.85mm | Side Actuated | PC Pin | 7.00mm x 6.80mm | Illuminated | LED, Red | 3.5 VDC | 160gf | - | Black Cap | -20°C ~ 70°C |
|
TL1265YQRYELSWITCH TACTILE SPST-NO 0.05A 12V |
957 |
|
Datasheet | TL1265 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 8.50mm | - | Top Actuated | PC Pin | 7.00mm x 6.80mm | Illuminated | LED, Yellow | 2.3 VDC | 160gf | - | Yellow Cap | -20°C ~ 70°C |
|
TL6215RF200RDTSWITCH TACTILE SPST-NO 0.05A 12V |
11,431 |
|
Datasheet | TL6215 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole, Right Angle | - | 9.60mm | Side Actuated | PC Pin | 7.70mm x 6.65mm | Illuminated | LED, Red | 1.95 VDC | 200gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
TL1220R1NNBGHALOSWITCH TACTILE SPST-NO 0.05A 12V |
669 |
|
Datasheet | TL1220 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 9.90mm | - | Top Actuated | PC Pin | 7.60mm x 6.00mm | Illuminated | LED, Green | 2.3 VDC | 180gf | - | Tactile Feedback | -40°C ~ 85°C |
|

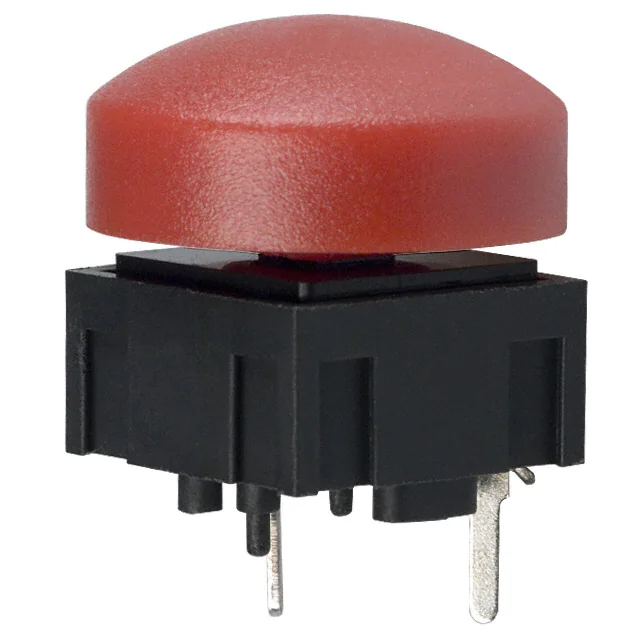

320.02E11.09REDSWITCH TACT SPST-NO 0.025A 50V |
302 |
|
Datasheet | 320 | Bulk | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Round Button | Through Hole | 15.30mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Red Cap | -20°C ~ 70°C |
|
TL1220R1BBBRHALOSWITCH TACTILE SPST-NO 0.05A 12V |
576 |
|
Datasheet | TL1220 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 9.90mm | - | Top Actuated | PC Pin | 7.60mm x 6.00mm | Illuminated | LED, Red | 2.3 VDC | 180gf | - | Tactile Feedback | -40°C ~ 85°C |
