Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL1220S2BBGNNSWITCH TACTILE SPST-NO 0.05A 12V |
973 |
|
Datasheet | TL1220 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Square Button | Through Hole | 12.50mm | - | Top Actuated | PC Pin | 7.80mm x 6.00mm | Non-Illuminated | - | - | 180gf | - | - | -40°C ~ 85°C |
|
320.02E11.08YELSWITCH TACT SPST-NO 0.025A 50V |
381 |
|
Datasheet | 320 | Bulk | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Round Button | Through Hole | 14.40mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Yellow Cap | -20°C ~ 70°C |
|
TL53HF160QSWITCH TACT SPSTX2 0.05A 12V |
2,145 |
|
Datasheet | TL53 | Tray | Active | SPST x 2 | Off-Mom | 0.05A @ 12VDC | Dual | Through Hole, Right Angle | - | 11.85mm | Side Actuated | PC Pin | 8.40mm x 10.50mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|

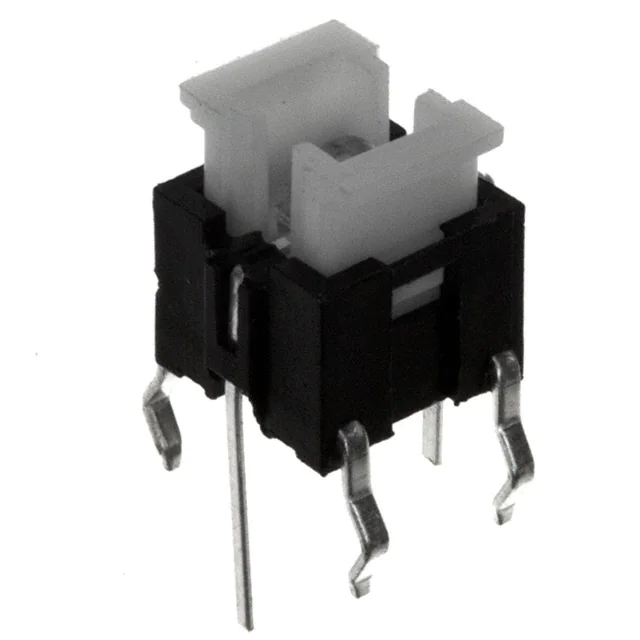

TL1240GQSWITCH TACTILE SPST-NO 0.05A 12V |
1,799 |
|
Datasheet | TL1240 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 7.20mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | LED, Green | 2.8 VDC | 160gf | - | - | -20°C ~ 70°C |
|
TL1240RQSWITCH TACTILE SPST-NO 0.05A 12V |
1,014 |
|
Datasheet | TL1240 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 7.20mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | LED, Red | 2.3 VDC | 160gf | - | - | -20°C ~ 70°C |
|
320E11GRNSWITCH TACT SPST-NO 0.025A 50V |
1,097 |
|
Datasheet | 320 | Bulk | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Square Button | Through Hole | 9.95mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Green Cap | -20°C ~ 70°C |
|
320E11GRYSWITCH TACT SPST-NO 0.025A 50V |
277 |
|
Datasheet | 320 | Bulk | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Square Button | Through Hole | 9.95mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Gray Cap | -20°C ~ 70°C |
|
TL1100CF160Q.08REDSWITCH TACTILE SPST-NO 0.05A 12V |
8,195 |
|
Datasheet | TL1100 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole, Right Angle | - | 9.60mm | Side Actuated | PC Pin | 12.00mm x 9.90mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -20°C ~ 70°C |
|
320E11YELSWITCH TACT SPST-NO 0.025A 50V |
1,024 |
|
Datasheet | 320 | Bulk | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Square Button | Through Hole | 9.95mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Yellow Cap | -20°C ~ 70°C |
|
320.04E11BLKVERTSWITCH TACT SPST-NO 0.025A 50V |
784 |
|
Datasheet | 320 | Bulk | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Rectangular Button | Through Hole | 12.70mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Black Cap | -20°C ~ 70°C |
