Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

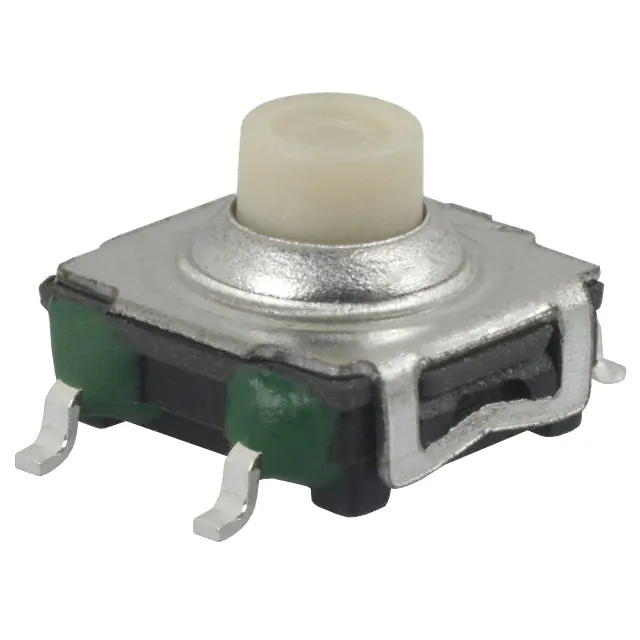

TL6120BF130QGSWITCH TACTILE SPST-NO 0.05A 12V |
6,799 |
|
Datasheet | TL6120 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.20mm | - | Top Actuated | Gull Wing | 7.40mm x 7.40mm | Non-Illuminated | - | - | 130gf | - | - | -40°C ~ 85°C |
|
TL6110BF300QPSWITCH TACTILE SPST-NO 0.05A 12V |
829 |
|
Datasheet | TL6110 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 4.00mm | Side Actuated | PC Pin | 8.30mm x 5.80mm | Non-Illuminated | - | - | 300gf | - | - | -40°C ~ 85°C |
|

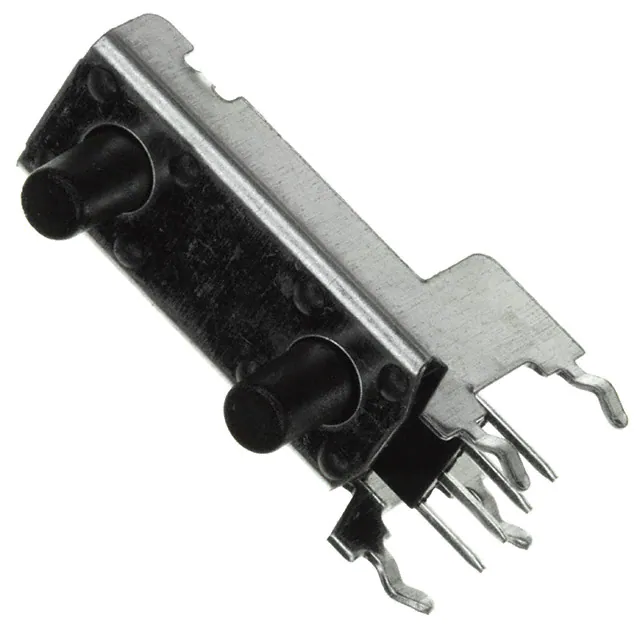

TL53EF160QSWITCH TACT SPSTX2 0.05A 12V |
1,512 |
|
Datasheet | TL53 | Tray | Active | SPST x 2 | Off-Mom | 0.05A @ 12VDC | Dual | Through Hole, Right Angle | - | 7.35mm | Side Actuated | PC Pin | 8.40mm x 10.50mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
TL1105SF160RSWITCH TACTILE SPST-NO 0.05A 50V |
3,882 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Through Hole, Right Angle | - | 8.35mm | Side Actuated | PC Pin | 7.10mm x 6.55mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
TL1105DF160RSWITCH TACTILE SPST-NO 0.05A 50V |
14,950 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Through Hole | 13.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
GSR6.34F130QPSWITCH TACTILE SPST-NO 0.05A 50V |
704 |
|
Datasheet | GS | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Through Hole, Right Angle | - | 3.80mm | Side Actuated | PC Pin | 8.00mm x 8.54mm | Non-Illuminated | - | - | 130gf | - | - | -40°C ~ 80°C |
|
TL6110BF130QPSWITCH TACTILE SPST-NO 0.05A 12V |
2,835 |
|
Datasheet | TL6110 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 4.00mm | Side Actuated | PC Pin | 8.30mm x 5.80mm | Non-Illuminated | - | - | 130gf | - | - | -40°C ~ 85°C |
|
TL6110AF300QPSWITCH TACTILE SPST-NO 0.05A 12V |
4,593 |
|
Datasheet | TL6110 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 3.50mm | Side Actuated | PC Pin | 8.30mm x 5.80mm | Non-Illuminated | - | - | 300gf | - | - | -40°C ~ 85°C |
|
TL6100AF300QPSWITCH TACTILE SPST-NO 0.05A 12V |
4,121 |
|
Datasheet | TL6100 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 4.70mm | - | Top Actuated | PC Pin | 7.20mm x 7.20mm | Non-Illuminated | - | - | 300gf | - | Process Sealed | -40°C ~ 85°C |
|
TL3215AF160YQSWITCH TACTILE SPST-NO 0.05A 12V |
2,324 |
|
Datasheet | TL3215 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 2.00mm | - | Top Actuated | SMD (SMT) Tab | 4.90mm x 4.90mm | Illuminated | LED, Yellow | 2.05 VDC | 160gf | - | - | -40°C ~ 85°C |
