Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

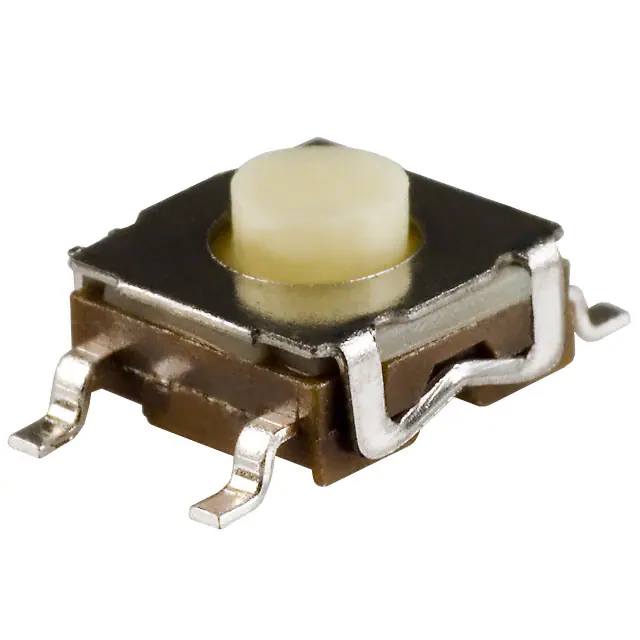

TL3304AF160QGSWITCH TACTILE SPST-NO 0.05A 50V |
18,890 |
|
Datasheet | TL3304 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Surface Mount | 3.40mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|

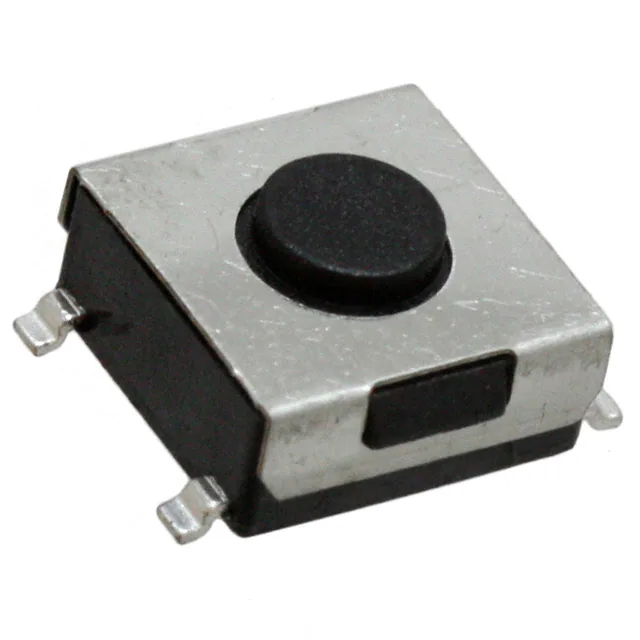

TL3303F260QGSWITCH TACTILE SPST-NO 0.05A 12V |
7,543 |
|
Datasheet | TL3303 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | Gull Wing | 6.20mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C |
|
TL6700AF260QGSWITCH TACTILE SPST-NO 0.05A 12V |
16,508 |
|
Datasheet | TL6700 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 3.40mm | - | Top Actuated | Gull Wing | 6.90mm x 6.20mm | Non-Illuminated | - | - | 260gf | - | Process Sealed | -20°C ~ 70°C |
|

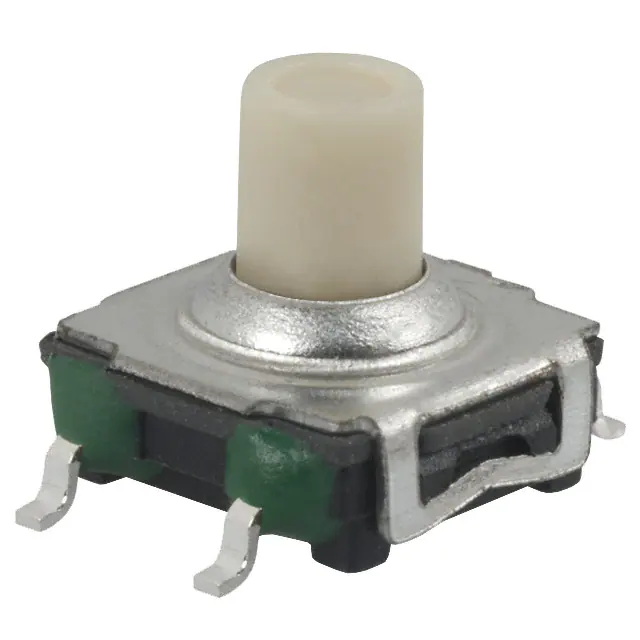

TL6120CF300QGSWITCH TACTILE SPST-NO 0.05A 12V |
5,235 |
|
Datasheet | TL6120 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 6.90mm | - | Top Actuated | Gull Wing | 7.40mm x 7.40mm | Non-Illuminated | - | - | 300gf | - | - | -40°C ~ 85°C |
|
TL6100AF160QPSWITCH TACTILE SPST-NO 0.05A 12V |
9,960 |
|
Datasheet | TL6100 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 4.70mm | - | Top Actuated | PC Pin | 7.20mm x 7.20mm | Non-Illuminated | - | - | 160gf | - | Process Sealed | -40°C ~ 85°C |
|
TL6100CF130QPSWITCH TACTILE SPST-NO 0.05A 12V |
3,494 |
|
Datasheet | TL6100 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 6.90mm | - | Top Actuated | PC Pin | 7.20mm x 7.20mm | Non-Illuminated | - | - | 130gf | - | Process Sealed | -40°C ~ 85°C |
|
TL6110BF500QPSWITCH TACTILE SPST-NO 0.05A 12V |
5,296 |
|
Datasheet | TL6110 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 4.00mm | Side Actuated | PC Pin | 8.30mm x 5.80mm | Non-Illuminated | - | - | 500gf | - | - | -40°C ~ 85°C |
|
TL6110DF160QPSWITCH TACTILE SPST-NO 0.05A 12V |
4,164 |
|
Datasheet | TL6110 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 8.80mm | Side Actuated | PC Pin | 8.30mm x 5.80mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
GS10.00F130QPSWITCH TACTILE SPST-NO 0.05A 50V |
1,058 |
|
Datasheet | GS | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Through Hole | 10.00mm | - | Top Actuated | PC Pin | 7.20mm x 7.20mm | Non-Illuminated | - | - | 130gf | - | - | -40°C ~ 85°C |
|
GS10.00F300QPSWITCH TACTILE SPST-NO 0.05A 50V |
419 |
|
Datasheet | GS | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Through Hole | 10.00mm | - | Top Actuated | PC Pin | 7.20mm x 7.20mm | Non-Illuminated | - | - | 300gf | - | - | -40°C ~ 85°C |
