Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL9100AF200QSWITCH TACTILE SPST-NO 0.05A 12V |
2,535 |
|
Datasheet | TL9100 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Surface Mount | 5.00mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 200gf | - | - | -40°C ~ 85°C |
|

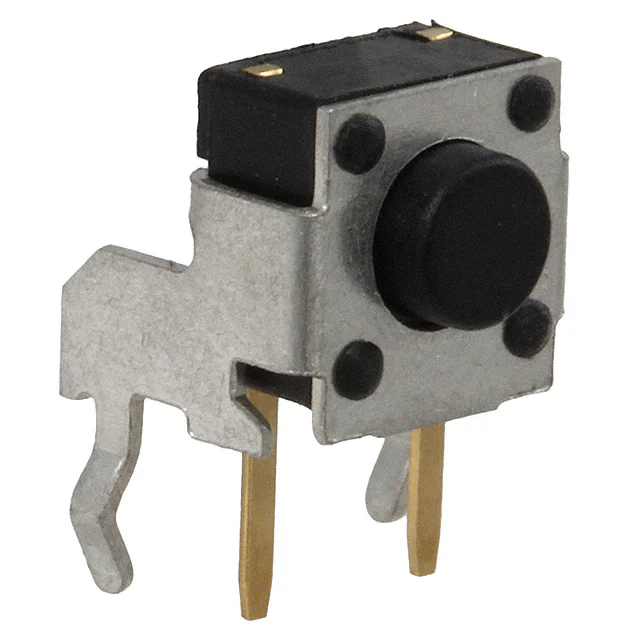

TL1105VF160RSWITCH TACTILE SPST-NO 0.05A 50V |
1,307 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Through Hole, Right Angle | - | 3.85mm | Side Actuated | PC Pin | 7.10mm x 6.55mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
320E11WHTSWITCH TACT SPST-NO 0.025A 50V |
19,783 |
|
Datasheet | 320 | Bulk | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Square Button | Through Hole | 9.95mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | White Cap | -20°C ~ 70°C |
|
TL3215AF160RQSWITCH TACTILE SPST-NO 0.05A 12V |
2,304 |
|
Datasheet | TL3215 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 2.00mm | - | Top Actuated | SMD (SMT) Tab | 4.90mm x 4.90mm | Illuminated | LED, Red | 1.9 VDC | 160gf | - | - | -40°C ~ 85°C |
|

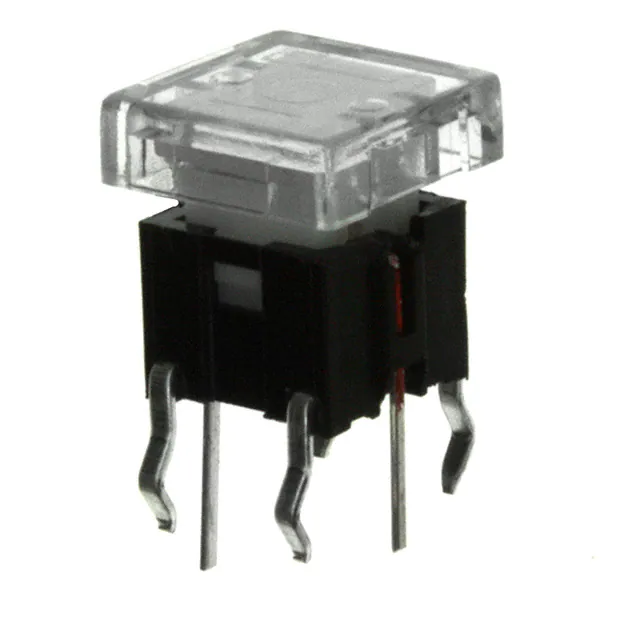

TL1240RQ1JCLRSWITCH TACTILE SPST-NO 0.05A 12V |
13,368 |
|
Datasheet | TL1240 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Square Button | Through Hole | 8.20mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | LED, Red | 2.3 VDC | 160gf | - | - | -20°C ~ 70°C |
|
TL1240GQ1JCLRSWITCH TACTILE SPST-NO 0.05A 12V |
13,960 |
|
Datasheet | TL1240 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Square Button | Through Hole | 8.20mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | LED, Green | 2.8 VDC | 160gf | - | - | -20°C ~ 70°C |
|
|
TL3215AF160BQSWITCH TACTILE SPST-NO 0.05A 12V |
13,088 |
|
Datasheet | TL3215 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 2.00mm | - | Top Actuated | SMD (SMT) Tab | 4.90mm x 4.90mm | Illuminated | LED, Blue | 3 VDC | 160gf | - | - | -40°C ~ 85°C |
|

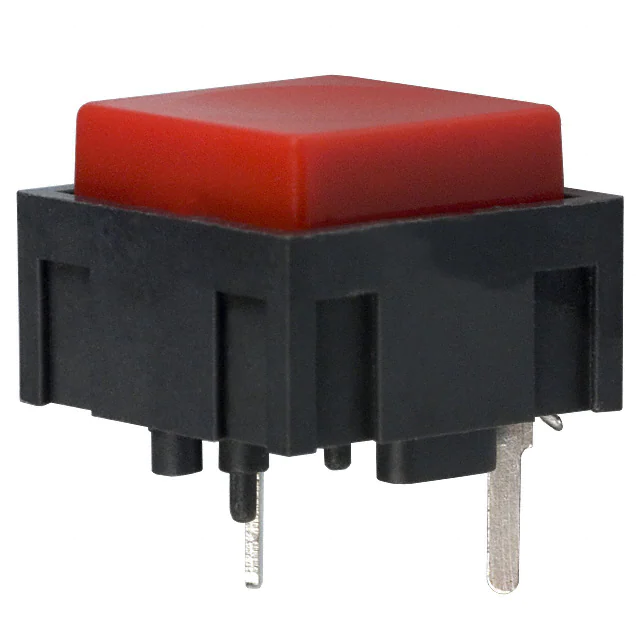

320E11REDSWITCH TACT SPST-NO 0.025A 50V |
633 |
|
Datasheet | 320 | Bulk | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Square Button | Through Hole | 9.95mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Red Cap | -20°C ~ 70°C |
|
TL3360BF185QSWITCH TACTILE SPST-NO 0.05A 12V |
11,084 |
|
Datasheet | TL3360 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount, Right Angle | - | 7.17mm | Side Actuated | Gull Wing | 7.77mm x 6.40mm | Non-Illuminated | - | - | 185gf | - | - | -25°C ~ 70°C |
|
TL3360AF260QSWITCH TACTILE SPST-NO 0.05A 12V |
8,121 |
|
Datasheet | TL3360 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount, Right Angle | - | 6.67mm | Side Actuated | Gull Wing | 7.77mm x 6.40mm | Non-Illuminated | - | - | 260gf | - | - | -25°C ~ 70°C |
