Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL3301PF160QJSWITCH TACTILE SPST-NO 0.05A 12V |
1,654 |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 8.50mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|

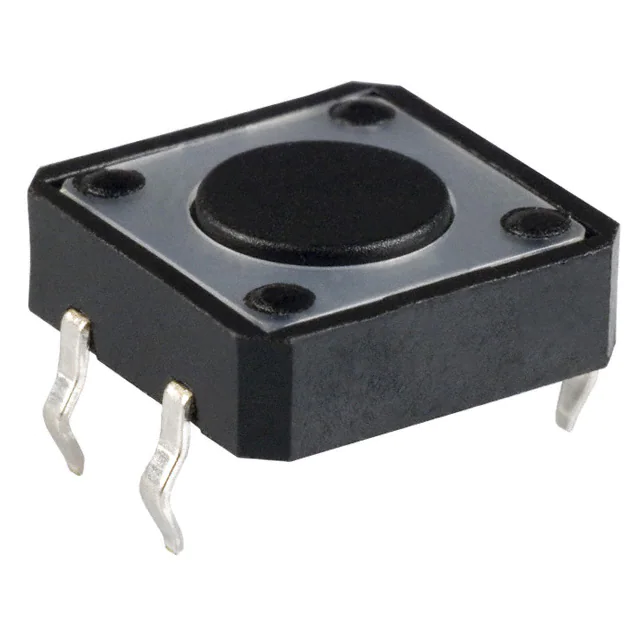

TL1100DF160QSWITCH TACTILE SPST-NO 0.05A 12V |
4,228 |
|
Datasheet | TL1100 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -20°C ~ 70°C |
|
TL1100AF160QSWITCH TACTILE SPST-NO 0.05A 12V |
2,005 |
|
Datasheet | TL1100 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -20°C ~ 70°C |
|
TL1105JAF160QSWITCH TACTILE SPST-NO 0.05A 12V |
20,630 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole, Right Angle | - | 6.35mm | Side Actuated | PC Pin | 7.20mm x 6.50mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
TL1105JAF250QSWITCH TACTILE SPST-NO 0.05A 12V |
2,967 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole, Right Angle | - | 6.35mm | Side Actuated | PC Pin | 7.20mm x 6.50mm | Non-Illuminated | - | - | 250gf | - | - | -20°C ~ 70°C |
|
TL3300DF160QSWITCH TACTILE SPST-NO 0.05A 12V |
23,811 |
|
Datasheet | TL3300 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 12.00mm x 12.00mm | Non-Illuminated | - | - | 160gf | - | - | -25°C ~ 70°C |
|
TL2243SWITCH TACTILE SPST-NO 0.05A 12V |
2,478 |
|
Datasheet | TL2243 | Bulk | Active | SPST-NO x 2 | Off-Mom | 0.05A @ 12VDC | Dual | Through Hole, Right Angle | - | 6.80mm | Side Actuated | PC Pin | 7.30mm x 8.00mm | Non-Illuminated | - | - | 180gf | - | Tactile Feedback | -20°C ~ 70°C |
|
TL3701AF100QGSWITCH TACTILE SPST-NO 0.05A 12V |
12,357 |
|
Datasheet | TL3701 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 0.65mm | - | Top Actuated | Gull Wing | 3.00mm x 2.60mm | Non-Illuminated | - | - | 100gf | - | - | -40°C ~ 85°C |
|

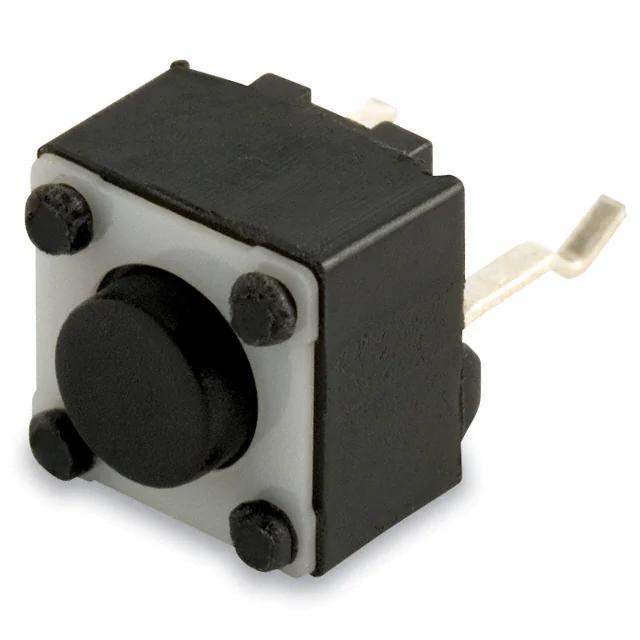

TL1150AF070QSWITCH TACTILE SPST-NO 0.05A 30V |
142,626 |
|
Datasheet | TL1150 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 30VDC | Standard | Through Hole | 5.70mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 70gf | - | - | -25°C ~ 85°C |
|

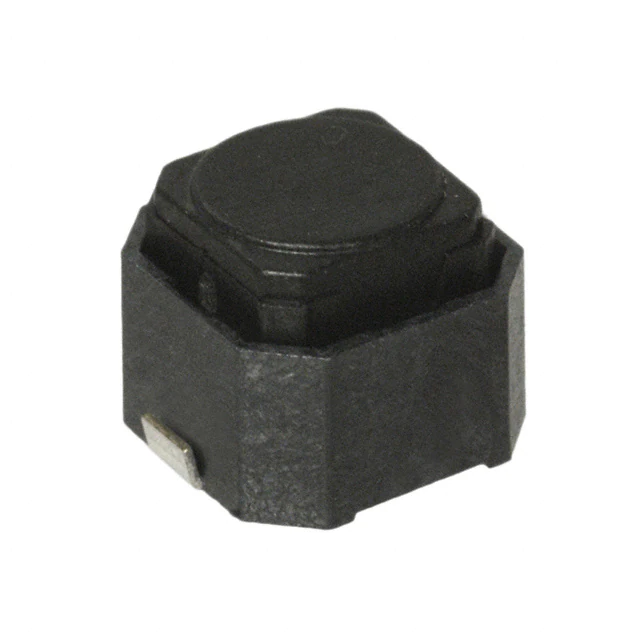

TL9210AF180QSWITCH TACTILE SPST-NO 0.05A 12V |
3,896 |
|
Datasheet | TL9210 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Surface Mount | 5.00mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 180gf | - | - | -20°C ~ 70°C |
