Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL4115AF220QSWITCH TACTILE SPST-NO 0.05A 12V |
2,160 |
|
Datasheet | TL4115 | Tape & Reel (TR) | Active | SPST-NO | On-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 2.60mm | - | Top Actuated | SMD (SMT) Tab | 4.50mm x 2.20mm | Non-Illuminated | - | - | 220gf | - | - | -30°C ~ 85°C |
|
TL1100EF160QSWITCH TACTILE SPST-NO 0.05A 12V |
24,932 |
|
Datasheet | TL1100 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 7.50mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -20°C ~ 70°C |
|
TL3313AF160QGSWITCH TACTILE SPST-NO 0.05A 12V |
9,541 |
|
Datasheet | TL3313 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 1.50mm | - | Top Actuated | Gull Wing | 4.80mm x 4.80mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
TL3312NF235QSWITCH TACTILE SPST-NO 0.05A 12V |
2,274 |
|
Datasheet | TL3312 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Snap Dome | Surface Mount | 0.35mm | - | Top Actuated | SMD (SMT) Tab | 3.70mm x 3.70mm | Non-Illuminated | - | - | 235gf | - | - | -40°C ~ 85°C |
|
TL3301BF160QJSWITCH TACTILE SPST-NO 0.05A 12V |
6,411 |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 9.50mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|

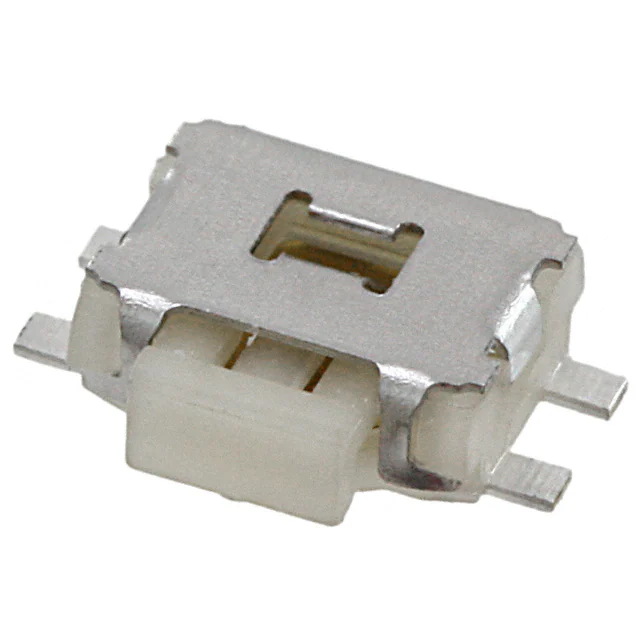

TL1014AF160QGSWITCH TACTILE SPST-NO 0.05A 12V |
31,865 |
|
Datasheet | TL1014 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | Gull Wing | 6.40mm x 3.50mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
TL3301EF100QGSWITCH TACTILE SPST-NO 0.05A 12V |
137,187 |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 7.30mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -40°C ~ 85°C |
|
TL3301NF160QJSWITCH TACTILE SPST-NO 0.05A 12V |
13,815 |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
TL3301CF160QGSWITCH TACTILE SPST-NO 0.05A 12V |
12,270 |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 8.00mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
TL3301SPF160QJSWITCH TACTILE SPST-NO 0.05A 12V |
2,090 |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 7.50mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
