Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL9210AF260QSWITCH TACTILE SPST-NO 0.05A 12V |
3,879 |
|
Datasheet | TL9210 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Surface Mount | 5.00mm | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C |
|
LL3301NF065QGSWITCH TACTILE SPST-NO 0.05A 12V |
5,317 |
|
Datasheet | LL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 65gf | - | - | -30°C ~ 85°C |
|
TL1100F160Q6JBLKSWITCH TACTILE SPST-NO 0.05A 12V |
7,907 |
|
Datasheet | TL1100 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Square Button | Through Hole | 9.60mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -20°C ~ 70°C |
|
TL3342F450QGSWITCH TACTILE SPST-NO 0.05A 12V |
2,575 |
|
Datasheet | TL3342 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 1.54mm | - | Top Actuated | Gull Wing | 4.90mm x 4.90mm | Non-Illuminated | - | - | 450gf | - | - | -20°C ~ 70°C |
|
TL6700AF160QGSWITCH TACTILE SPST-NO 0.05A 12V |
27,880 |
|
Datasheet | TL6700 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 3.40mm | - | Top Actuated | Gull Wing | 6.90mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | Process Sealed | -20°C ~ 70°C |
|
TL3302AF180QJSWITCH TACTILE SPST-NO 0.05A 12V |
13,881 |
|
Datasheet | TL3302 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 4.30mm | - | Top Actuated | J Lead | 6.00mm x 3.50mm | Non-Illuminated | - | - | 180gf | - | Tactile Feedback | -20°C ~ 70°C |
|

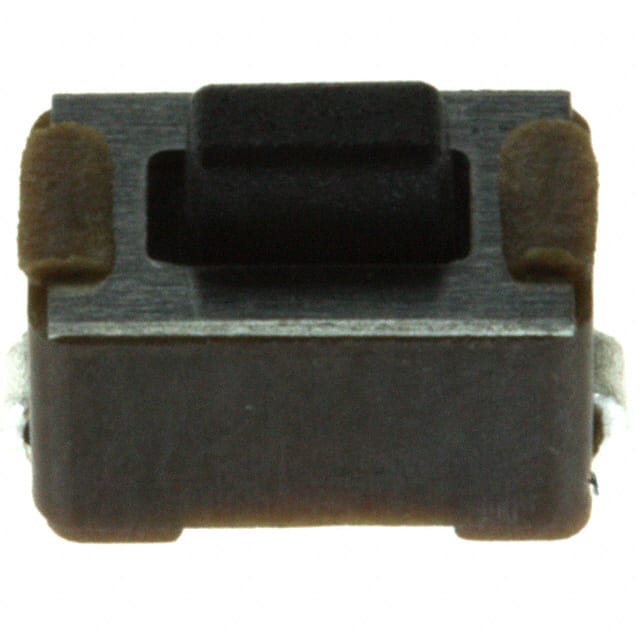

TL3302BF180QJSWITCH TACTILE SPST-NO 0.05A 12V |
5,150 |
|
Datasheet | TL3302 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 5.00mm | - | Top Actuated | J Lead | 6.00mm x 3.50mm | Non-Illuminated | - | - | 180gf | - | Tactile Feedback | -20°C ~ 70°C |
|
TL6700AF160QJSWITCH TACTILE SPST-NO 0.05A 12V |
3,119 |
|
Datasheet | TL6700 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 3.40mm | - | Top Actuated | J Lead | 6.90mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | Process Sealed | -20°C ~ 70°C |
|
TL3302BF260QJSWITCH TACTILE SPST-NO 0.05A 12V |
10,471 |
|
Datasheet | TL3302 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 5.00mm | - | Top Actuated | J Lead | 6.00mm x 3.50mm | Non-Illuminated | - | - | 260gf | - | Tactile Feedback | -20°C ~ 70°C |
|
TL9320AF400QGSWITCH TACTILE SPST-NO 0.05A 16V |
4,461 |
|
Datasheet | TL9320 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 16VDC | Standard | Surface Mount | 3.95mm | - | Top Actuated | Gull Wing | 8.40mm x 8.40mm | Non-Illuminated | - | - | 400gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
