Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL6120DF160QGSWITCH TACTILE SPST-NO 0.05A 12V |
55,125 |
|
Datasheet | TL6120 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 10.00mm | - | Top Actuated | Gull Wing | 7.40mm x 7.40mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
TL1240NQ1JBLKSWITCH TACTILE SPST-NO 0.05A 12V |
2,436 |
|
Datasheet | TL1240 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Square Button | Through Hole | 8.20mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
TL4100AF240QGSWITCH TACTILE SPST-NO 0.05A 12V |
9,263 |
|
Datasheet | TL4100 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Edge Mount, Right Angle | - | 2.00mm | Side Actuated | Gull Wing | 6.20mm x 2.50mm | Non-Illuminated | - | - | 240gf | - | - | -40°C ~ 85°C |
|
TL4100AF120QGSWITCH TACTILE SPST-NO 0.05A 12V |
8,426 |
|
Datasheet | TL4100 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Edge Mount, Right Angle | - | 2.00mm | Side Actuated | Gull Wing | 6.20mm x 2.50mm | Non-Illuminated | - | - | 120gf | - | - | -40°C ~ 85°C |
|

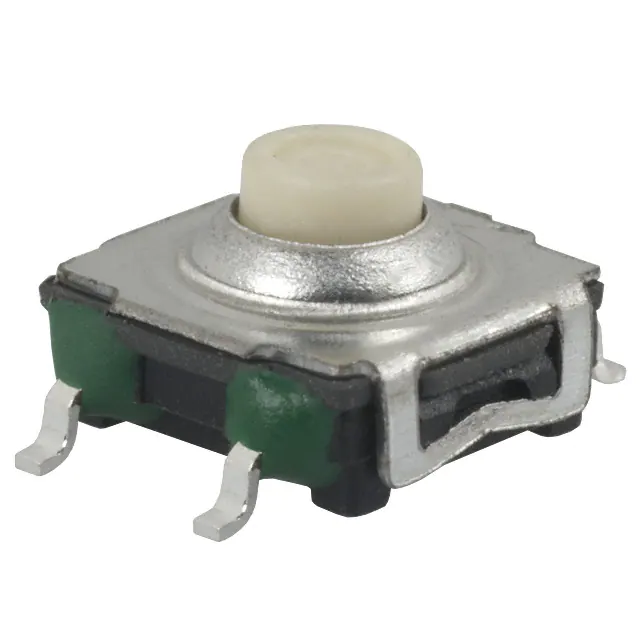

TL6120AF160QGSWITCH TACTILE SPST-NO 0.05A 12V |
7,791 |
|
Datasheet | TL6120 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 4.70mm | - | Top Actuated | Gull Wing | 7.40mm x 7.40mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|

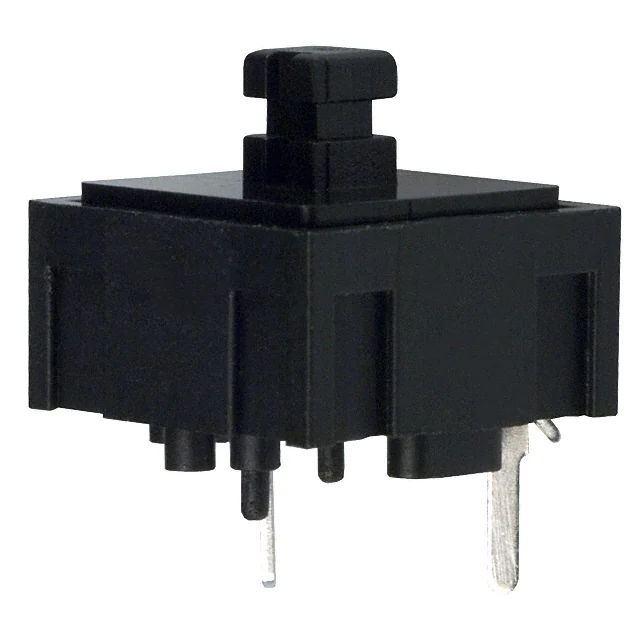

320.02E11BLKSWITCH TACT SPST-NO 0.025A 50V |
28,610 |
|
Datasheet | 320 | Bulk | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Plunger for Cap | Through Hole | - | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Tactile Feedback | -20°C ~ 70°C |
|
TL6110AF160QPSWITCH TACTILE SPST-NO 0.05A 12V |
6,316 |
|
Datasheet | TL6110 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 3.50mm | Side Actuated | PC Pin | 8.30mm x 5.80mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
TL6110CF160QPSWITCH TACTILE SPST-NO 0.05A 12V |
4,156 |
|
Datasheet | TL6110 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 5.70mm | Side Actuated | PC Pin | 8.30mm x 5.80mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
TL6110AF130QPSWITCH TACTILE SPST-NO 0.05A 12V |
1,455 |
|
Datasheet | TL6110 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 3.50mm | Side Actuated | PC Pin | 8.30mm x 5.80mm | Non-Illuminated | - | - | 130gf | - | - | -40°C ~ 85°C |
|
TL3301DF260RGSWITCH TACTILE SPST-NO 0.05A 12V |
9,575 |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 13.00mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
