Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL1105EF100QSWITCH TACTILE SPST-NO 0.05A 12V |
7,919 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C |
|

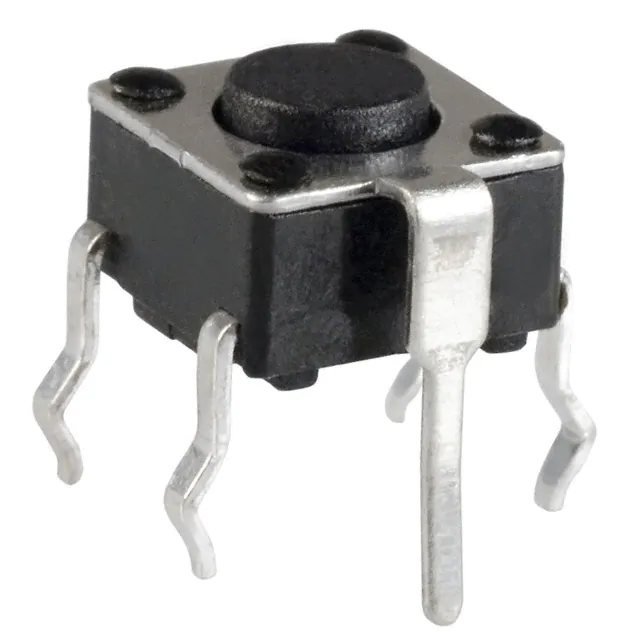

TLE1105F160QSWITCH TACTILE SPST-NO 0.05A 12V |
2,233 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | Grounding Pin | -20°C ~ 70°C |
|
RT1105AF350QSWITCH TACTILE SPST-NO 0.05A 12V |
2,993 |
|
Datasheet | RT1105 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Reverse | 4.40mm | - | Top Actuated | PC Pin | 6.80mm x 6.80mm | Non-Illuminated | - | - | 350gf | - | - | -20°C ~ 85°C |
|
TL1105XF160QBLKSTEMSWITCH TACTILE SPST-NO 0.05A 12V |
3,204 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 5.85mm | Side Actuated | PC Pin | 7.10mm x 6.55mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
TL1105TF160QSWITCH TACTILE SPST-NO 0.05A 12V |
16,053 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 7.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
TL59FF260QSWITCH TACTILE SPST-NO 0.05A 12V |
3,930 |
|
Datasheet | TL59 | Cut Tape (CT) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 7.00mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C |
|
TL1105KF250QSWITCH TACTILE SPST-NO 0.05A 12V |
5,348 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 13.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 250gf | - | - | -20°C ~ 70°C |
|
|
TS35M9-4.3-160-TRSWITCH TACTILE SPST-NO 0.05A 12V |
4,138 |
|
Datasheet | TS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 4.30mm | - | Top Actuated | SMD (SMT) Tab | 6.00mm x 3.50mm | Non-Illuminated | - | - | 160gf | - | - | -25°C ~ 70°C |
|
TL1016AAF160QGSWITCH TACTILE SPST-NO 0.05A 12V |
9,988 |
|
Datasheet | TL1016 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | 3.55mm | Side Actuated | Gull Wing | 4.70mm x 2.90mm | - | - | - | 160gf | - | - | -40°C ~ 85°C |
|
TL1105LF100QSWITCH TACTILE SPST-NO 0.05A 12V |
14,465 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 17.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C |
