Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

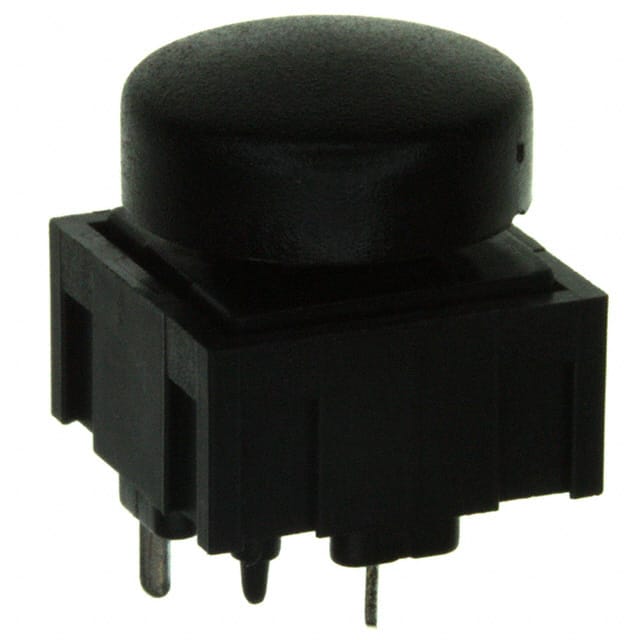

320.02E11.08BLKSWITCH TACT SPST-NO 0.025A 50V |
2,060 |
|
Datasheet | 320 | Bulk | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Round Button | Through Hole | 14.40mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Black Cap | -20°C ~ 70°C |
|

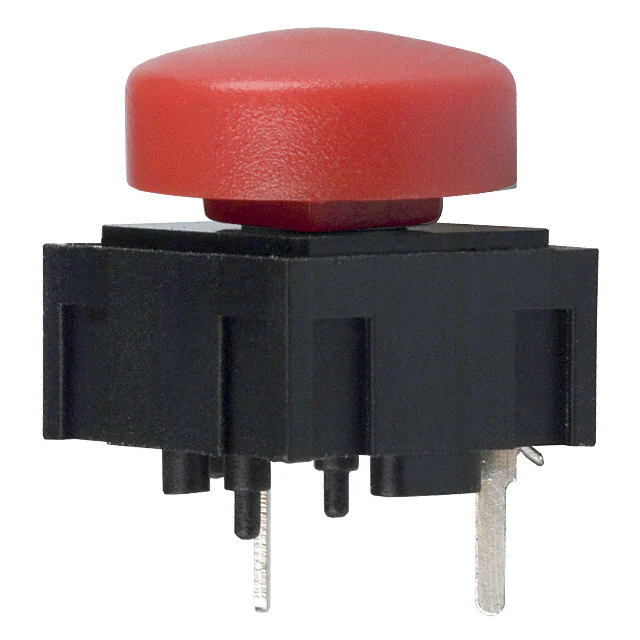

320.02E11.08REDSWITCH TACT SPST-NO 0.025A 50V |
934 |
|
Datasheet | 320 | Bulk | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Round Button | Through Hole | 14.40mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Red Cap | -20°C ~ 70°C |
|
TL1265YQSCLRSWITCH TACTILE SPST-NO 0.05A 12V |
4,419 |
|
Datasheet | TL1265 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 12.00mm | - | Top Actuated | PC Pin | 7.00mm x 6.80mm | Illuminated | LED, Yellow | 2.3 VDC | 160gf | - | Clear Cap | -20°C ~ 70°C |
|
TL1220R1BBBBHALOSWITCH TACTILE SPST-NO 0.05A 12V |
2,038 |
|
Datasheet | TL1220 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 9.90mm | - | Top Actuated | PC Pin | 7.60mm x 6.00mm | Illuminated | LED, Blue | 3.5 VDC | 180gf | - | Tactile Feedback | -40°C ~ 85°C |
|
TL1265BQSCLRSWITCH TACTILE SPST-NO 0.05A 12V |
3,798 |
|
Datasheet | TL1265 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 12.00mm | - | Top Actuated | PC Pin | 7.00mm x 6.80mm | Illuminated | LED, Blue | 3.5 VDC | 160gf | - | Clear Cap | -20°C ~ 70°C |
|

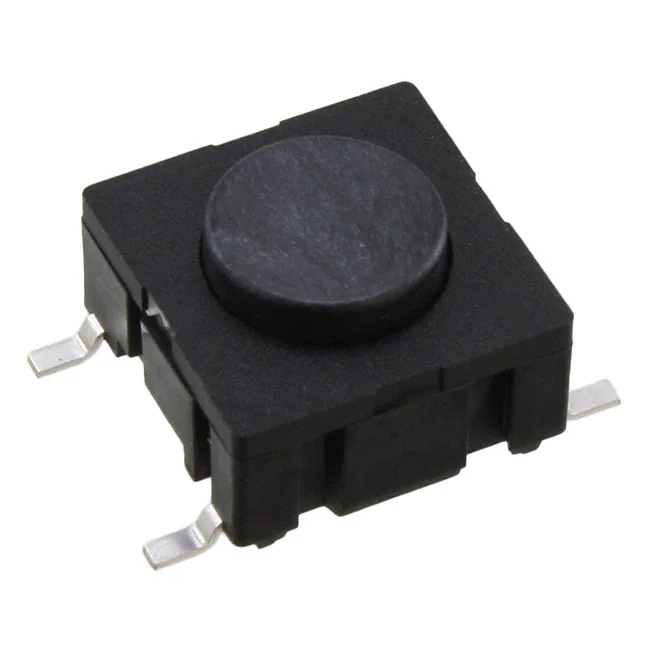

TL6200ABF300QGSWITCH TACTILE SPST-NO 0.05A 24V |
661 |
|
Datasheet | TL6200 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Round Button | Surface Mount | 6.40mm | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | Black Cap | -40°C ~ 85°C |
|

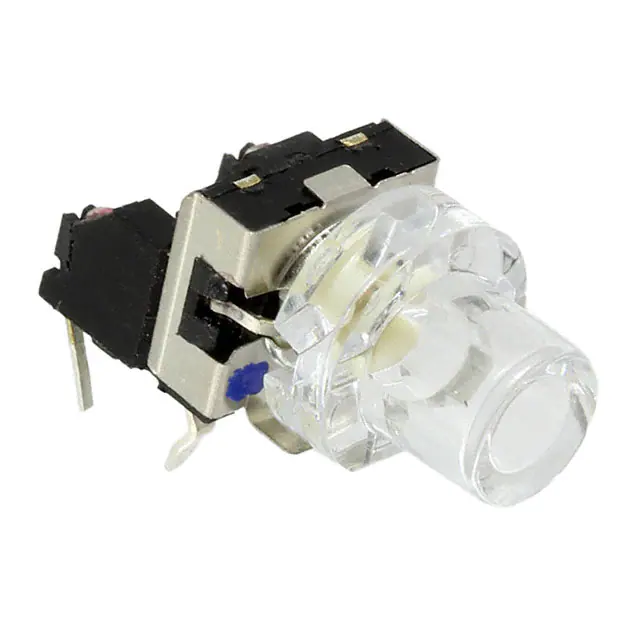

TL6215RF200BDTSWITCH TACTILE SPST-NO 0.05A 12V |
14,990 |
|
Datasheet | TL6215 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole, Right Angle | - | 9.60mm | Side Actuated | PC Pin | 7.70mm x 6.65mm | Illuminated | LED, Blue | 3.3 VDC | 200gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
TL1265WQSCLRSWITCH TACTILE SPST-NO 0.05A 12V |
763 |
|
Datasheet | TL1265 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 12.00mm | - | Top Actuated | PC Pin | 7.00mm x 6.80mm | Illuminated | LED, White | 3.6 VDC | 160gf | - | Clear Cap | -20°C ~ 70°C |
|
320.02E11.09YELSWITCH TACT SPST-NO 0.025A 50V |
769 |
|
Datasheet | 320 | Bulk | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Round Button | Through Hole | 15.30mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Yellow Cap | -20°C ~ 70°C |
|
TL1105DF100QSWITCH TACTILE SPST-NO 0.05A 12V |
13,437 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 13.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C |
