Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

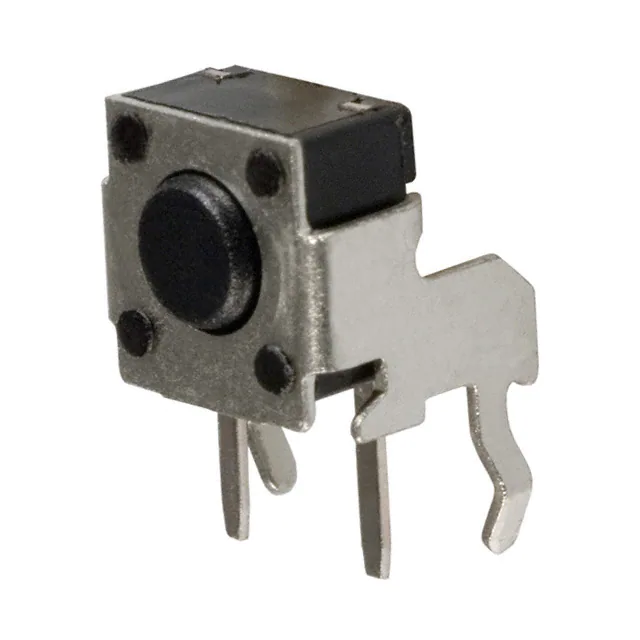

TL1105WF160QSWITCH TACTILE SPST-NO 0.05A 12V |
19,903 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 3.15mm | Side Actuated | PC Pin | 7.10mm x 6.55mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
TL1105XF160QSWITCH TACTILE SPST-NO 0.05A 12V |
15,164 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 5.85mm | Side Actuated | PC Pin | 7.10mm x 6.55mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
TL1105SF250QSWITCH TACTILE SPST-NO 0.05A 12V |
9,656 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 8.35mm | Side Actuated | PC Pin | 7.10mm x 6.55mm | Non-Illuminated | - | - | 250gf | - | - | -20°C ~ 70°C |
|
RT1105AF160QSWITCH TACTILE SPST-NO 0.05A 12V |
9,065 |
|
Datasheet | RT1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Reverse | 4.40mm | - | Top Actuated | PC Pin | 6.80mm x 6.80mm | Non-Illuminated | - | - | 160gf | - | Red Actuator | -20°C ~ 85°C |
|

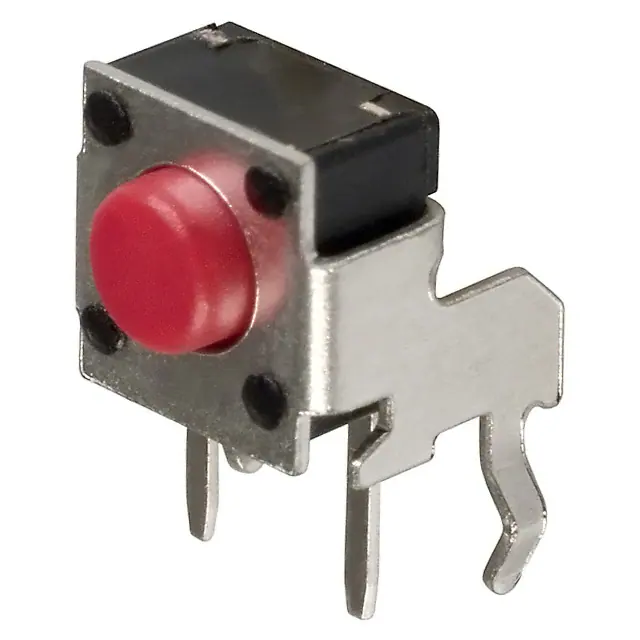

TL1105VF250QSWITCH TACTILE SPST-NO 0.05A 12V |
8,315 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 3.85mm | Side Actuated | PC Pin | 7.10mm x 6.55mm | Non-Illuminated | - | - | 250gf | - | - | -20°C ~ 70°C |
|

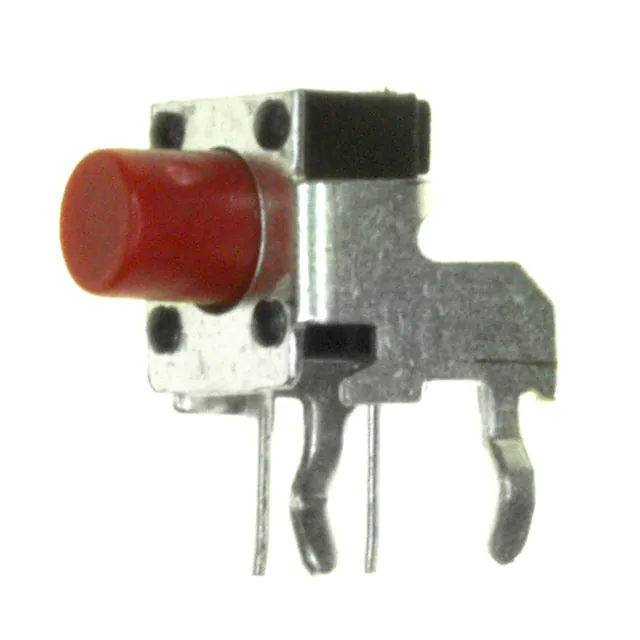

TL1105XF250QSWITCH TACTILE SPST-NO 0.05A 12V |
6,996 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 5.85mm | Side Actuated | PC Pin | 7.10mm x 6.55mm | Non-Illuminated | - | - | 250gf | - | - | -20°C ~ 70°C |
|
TL1105WF100QSWITCH TACTILE SPST-NO 0.05A 12V |
6,677 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 3.15mm | Side Actuated | PC Pin | 7.10mm x 6.55mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C |
|

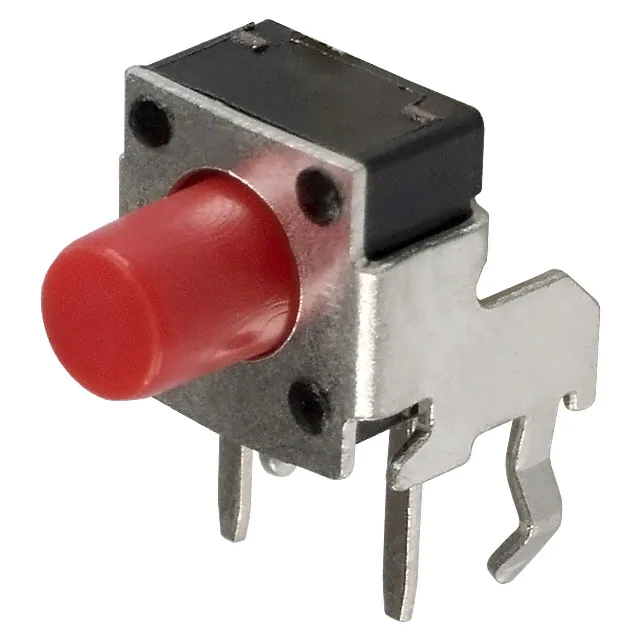

TL1105RF250QSWITCH TACTILE SPST-NO 0.05A 12V |
5,754 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 6.15mm | Side Actuated | PC Pin | 7.10mm x 6.55mm | Non-Illuminated | - | - | 250gf | - | - | -20°C ~ 70°C |
|

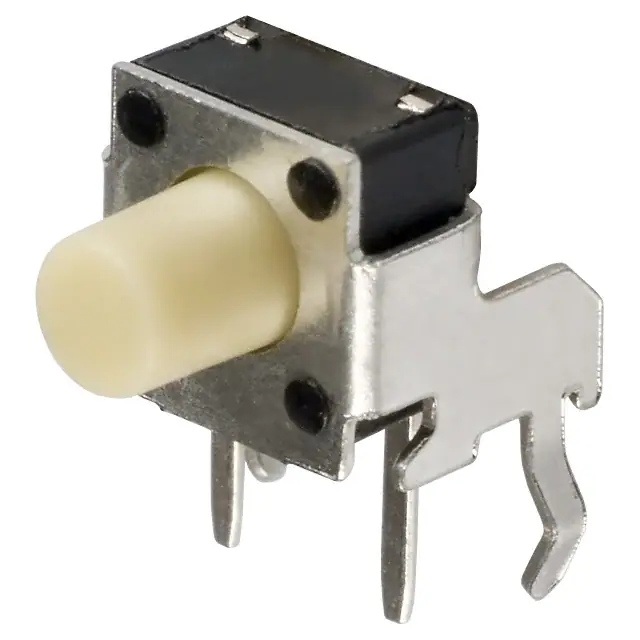

TL1105RF160QSWITCH TACTILE SPST-NO 0.05A 12V |
1,851 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 6.15mm | Side Actuated | PC Pin | 7.10mm x 6.55mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
TL3301EF160QGSWITCH TACTILE SPST-NO 0.05A 12V |
20,464 |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 7.30mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
