Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL1016BAF220QGSWITCH TACTILE SPST-NO 0.05A 12V |
5,754 |
|
Datasheet | TL1016 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | 3.55mm | Side Actuated | Gull Wing | 4.70mm x 2.90mm | - | - | - | 220gf | - | - | -40°C ~ 85°C |
|

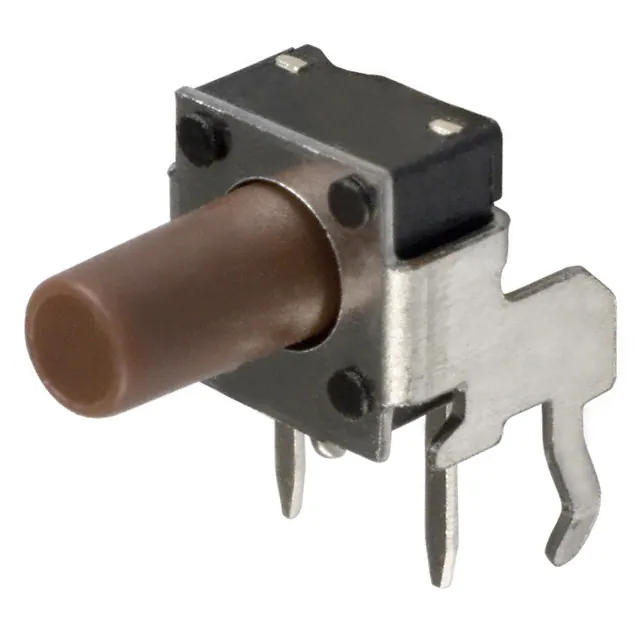

TL1105SF100QSWITCH TACTILE SPST-NO 0.05A 12V |
3,129 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 8.35mm | Side Actuated | PC Pin | 7.10mm x 6.55mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C |
|

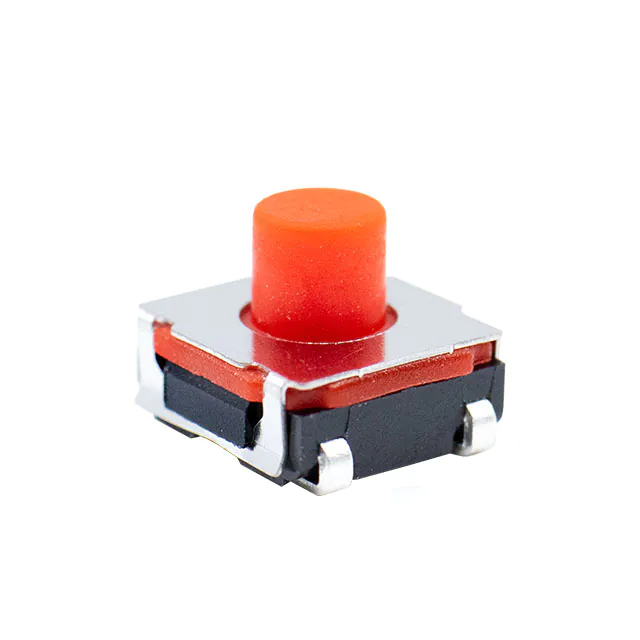

TL3145BF260QJSWITCH TACTILE SPST-NO 0.05A 12V |
2,561 |
|
Datasheet | TL3145 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.20mm | - | Top Actuated | J Lead | 6.45mm x 6.45mm | Non-Illuminated | - | - | 260gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
TL1107BF130WQSWITCH TACTILE SPST-NO 0.05A 12V |
34,218 |
|
Datasheet | TL1107 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 3.50mm | Non-Illuminated | - | - | 130gf | - | Tactile Feedback | -20°C ~ 70°C |
|

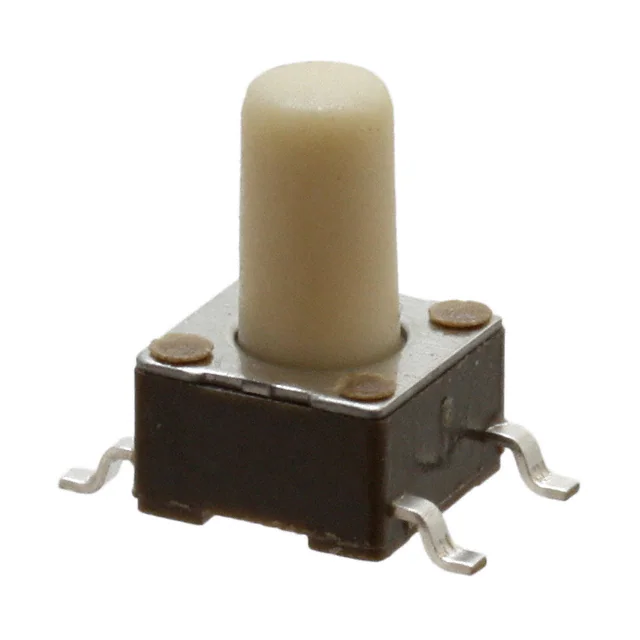

TL3301BF260QGTUBESWITCH TACTILE SPST-NO 0.05A 12V |
7,935 |
|
Datasheet | TL3301 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 9.50mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|

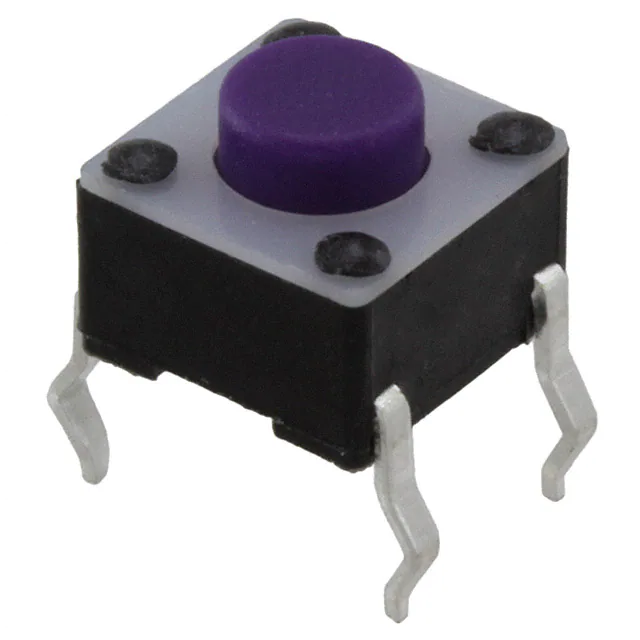

LL1105AF065QSWITCH TACTILE SPST-NO 0.05A 12V |
6,040 |
|
Datasheet | LL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 65gf | - | - | -20°C ~ 70°C |
|
TL1107AF130WQSWITCH TACTILE SPST-NO 0.05A 12V |
5,478 |
|
Datasheet | TL1107 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 3.50mm | Non-Illuminated | - | - | 130gf | - | Tactile Feedback | -20°C ~ 70°C |
|
TL1107AF180WQSWITCH TACTILE SPST-NO 0.05A 12V |
4,724 |
|
Datasheet | TL1107 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 3.50mm | Non-Illuminated | - | - | 180gf | - | Tactile Feedback | -20°C ~ 70°C |
|

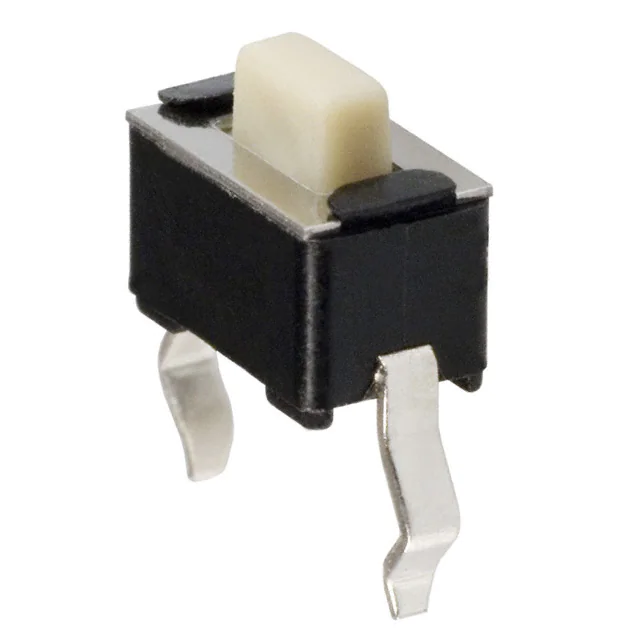

TL1107BF180WQSWITCH TACTILE SPST-NO 0.05A 12V |
3,914 |
|
Datasheet | TL1107 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 3.50mm | Non-Illuminated | - | - | 180gf | - | Tactile Feedback | -20°C ~ 70°C |
|
TL1107AF260WQSWITCH TACTILE SPST-NO 0.05A 12V |
2,580 |
|
Datasheet | TL1107 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 3.50mm | Non-Illuminated | - | - | 260gf | - | Tactile Feedback | -20°C ~ 70°C |
