Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

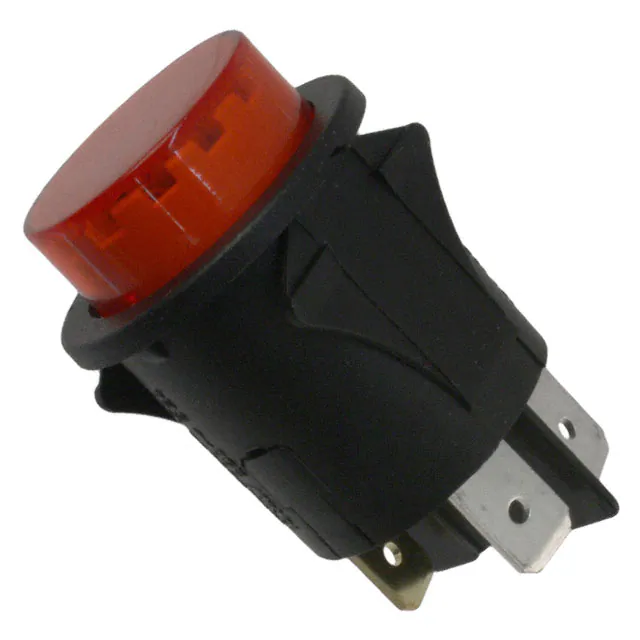

PR141C1000-116SWITCH PUSHBUTTON SPST 16A 125V |
353 |
|
Datasheet | PR1, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST | Off-On | 16A (AC) | 125 V | - | Round, Button | No Marking | Red | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 25.00mm Dia | -20°C ~ 105°C |
|
PA414C1100SWITCH PUSH SPST-NO 16A 125V |
1,886 |
|
Datasheet | PA4, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Rectangular, Button | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.00mm x 13.00mm | -20°C ~ 65°C |
|

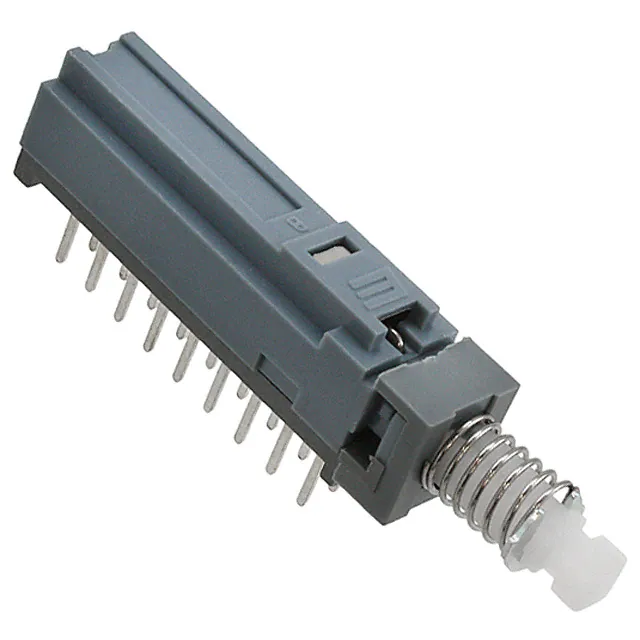

PBH6UEENAGXSWITCH PUSH 6PDT 0.1A 30V |
839 |
|
Datasheet | PBH | Bulk | Active | Through Hole, Right Angle | Standard | 6PDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
|

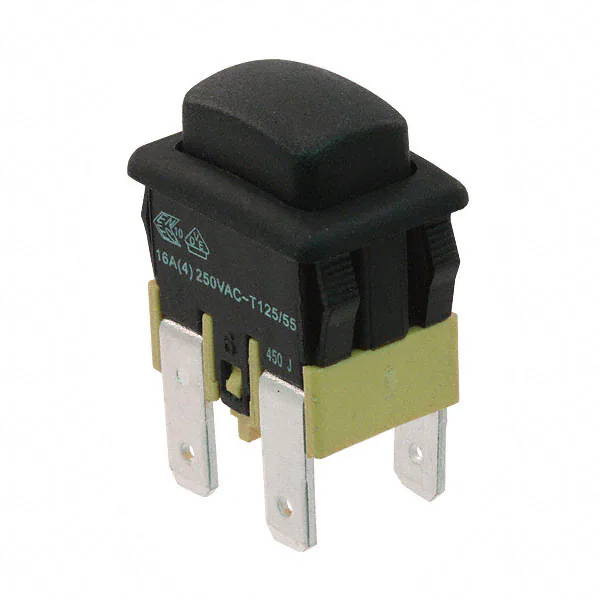

PA41EC1100SWITCH PUSH DPST-NO 16A 125V |
4,052 |
|
Datasheet | PA4, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard | DPST-NO | Off-Mom | 16A (AC) | 125 V | - | Rectangular, Button | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.00mm x 13.00mm | -20°C ~ 65°C |
|
RP3502MAYELSWITCH PUSH SPST-NO 3A 120V |
504 |
|
Datasheet | RP3502 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 3A (AC) | 120 V | - | Round, Button | No Marking | Yellow | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | -20°C ~ 65°C |
|
PA412C1100SWITCH PUSH DPST 16A 125V |
1,959 |
|
Datasheet | PA4, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard | DPST | Off-On | 16A (AC) | 125 V | - | Rectangular, Button | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.00mm x 13.00mm | -20°C ~ 65°C |
|

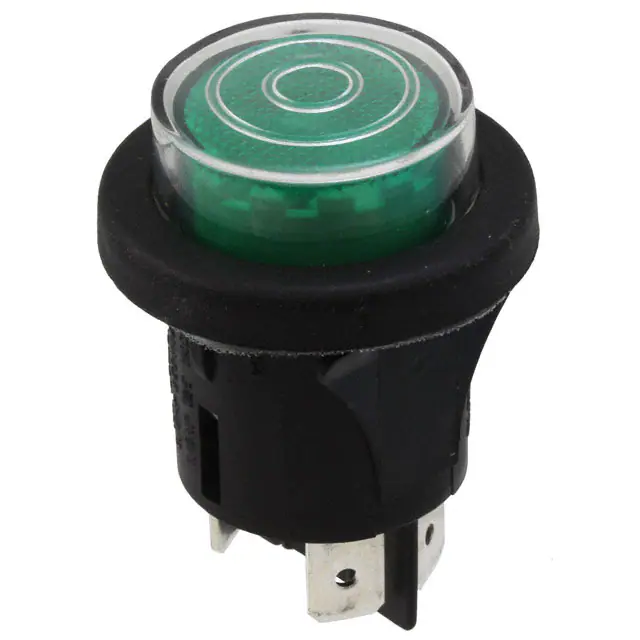

PR14EC1000-136/ACC-F03-1SWITCH PUSH DPST-NO 16A 125V |
711 |
|
Datasheet | PR1, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST-NO | Off-Mom | 16A (AC) | 125 V | - | Round, Button | No Marking | Green | Neon, Green | 125 VAC | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | PVC Cap and Frame | Circular - 25.00mm Dia | -20°C ~ 105°C |
|
PA412C1000-136SWITCH PUSH DPST 16A 125V |
2,183 |
|
Datasheet | PA4, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST | Off-On | 16A (AC) | 125 V | - | Rectangular, Button | No Marking | Green | Neon, Green | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.00mm x 13.00mm | -20°C ~ 65°C |
|
RP3502BBLKSWITCH PUSH SPST-NC 3A 120V |
435 |
|
Datasheet | RP3502 | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 3A (AC) | 120 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | -20°C ~ 65°C |
|

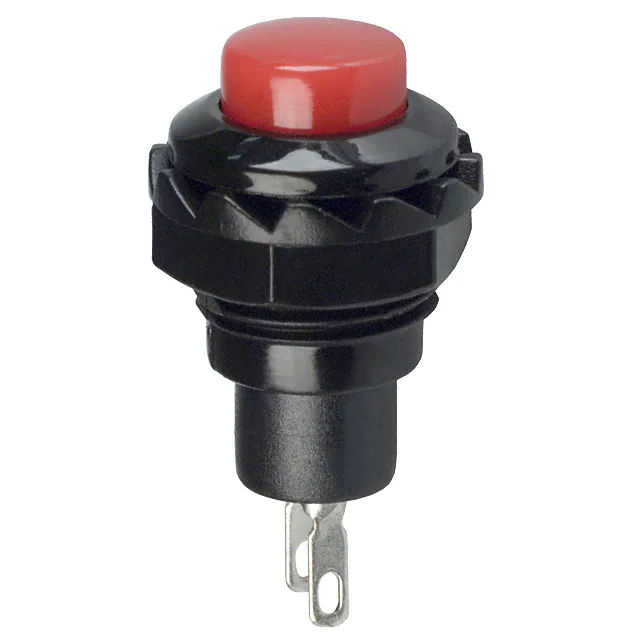

RP3502BREDSWITCH PUSH SPST-NC 3A 120V |
198 |
|
Datasheet | RP3502 | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 3A (AC) | 120 V | - | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | -20°C ~ 65°C |
