Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

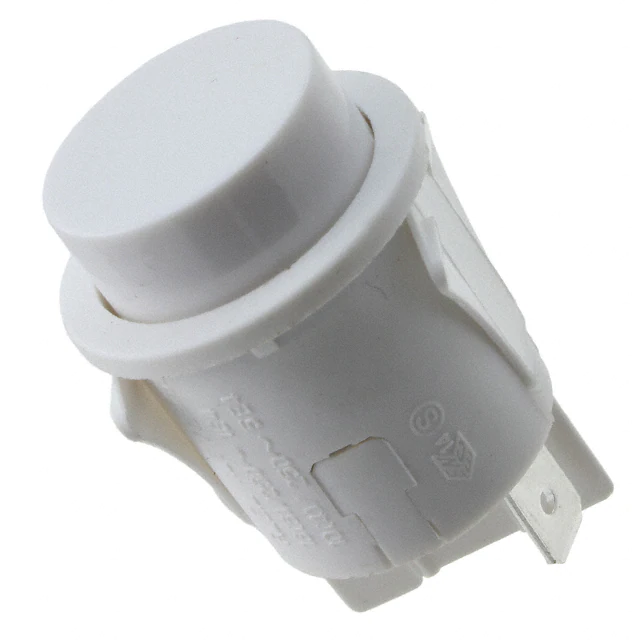

PR144C2200SWITCH PUSH SPST-NO 16A 125V |
495 |
|
Datasheet | PR1, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Round, Button | No Marking | White | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 25.00mm Dia | -20°C ~ 105°C |
400xxQX.jpg)
|
PB400OAQXSWITCH PB DPST 3A 30V |
404 |
|
Datasheet | PB400 | Bulk | Active | Through Hole, Right Angle | Standard | DPST-NO | Off-Mom | 3A (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -5°C ~ 60°C |
|
PS1023AREDSWITCH PUSH SPST-NO 3A 125V |
1,653 |
|
Datasheet | PS1023 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 12.20mm Dia | -20°C ~ 65°C |
|
|
PB400EEQXSWITCH PB DPST 3A 30V |
520 |
|
Datasheet | PB400 | Bulk | Active | Through Hole, Right Angle | Standard | DPST | Off-On | 3A (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -5°C ~ 60°C |
|
PBH4UEENAGXSWITCH PUSH 4PDT 0.1A 30V |
2,570 |
|
Datasheet | PBH | Bulk | Active | Through Hole, Right Angle | Standard | 4PDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
|

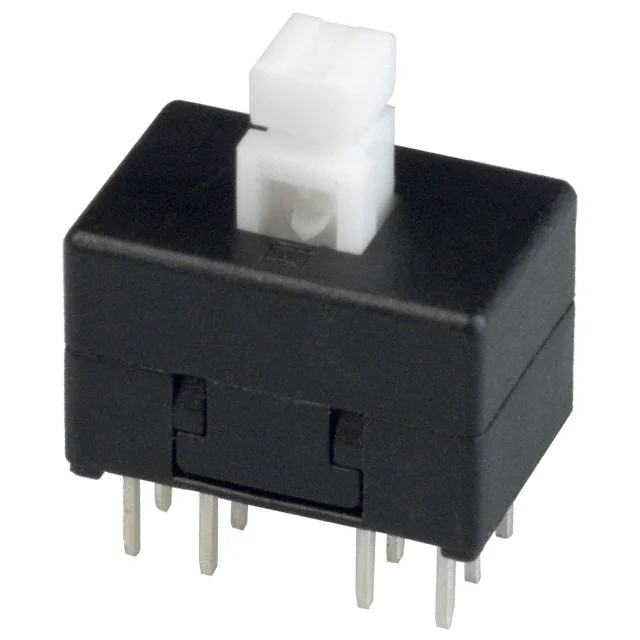

TL4201EEYASWITCH PUSH 4PDT 0.1A 30V |
845 |
|
Datasheet | TL4201 | Bulk | Active | Through Hole | Standard | 4PDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|

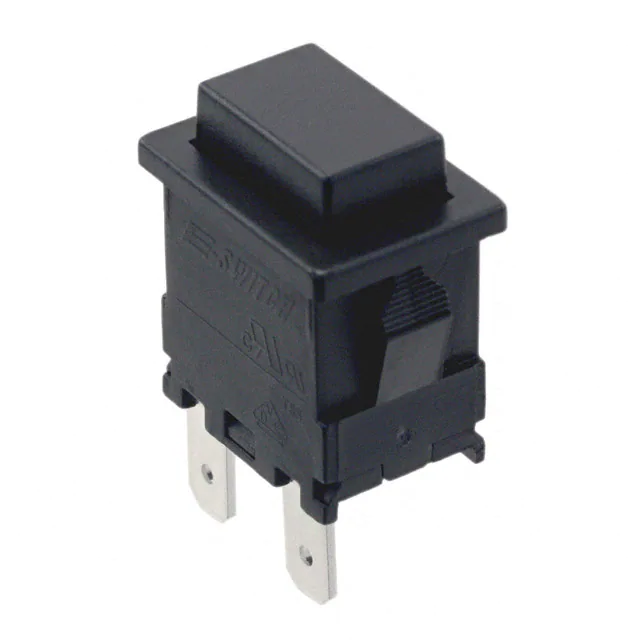

PB1973ABLKBLKEF0SWITCH PUSH SPST 15A 250V |
883 |
|
Datasheet | PB1973 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST | On-Off | 15A (AC), 10A (DC) | 250 V | 125 V | Rectangular, Button | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 13.00mm | -10°C ~ 55°C |
|
PS1040AREDSWITCH PUSH SPST-NO 3A 125V |
1,260 |
|
Datasheet | PS1040 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 12.40mm Dia | -20°C ~ 65°C |
|

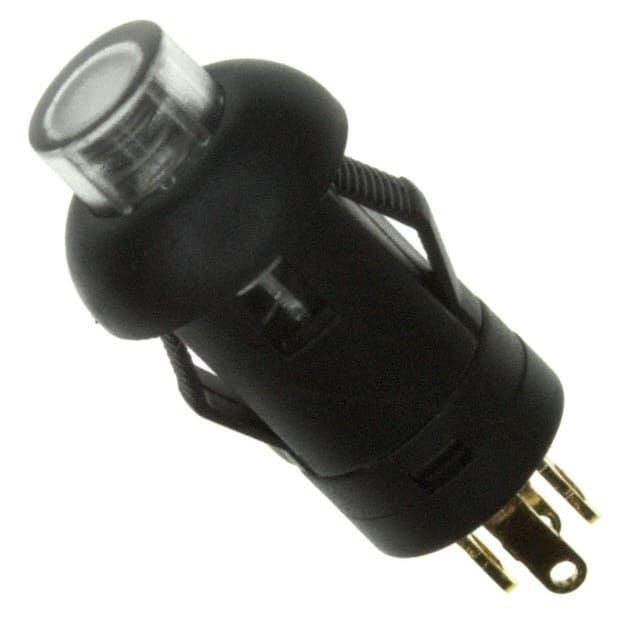

LP1OA1ABSWITCH PUSH SPST-NO 0.1A 30V |
5,424 |
|
Datasheet | LP1 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, Blue | 3.7 VDC | Solder Lug | - | - | Circular - 8.00mm Dia | -40°C ~ 85°C |
|
PB1973BBLKBLKEF0SWITCH PUSH SPST-NO 15A 250V |
316 |
|
Datasheet | PB1973 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 15A (AC), 10A (DC) | 250 V | 125 V | Rectangular, Button | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 13.00mm | -10°C ~ 55°C |
